Hikvision DS-7616NI-M2/16P 16-channel NVR with 16 PoE ports and 8K video support, rack-mounted 1U network video recorder
Hikvision DS-7616NI-M2/16P 16-channel 16 PoE NVR with 8K resolution and 1U rack-mount design, front view of the network video recorder.
Hikvision DS-7616NI-M2/16P 16-channel 8K NVR with 16 PoE ports, 1U rack-mount design, front view of the network video recorder
Hikvision DS-7616NI-M2/16P 16-channel NVR with PoE ports and 8K resolution, 1U rack-mount design, front view of device
Hikvision DS-7616NI-M2/16P 16-channel NVR with 16 PoE ports and 8K video support in a 1U rack-mount enclosure
By Hikvision

Hikvision DS-7616NI-M2/16P 16 Channel 16 PoE 8K 1U NVR

16 in stock
SKU: DS-7616NI-M2/16P
$928.50
？Help me pick a ip camera
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 16-channel network video recorder — connect up to 16 IP cameras simultaneously for full coverage of your property
  • Records in ultra-high 32MP resolution — capture every license plate and facial detail with crystal clarity
  • Built-in 16-port PoE switch — power your cameras directly from the NVR, no extra switch or wiring needed
  • Dual HDD bays support up to 32TB total storage — keep weeks of footage without constant overwriting
  • Smart H.265+ compression saves up to 75% storage compared to H.264 — lower hard drive costs without sacrificing quality
  • Free remote viewing via Hik-Connect app — check live feeds and playback from anywhere on your phone or tablet
  • Works with all ONVIF-compliant IP cameras — mix and match brands without compatibility headaches
View details

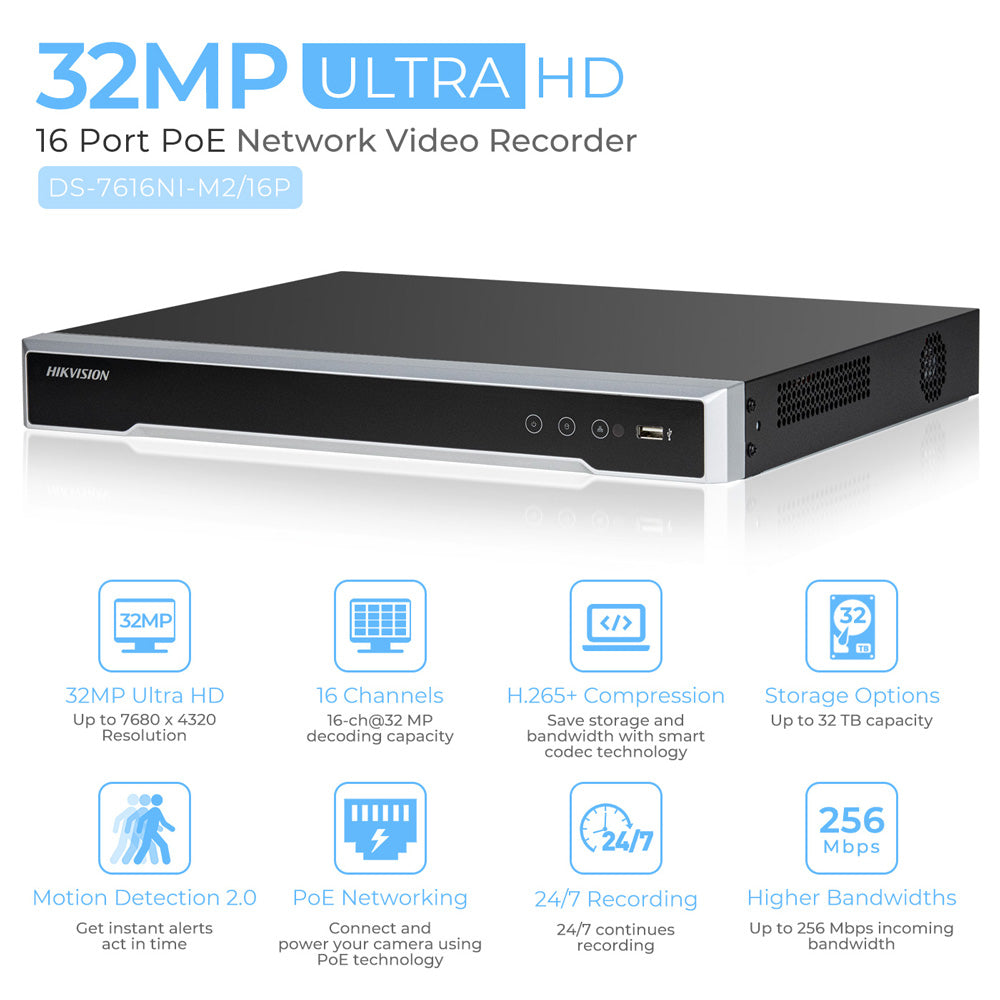

Hikvision 16 Channel 8K PoE NVR — DS-7616NI-M2/16P

DS-7616NI-M2_16P details_h2_image1
DS-7616NI-M2_16P 1_1

Record in 8K Clarity — 32MP Resolution

This Hikvision 16 channel NVR records in 32MP resolution — that's 8K ultra-HD. Every detail from license plates to facial features is captured sharp and clear. Whether you're monitoring a warehouse, retail store, or office building, you get forensic-level video quality that makes identification easy.

DS-7616NI-M2_16P 2_2

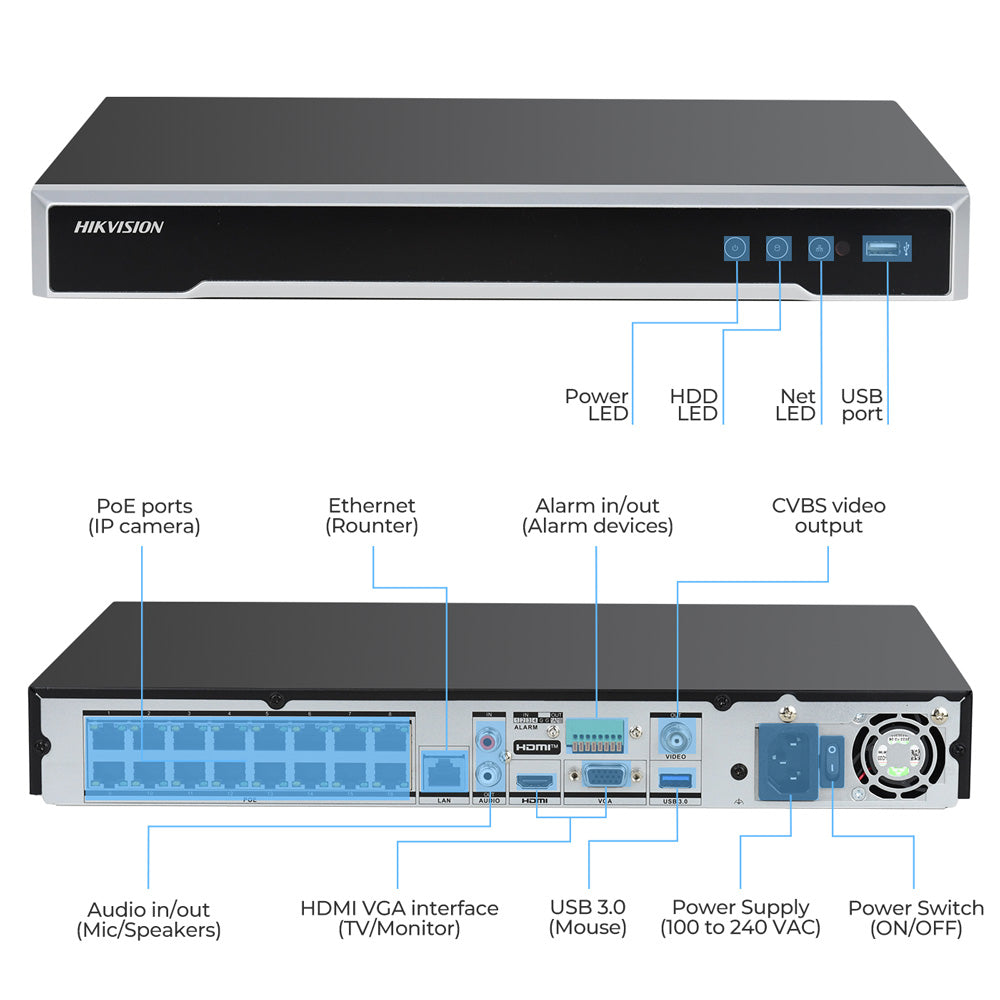

16 PoE Ports — Plug and Record Instantly

Forget external switches and messy cabling. This NVR 16 channel model has 16 built-in PoE ports that power and connect your cameras over a single Ethernet cable. Total incoming bandwidth reaches 256 Mbps, so all 16 channels can stream high-resolution video simultaneously without lag.

DS-7616NI-M2_16P 3_3

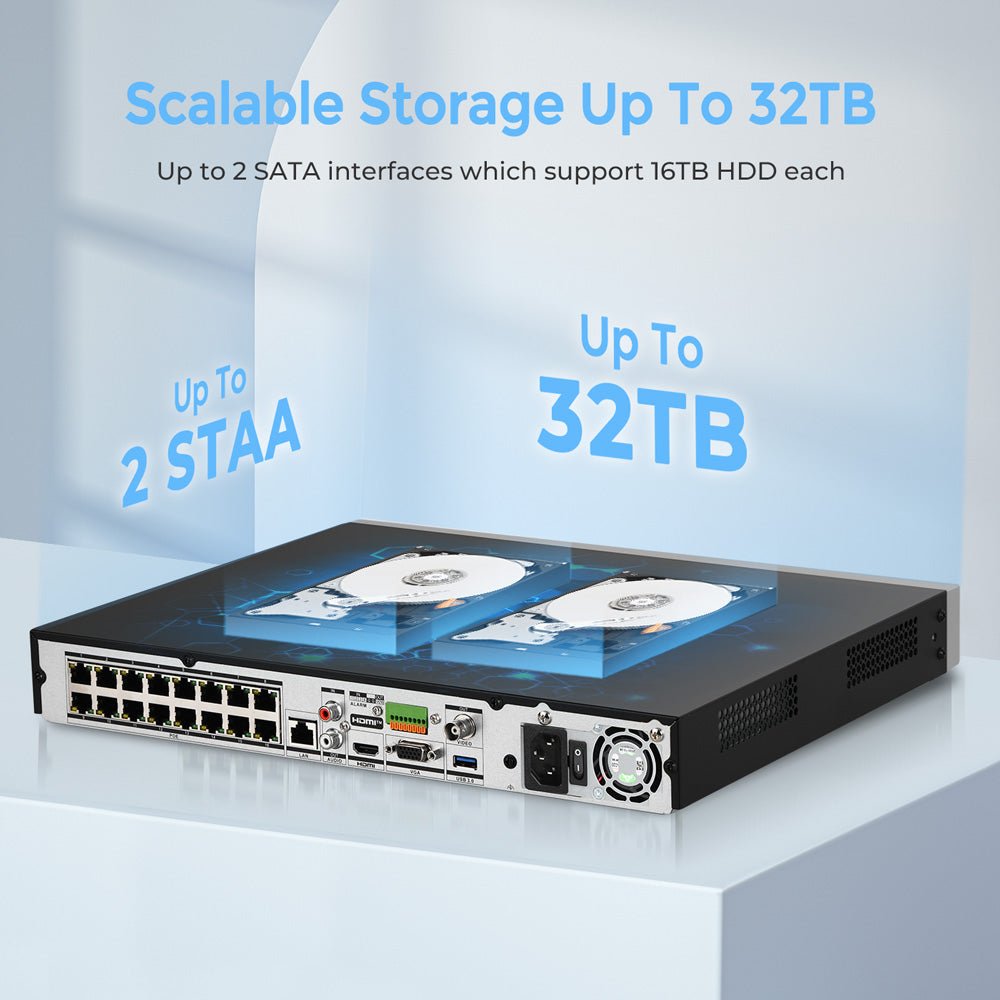

Dual HDD Bays — Up to 32TB Local Storage

Store weeks or months of footage with dual SATA bays supporting up to 16TB per drive — 32TB total. Smart H.265+ compression slashes storage needs by up to 75% compared to H.264, so you keep more recordings without buying extra hard drives. Perfect for high-traffic environments where long retention is critical.

DS-7616NI-M2_16P 4_4

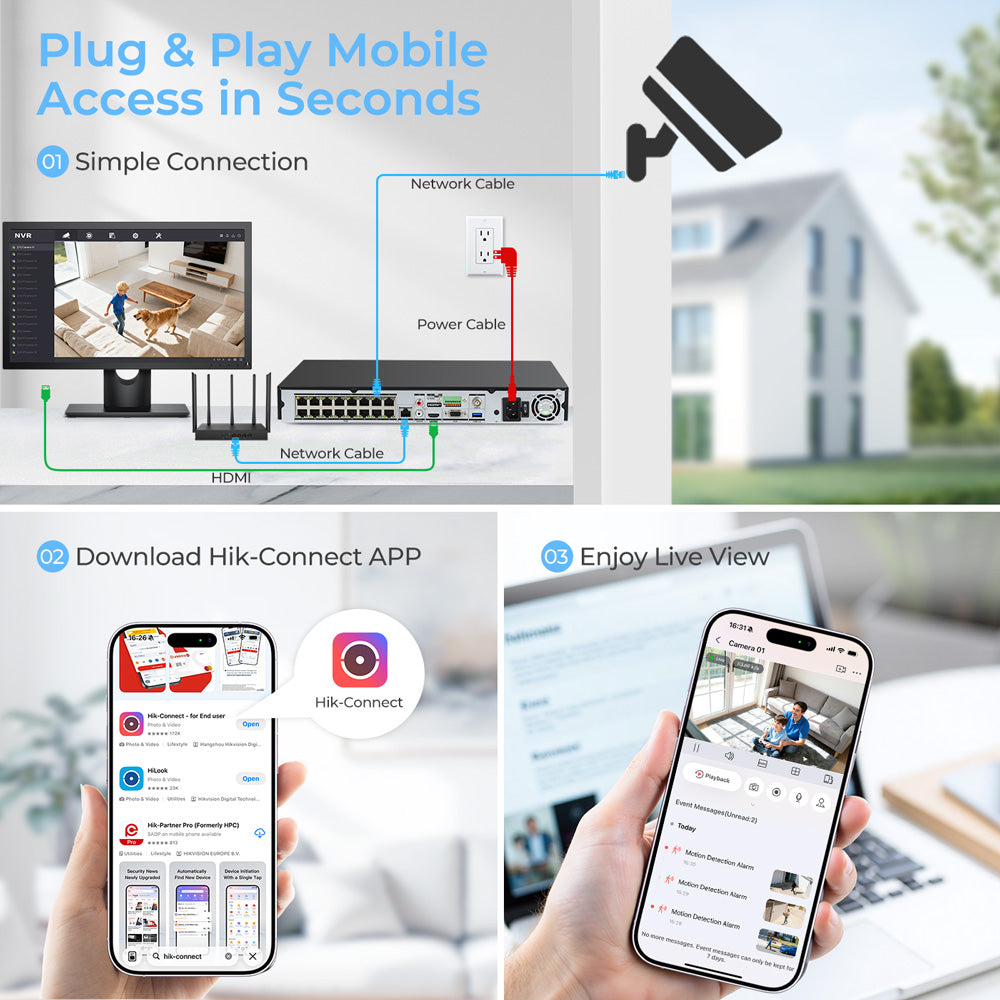

Free Remote Access — Hik-Connect App Included

Monitor your property from anywhere using the free Hik-Connect app. No monthly fees, no hidden charges. Live view, playback, and event alerts are all available on your smartphone or tablet. The NVR also supports ONVIF-compliant cameras, so you can mix and match brands without compatibility headaches.

Complementary products

Product title
$12.34
Product title
$12.34
Product title
$12.34
Product title
$12.34

Specification

Video and Audio

IP Video Input 16-ch Up to 32 MP resolution \*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output 1920 × 1080/60Hz
Video Output Mode HDMI/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF \*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network

Remote Connection 128
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol ONVIF(Version 2.5), RTSP

PoE

Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Standard IEEE 802.3 af/at

Auxiliary Interface

SATA 2 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Alarm In/Out 4/1
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
≤ 3 kg (without HDD, 2.2 lb.)

Certification

FAQ

How many cameras can this 16 channel NVR support?

This NVR supports up to 16 IP cameras simultaneously. It has 16 built-in PoE ports, so you can connect and power all cameras directly without an external switch.
What is the maximum storage capacity of this NVR?

The NVR has two SATA HDD bays, each supporting up to 16TB, for a total of 32TB of local storage. Smart H.265+ compression helps you store more footage in less space.
Can I use this NVR with non-Hikvision cameras?

Yes. This NVR supports ONVIF-compliant IP cameras from any brand. You can mix Hikvision cameras with third-party models as long as they meet ONVIF standards.
Do I need a separate PoE switch for this NVR?

No. The NVR has 16 built-in PoE ports that provide both data and power to your cameras. No extra switch or power injectors are needed.
