One Camera, Many Viewing Angles
A fixed camera records the same frame every second of the day. A Hikvision PTZ camera lets an operator redirect that frame on demand—rotating horizontally, adjusting the vertical angle, and changing the focal length through the camera's optical assembly.
Optical zoom on supported models ranges from 25× to 42×. Because the lens elements physically move, the sensor captures new detail at each zoom step rather than enlarging existing pixels the way digital zoom does. The practical reading distance for a plate or a face depends on the zoom position, the target's angle to the camera, available light, shutter settings, and whether the subject is moving.
The Hikvision PTZ Range
The lineup spans several distinct use profiles:

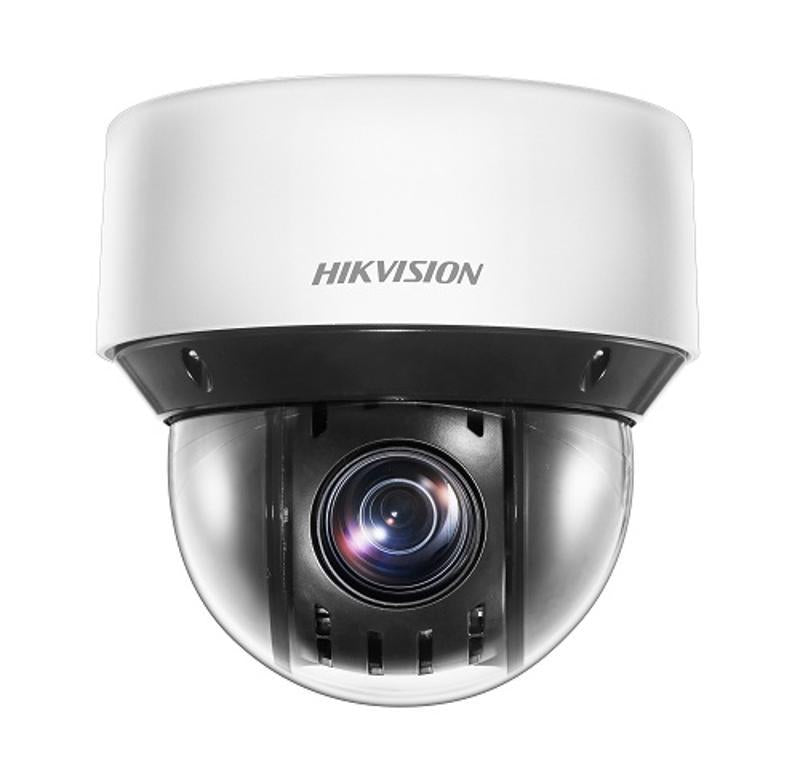

- Compact indoor PTZ units for conference rooms, lobbies, retail interiors, and classrooms

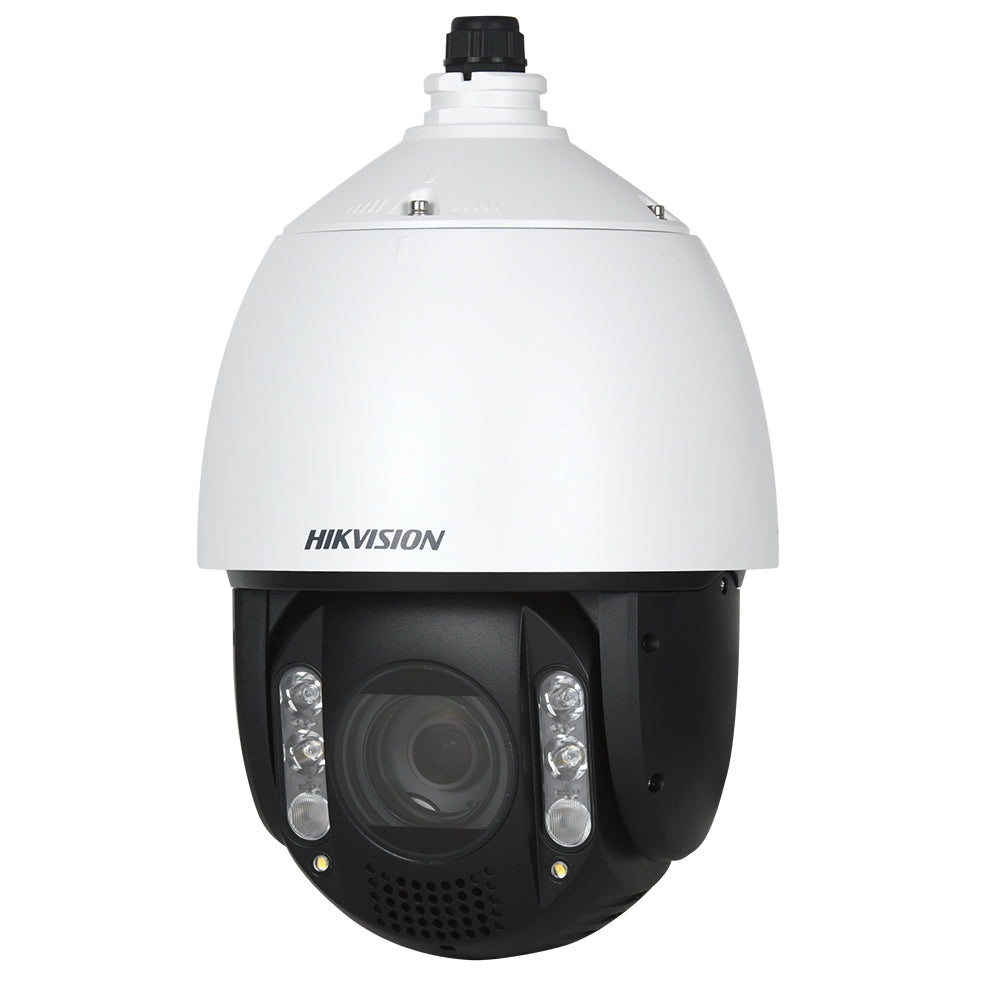

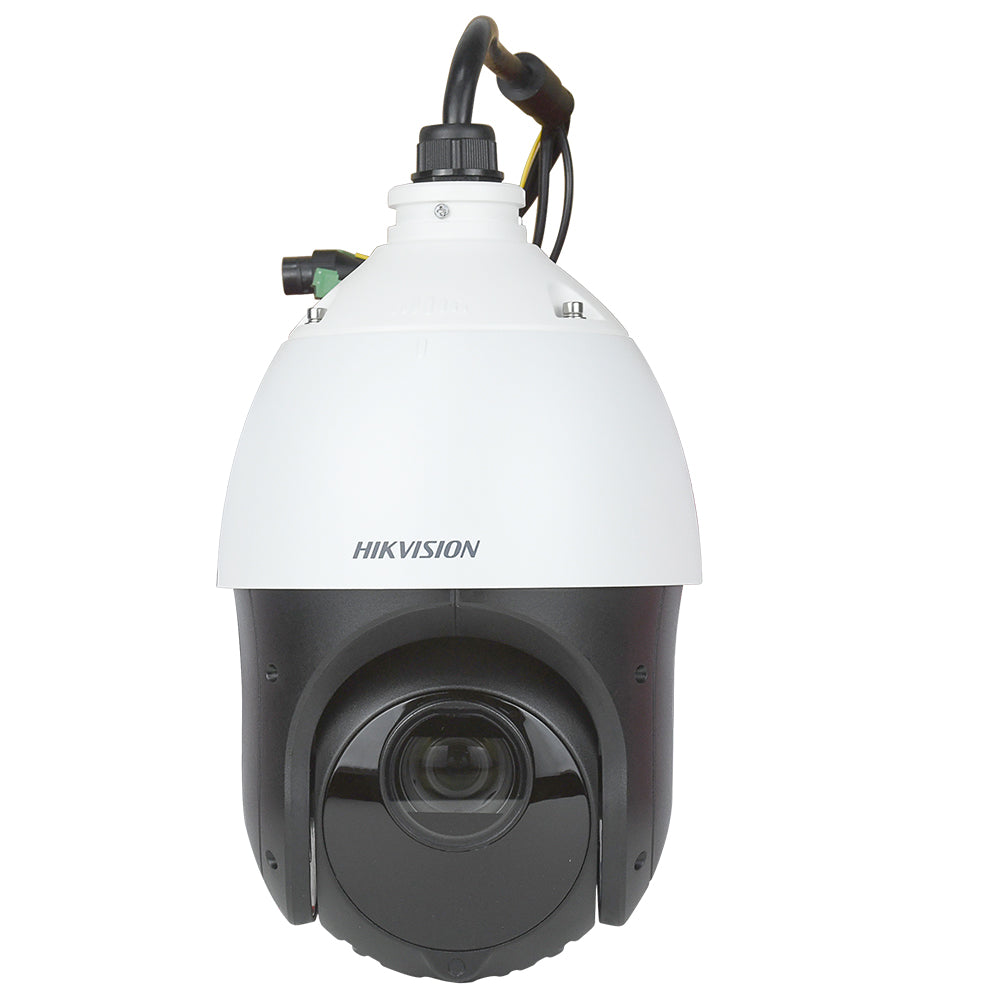

- Mid-range outdoor domes for courtyards, loading areas, and building surrounds

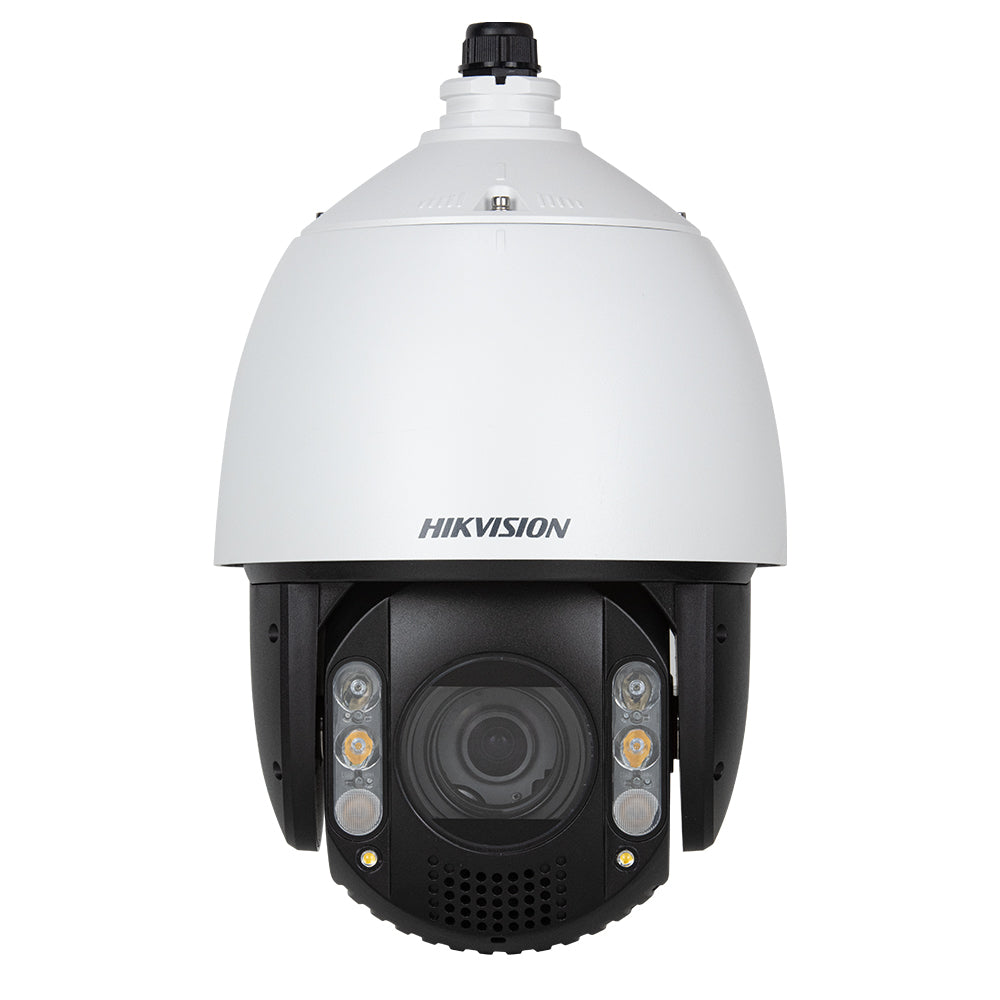

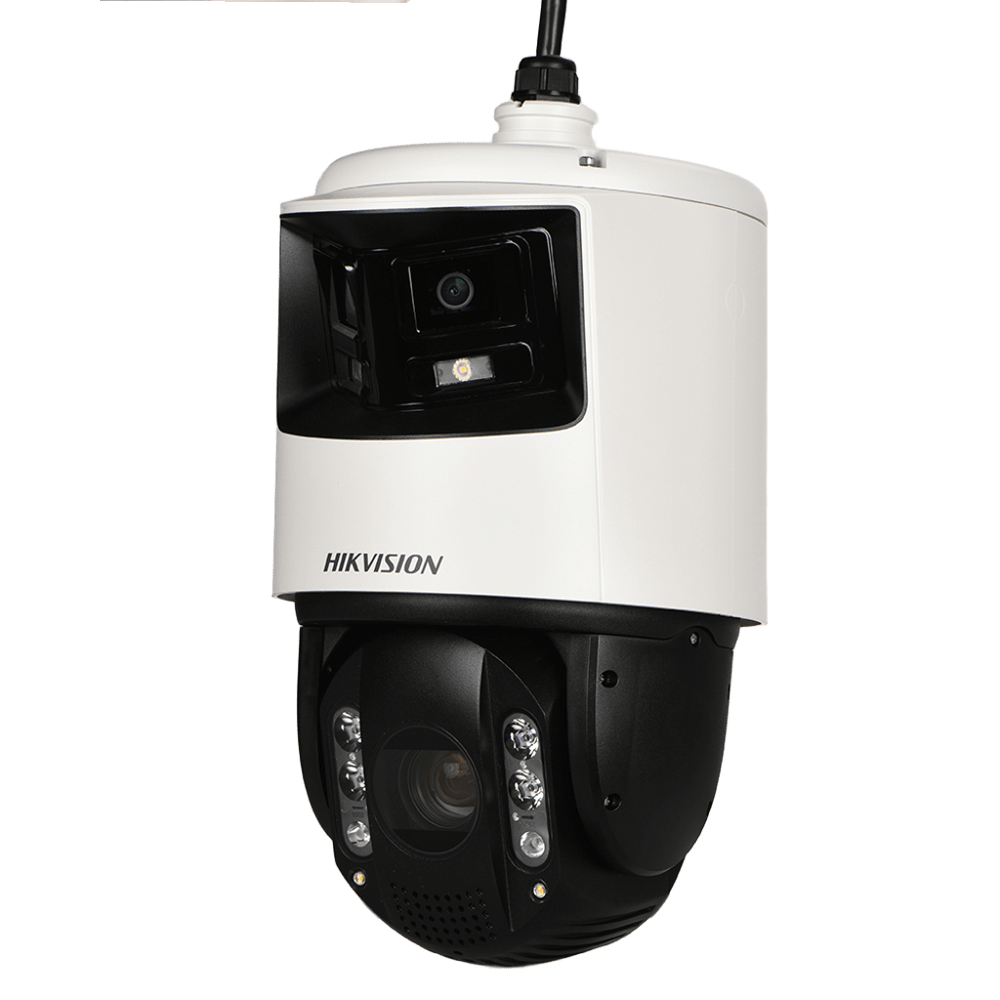

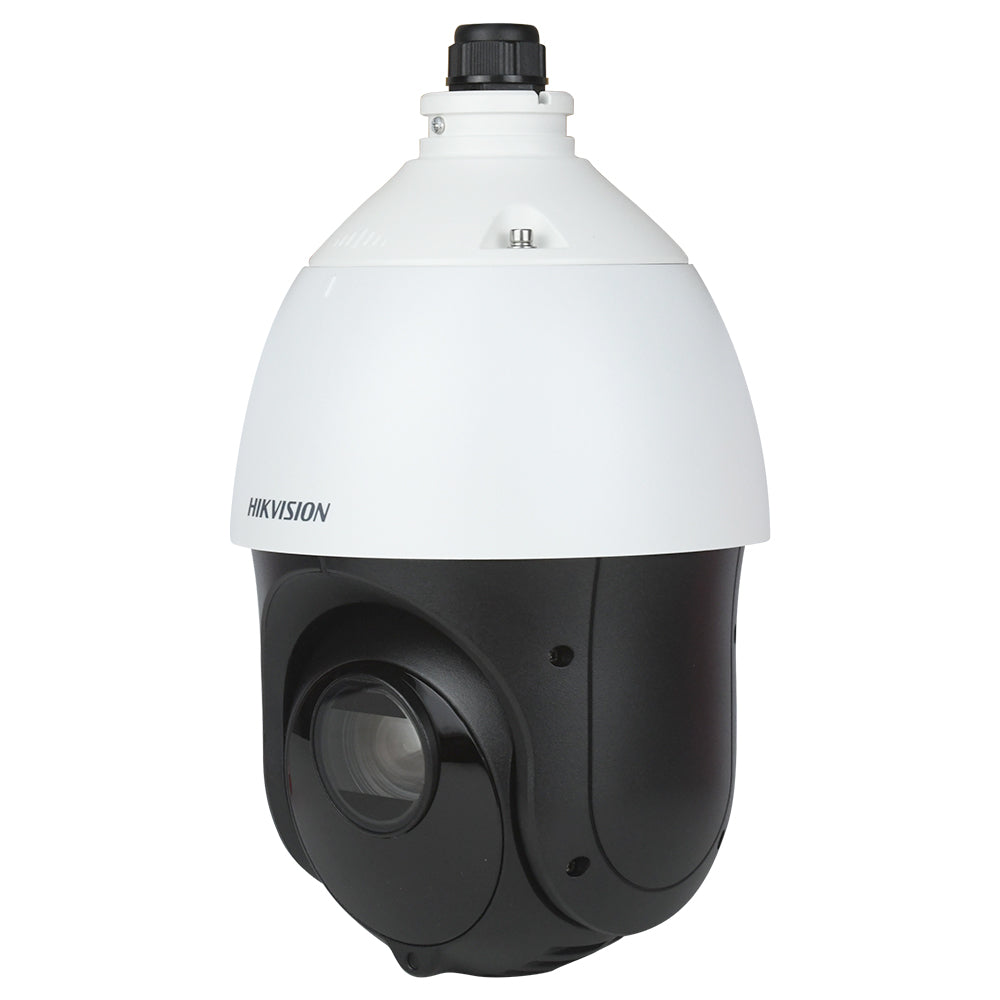

- Long-range speed domes with extended optical zoom for large yards, roadways, and open perimeters
- Ruggedized models with weather and impact ratings for exposed installations
Environmental protection ratings such as IP67 apply to specific models, not the entire series. Confirm the rating on each product's specification sheet before installing in an exposed location.
How Operators Actually Use PTZ
PTZ value comes from how the camera is programmed, not only from its zoom figure. Supported models typically offer:
- Preset positions — saved pan, tilt, and zoom combinations an operator can recall instantly, such as a gate, a dock door, or a cash office
- Patrol and tour routes — automatic cycling through a sequence of presets so an unattended camera still covers multiple points of interest
- Event-triggered movement — the camera moves to a preset when an alarm input, motion rule, or integrated device reports an event
- Manual override — operators take direct control from the NVR, client software, or mobile app during an active incident
Available control functions, tour capacity, and integration behavior vary by model, firmware, and recording platform.
Where PTZ Beats Adding More Fixed Cameras
PTZ makes the most sense on sites with large open areas that would otherwise require many fixed cameras to cover at usable detail:
- Parking lots and multi-level garages
- Shipping yards and container areas
- Public plazas and campus greens
- Stadium seating bowls and outdoor venues
- Industrial perimeters and storage compounds
One consideration to plan around: a PTZ camera records only where it is currently pointed. Sites that need guaranteed continuous coverage of specific doors or lanes typically pair PTZ cameras with fixed cameras rather than replacing them entirely.
