Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Camera with 4X Optical Zoom

SKU: DS-2DE2A404IW-DE3
Price shown is for reference only. Contact us for the final price.
$324.50

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 4MP Ultra HD clarity (2560 × 1440) captures crisp, detailed video for home and business
  • 4X optical zoom (2.8-12mm) with 16X digital zoom for flexible area coverage
  • 355° pan and 90° tilt with smooth 100°/s speed for wide coverage and minimal blind spots
  • 300 programmable presets for instant one-click patrol and precise remote positioning
  • Built-in microphone for real-time audio monitoring — no extra hardware needed
  • 120dB True WDR delivers clear images even against strong backlight conditions
  • IP66 weatherproof and IK10 vandal-proof housing built to withstand the elements
Datasheet Link
View details

Details

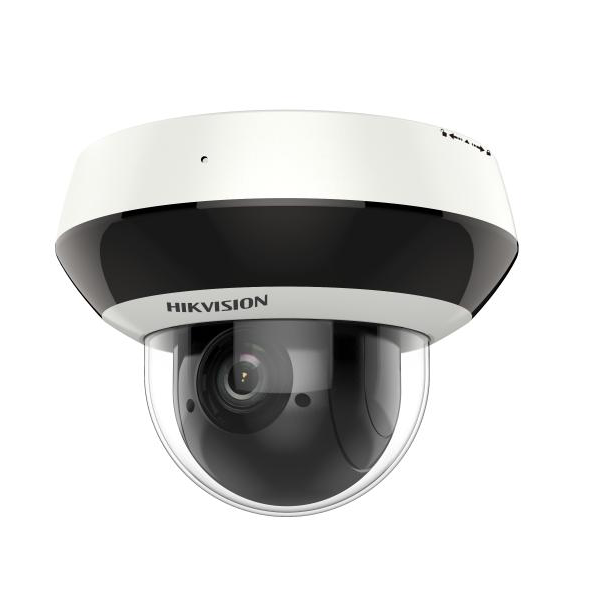

Compact 4 MP PTZ Surveillance with 4× Optical Zoom

The Hikvision DS-2DE2A404IW-DE3(S6)(C) is a discreet 4 MP 4× IR Network PTZ Camera designed for indoor and sheltered commercial surveillance, including retail stores, offices, corridors, and reception areas. Powered by a 1/2.8" progressive scan CMOS sensor, it captures sharp 2.5K QHD video (2560 × 1440 @ 25/30 fps) with motorized 4× optical zoom (2.8 mm to 12 mm) and 16× digital zoom, providing versatile wide-angle and close-up views in a compact mini-dome footprint.

DarkFighter Low-Light Clarity and Audio Monitoring

Equipped with Hikvision DarkFighter technology, the camera ensures superior color performance down to 0.005 Lux before switching to smart infrared illumination with a range of up to 20 meters. A true 120 dB WDR system ensures balanced exposure in spaces with strong backlighting or glass entryways.

  • Integrated Audio Capture: Built-in microphone with environmental noise filtering captures clear audio within a 5-meter radius, complemented by 1 audio input and 1 audio output.
  • Smart Event Detection: Supports face detection, line crossing, intrusion, region entrance/exit, unattended baggage, and audio exception detection.
  • Smooth PTZ Positioning: Features 0° to 355° pan and 0° to 90° tilt with up to 300 presets and proportional panning speed.

Durable Mini-Dome Design and Flexible Installation

Engineered for secure commercial deployment, the camera features an IK10 vandal-proof rating and IP66 weather resistance. It supports direct surface mounting or versatile pendant and wall installations via optional brackets. Power can be supplied via standard PoE (802.3af) or 12 VDC (9.2 W max), while local edge storage supports microSD cards up to 256 GB.

Specification

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 2.8 to 12 mm
FOV Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
Focus Auto, semi-auto, manual
Aperture Max. F1.5
Zoom SpeedApprox. 2 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 20 m
Smart Supplement Light Yes
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 355°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
Tilt Speed Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Park Action Preset
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, dome reboot, dome adjust
Power -off MemoryYes
Video
Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ＞52dB
Defog Digital Defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone, picking up sounds in the radius up to 5 meters
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Power Output12 VDC, max. 60 mA
General
Power 12 VDC, Max. 9.2 W; PoE (802.3af)
Dimension Ø 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
Approx. 530 g (1.17 lb.)
Operating Condition- 20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection

FAQ

How does the 4X optical zoom help with outdoor security camera placement?

The 2.8-12mm motorized lens lets you zoom in on details like license plates or faces without losing clarity. You can adjust the field of view remotely to cover different areas.
What does the built-in microphone do?

It captures audio in real time, so you can hear what's happening near the camera. This is useful for verifying alarms or monitoring activity without buying a separate audio device.
What mounting options are supported?

The camera can be directly surface-mounted onto flat ceilings out of the box using its base mounting holes. For wall or drop-ceiling installations, optional accessories such as the DS-1294ZJ-PT wall mount or DS-1297ZJ / DS-1299ZJ pendant extension brackets are available.
Can I control the pan and tilt remotely?

Yes. You can pan 355° and tilt 90° at up to 100°/s using the Hik-Connect app or your NVR. You can also set up to 300 preset positions for quick one-click patrols.
