Hikvision DS-2CD2146G2H-ISU 4MP dome security camera with built-in microphone and PoE connectivity, mounted indoors.
Hikvision DS-2CD2146G2H-ISU 4MP dome security camera with built-in microphone and PoE connectivity
By Hikvision

Hikvision DS-2CD2146G2H-ISU 4MP AcuSense Dome PoE Security Camera with Built-in Mic

4 in stock
SKU: DS-2CD2146G2H-ISU
$359.00
？Help me pick a ip camera
Color
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 4MP Super HD (2688×1520) at 30 fps — sharp, clear footage day and night
  • AcuSense AI — smart human and vehicle detection cuts false alerts from animals or leaves
  • Built-in microphone captures audio in real time; no extra hardware needed
  • 120dB True WDR handles strong backlight — clear images even with bright windows or headlights
  • 30m IR night vision delivers reliable black-and-white footage in total darkness
  • IP67 weatherproof and IK10 vandal-resistant — built for outdoor and high-risk areas
  • Supports up to 512GB microSD card for weeks of local storage without an NVR
View details

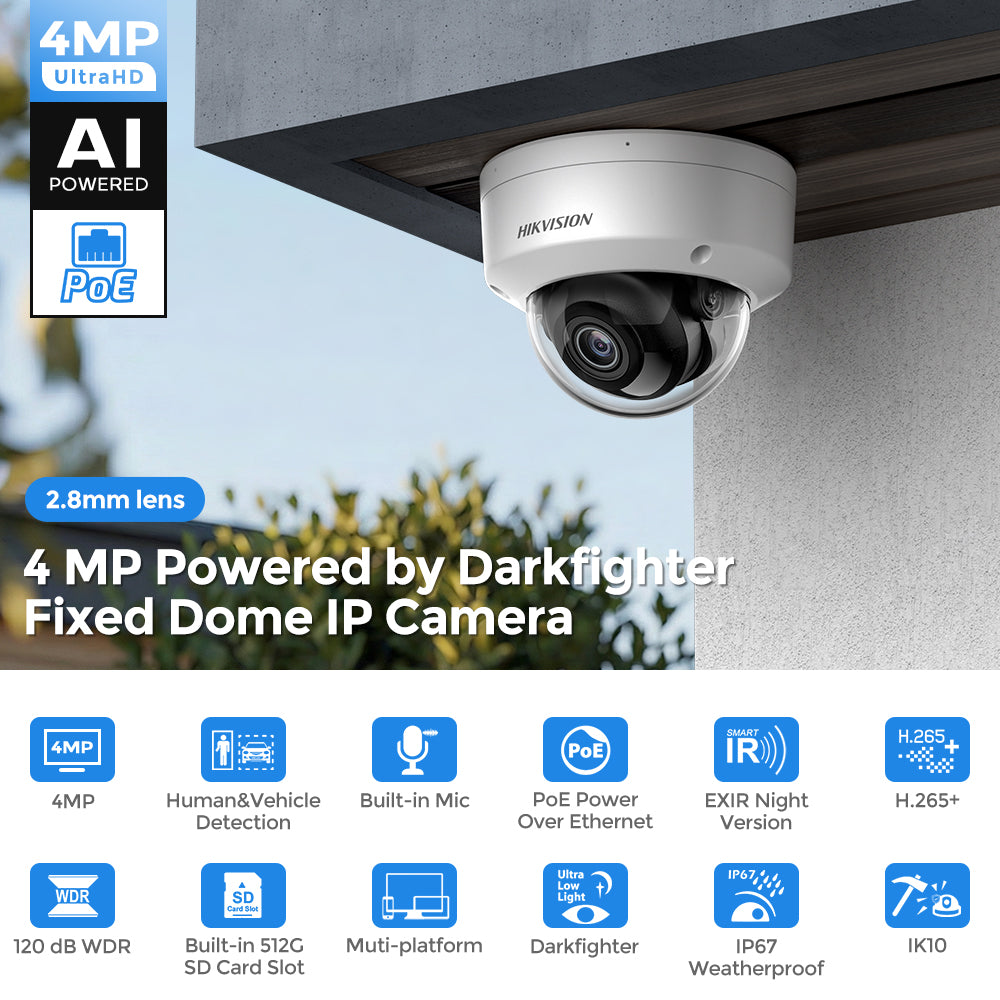

4MP AcuSense Dome Camera with Built-in Microphone

DS-2CD2146G2H-ISU details_h2_image1
DS-2CD2146G2H-ISU 1_1

Sharp Images Even in Harsh Light

Backlit scenes — bright windows, parking lot lights, or direct sun — usually wash out the image. This camera's 120dB True WDR captures detail in both bright and dark areas simultaneously. You see faces, license plates, and objects clearly, not as silhouettes.

DS-2CD2146G2H-ISU 2_2

AI That Filters Out the Noise

Standard motion detection triggers alerts for everything — leaves, rain, animals, passing cars. AcuSense technology classifies humans and vehicles on the camera itself. You only get notified when a person or vehicle enters the scene. Fewer false alarms mean faster response to real threats.

DS-2CD2146G2H-ISU 3_3

Hear What Happens — No Extra Gear Needed

A built-in microphone picks up audio alongside the video feed. You can hear footsteps, voices, or glass breaking in real time. No need to buy or install a separate audio device. Combined with the alarm input/output (1/1), you can also connect external sensors or lights for a complete security setup.

DS-2CD2146G2H-ISU 4_4

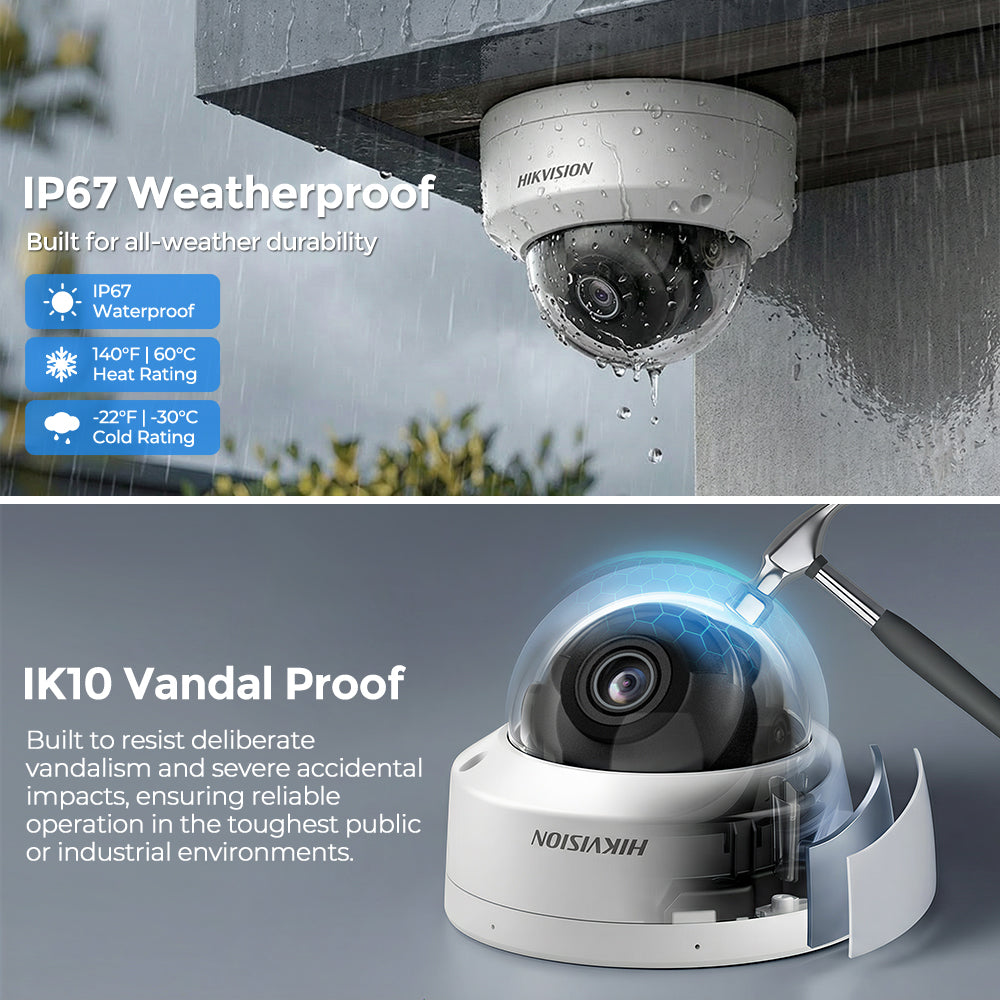

Built Tough for Outdoor Installations

Rated IP67, this dome camera survives rain, dust, and snow. The IK10 vandal-resistant housing withstands impacts and tampering. Aluminum alloy construction handles temperatures from -30°C to 60°C. Flexible power options — 12V DC or PoE (802.3af) — make installation simple with a single cable.

Complementary products

Product title
$12.34
Product title
$12.34
Product title
$12.34
Product title
$12.34

Specification

Camera

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688×1520
Min. Illumination Color: 0.001 Lux@(F1.0,AGC ON),B/W:0 Lux with IR
Shutter Time 1/3s to1/100,000s
Angle Adjustment Pan:0°to355",tilt:0°to75",rotate:0°to355"

Lens

Lens Type Fixed focal lens,2.8 and4mm optional
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8mm:1.9m to∞4mm:2.5m to∞

DORI

DORI 2.8mm:D:63m,O:25m,R:12m,I:6m4mm:D:78m,O:31m,R:15m,I:7m

Illuminator

Supplement Light Type IR
Supplement Light Range Up to30m
Smart Supplement Light Yes
IR Wavelength 850nm

Video

Main Stream 50Hz:25fps(2688×1520,1920×1080,1280×720); 60Hz:30fps(2688×1520,1920×1080,1280×720)
Sub-Stream 50Hz:25fps(1280×720,640×480,640×360); 60Hz:30fps(1280×720,640×480,640×360)
Third Stream 50Hz:10fps(1920×1080,1280×720,640×480,640×360); 60Hz:10fps(1920×1080,1280×720,640×480,640×360)\*Third stream is supported under certain settings.
Video Compression Main stream:H.265/H.264/H.265+/H.264+; Sub-stream:H.265/H.264/MJPEG; Third stream:H.265/H.264\*Third stream is supported under certain settings.
Video Bit Rate 32Kbps to8Mbps
H.264Type Baseline Profile/Main Profile/High Profile
H.265Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding(SVC) H.264andH.265encoding
Region of Interest(ROI) 1fixed region formain stream and sub-stream

Audio

Audio Compression -SU:G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate -SU:64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192Kbps(MP2L2)/8 to 320Kbps(MP3)/16 to 64Kbps(AAC-LC)
Audio Sampling Rate -SU:8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering -SU:Yes

Network

Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCPDNS,DDNS,RTP,RTSP,NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS,PPPoE,SNMP,ARP,WebSocket,WebSockets
Simultaneous Live View Up to6 channels
API Open Network Video Interface(PROFILE S,PROFILE G,PROFILE T),ISAPI,SDK
User/Host Up to32 users.3 user levels:administrator,operator anduser
Security Password protection,complicated password,HHTPS encryption,IP address filter,Security Audit Log,basic and digest authentication for HTTP/HTTPS,TLS1.1/1.2,WSSEand digest authentication for Open Network Video InterfaceNAS(NFS,SMB/CIFS),auto network replenishment(ANR)
Network Storage Together with high-end Hikvision memory card,memory card encryption and health detection are supported.
Client IVMS-4200,Hik-Connect,Hik-CentralPlug-in required live view:IE10,IE11
Web Browser Plug-in free live view:Chrome57.0+,Firefox52.0+,Edge89+Local service:Chrome57.0+,Firefox52.0+,Edge89+


Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range(WDR) 120dB
SNR ≥52dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 4programmable polygon privacy masks

Interface

Ethernet Interface 1RJ4510/M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot,support microSD/microSDHC/microSDXC card,up to512GB
Built-in Microphone -SU:Yes
Audio -SU:1 input(line in),two-core terminal block,max.input amplitude:3.3Vpp,input impedance:4.7KΩ,interface type:non-equilibrium-SU:1 output(line out),two-core terminal block,max.output amplitude:3.3Vpp,output impedance:100Ω,interface type:non-equilibrium
Alarm -SU:1 input,1 output(max.12 VDC,30 mA)
Reset Key Yes

Deep Learning Function

Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types(human and vehicle)

General

Power 12 VDC±25%,0.6A,max.7.2W,Ø5.5mmcoaxial power plug,reverse polarity protection,PoE:IEEE802.3af,Class3,max.8.5W
Material Cover:aluminum alloy,main body:aluminum alloy
Dimension Ø121.5mm×97.6mm(Ø4.8"×3.8")
Package Dimension 150mm×150mm×141mm(5.9"×5.9"×5.6")
Weight Approx.550g(1.2lb.)
With Package Weight Approx.800g(1.8lb.)
Storage Conditions -30℃to60℃(-22℉to140℉).Humidity95%or less(non-condensing)
Startup and Operating Conditions -30℃to60℃(-22℉to140℉).Humidity95%or less(non-condensing)
Language Polish
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

FAQ

Is this camera good for outdoor night surveillance?

Yes. It has 30m IR night vision for clear black-and-white footage in total darkness, plus a 1/3" CMOS sensor with 0.001 Lux minimum illumination for low-light color images.
Does this camera record audio?

Yes, it has a built-in microphone for one-way audio. You can hear what's happening in real time without any extra hardware.
Can I use this camera with a motion sensor light?

Yes. The camera has 1 alarm input and 1 alarm output, so you can connect external sensors or lights and trigger events based on detection.
What is the field of view for this dome camera?

With the 2.8mm lens, it offers a 100.2° horizontal field of view. A 4mm option is also available for a narrower, more focused view.
