Hikvision DS-2DE3A400BW-E(F1)(T5) 4MP ColorVu PTZ Mini Dome PoE Surveillance Camera with zoom lens and night vision
Hikvision DS-2DE3A400BW-E(F1)(T5) 4MP ColorVu PTZ mini dome camera for surveillance with PoE connectivity
Hikvision DS-2DE3A400BW-E(F1)(T5) 4MP ColorVu PTZ mini dome PoE surveillance camera with night vision and pan-tilt-zoom features.
Hikvision DS-2DE3A400BW-E(F1)(T5) 4MP ColorVu PTZ mini dome surveillance camera with PoE for security monitoring
By Hikvision

Hikvision DS-2DE3A400BW-E(F1)(T5) 4MP ColorVu PT Mini Dome PoE Video Surveillance Camera

13 in stock
SKU: DS-2DE3A400BW-E(F1)(T5)
$394.84
？Help me pick a ip camera
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 4MP Ultra HD resolution (2560 × 1440) with 1/1.8" progressive scan CMOS sensor for exceptional low-light clarity
  • Built-in microphone and speaker for real-time audio monitoring — no extra hardware needed
  • 120dB True WDR ensures clear images against strong backlight, even in high-contrast scenes
  • 350° pan and 90° tilt with smooth 60°/s pan speed for wide area coverage and precise remote positioning
  • 300 programmable preset positions for instant one-click patrol and automated monitoring
  • IP66 weatherproof rating — built to withstand rain, dust, and extreme outdoor conditions
  • Power over Ethernet (PoE) simplifies installation with a single cable for power and data
View details

Hikvision 4MP ColorVu PT Mini Dome Camera with WDR

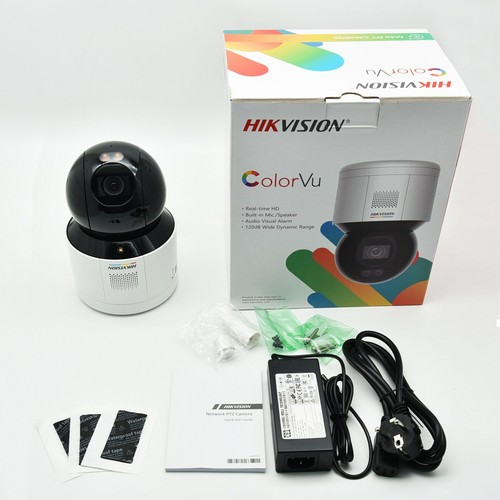

DS-2DE3A400BW-E(F1)(T5) details_h2_image1
DS-2DE3A400BW-E(F1)(T5) 1_1

Exceptional Low-Light Clarity

This Hikvision PTZ camera uses a large 1/1.8" progressive scan CMOS sensor to capture vivid color images even in near darkness. With 120dB True WDR, it handles strong backlight and high-contrast scenes without washing out details. You get usable, clear footage in challenging lighting conditions — day or night.

DS-2DE3A400BW-E(F1)(T5) 2_2

Built-In Audio for Real-Time Monitoring

A built-in microphone and speaker let you hear and talk through the camera without extra add-ons. Use it to greet visitors, warn off intruders, or simply monitor audio alongside video. It supports one audio input and one output for flexible integration with your existing system.

DS-2DE3A400BW-E(F1)(T5) 3_3

Wide Coverage with Smart PTZ Control

The 350° pan and 90° tilt range, combined with a smooth 60°/s pan speed, give you full control over what you see. Program up to 300 preset positions for instant one-click patrols. The camera supports park actions — automatically return to a preset or patrol scan when idle.

DS-2DE3A400BW-E(F1)(T5) 4_4

Simple Installation and Reliable Protection

Power over Ethernet (PoE 802.3at) means a single cable handles both power and data — no separate power outlet needed. The IP66 weatherproof housing protects against rain, dust, and extreme temperatures, making it suitable for outdoor use. Local storage up to 512GB via microSD card keeps footage secure on-site.

Complementary products

Product title
$12.34
Product title
$12.34
Product title
$12.34
Product title
$12.34

Specification

Camera

Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Shutter Speed 1/1 to 1/30,000 s
Day & Night 24/7 colorful imaging
Zoom 16x digital

Lens

Focal Length 4 mm
FOV Horizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0°
Aperture F1.0

Illuminator

Supplement Light Type White Light
Supplement Light Range White Light Distance: up to 30 m

PTZ

Movement Range (Pan) 350°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Park Action Preset, patrol scan
3D Positioning Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output
Power -off MemoryYes

Video

Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio

Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Environment Noise Filtering Yes

Network

Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Authenticated username and password, MAC address binding, HTTPS encryption, IP address filter
Network Storage NAS (NFS, SMB/ CIFS)
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+


Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) 120 dB WDR
SNR ＞52 dB
Defog Digital defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask Up to 24 masks (8 masks for each scene)
Regional Exposure Yes

Interface

Ethernet Interface 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Built-in Speaker 1 built-in speaker
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 1 input, 1 output
RS- 4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Power Output12 VDC; < 60 mA

Deep Learning Function

Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

General

Power 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 14 W (including max. 4 W for white light)
Dimension 179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")
Approx. 1.125 kg (2.48 lb.)
Operating ConditionHumidity : ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
General Function Mirror, password protection, watermark, IP address filter
Demist Yes

FAQ

Does this camera support PoE (Power over Ethernet)?

Yes, it supports PoE 802.3at. A single Ethernet cable delivers both power and data, simplifying installation.
Can I use this camera for outdoor PTZ CCTV surveillance?

Absolutely. It has an IP66 weatherproof rating, so it can handle rain, dust, and outdoor conditions. The 350° pan and 90° tilt give you wide coverage.
What is the benefit of 120dB True WDR?

120dB True WDR balances bright and dark areas in the same scene. You get clear images even with strong backlight — for example, a person standing in front of a bright window.
Does this Hikvision PTZ camera have a built-in microphone?

Yes, it has a built-in microphone and speaker for real-time two-way audio. You can listen and talk directly through the camera without extra hardware.
