Hikvision DS-2CD3683G2-IZSU 8MP AcuSense motorized varifocal bullet security camera with adjustable lens and outdoor housing.
By Hikvision

Hikvision DS-2CD3683G2-IZSU 8MP AcuSense Motorized Varifocal Bullet Security Camera

In stock
SKU: DS-2CD3683G2-IZSU
$453.25
？Help me pick a ip camera
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 8MP Ultra HD resolution (3840 × 2160)
  • Motorized varifocal lens (2.7–13.5 mm)
  • Built-in microphone
  • 120 dB True WDR
  • AI-powered AcuSense
  • 60 m smart IR night vision
  • IP67 weatherproof and IK10
View details

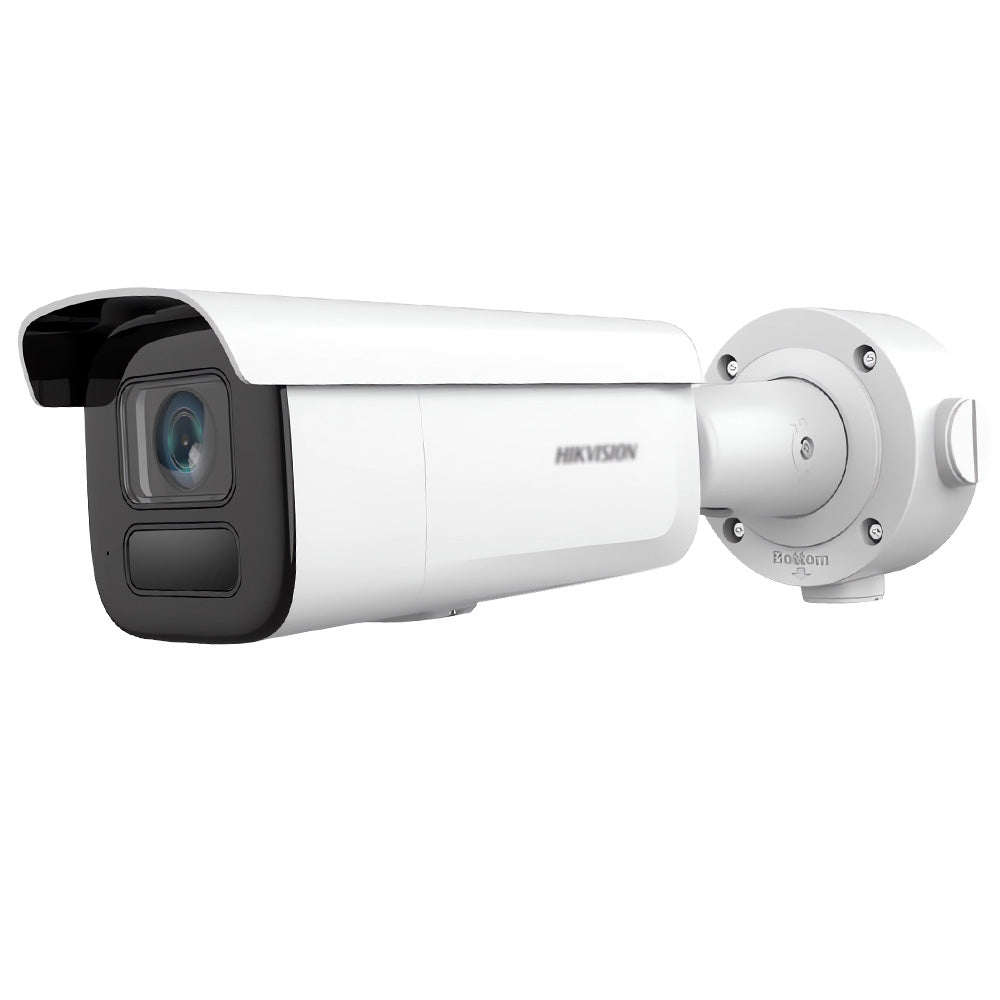

8MP AcuSense Motorized Varifocal Bullet Camera with Audio

DS-2CD3683G2-IZSU details_h2_image1
DS-2CD3683G2-IZSU 1_1

Remote Zoom and Focus — No Ladder Required

The motorized varifocal lens (2.7–13.5 mm) lets you adjust the field of view remotely from your NVR or mobile app after installation. Mount the camera once, then fine-tune the angle and focus from your desk. This saves hours on multi-camera installs and gives you flexibility to change coverage later without touching the hardware.

DS-2CD3683G2-IZSU 2_2

Hear Every Sound with Built-in Mic

A built-in microphone captures audio alongside the video feed — no extra hardware needed. Listen for footsteps, voices, or breaking glass in real time. Combined with 8MP Ultra HD video (3840 × 2160), you get both visual and audio evidence of every event.

DS-2CD3683G2-IZSU 3_3

AI That Filters Out False Alarms

AcuSense technology classifies humans and vehicles, ignoring leaves, rain, and animals. This cuts nuisance alerts by up to 90% so you only get notified about real threats. The 120 dB True WDR ensures clear images even against bright backlight, making identification reliable in challenging lighting.

DS-2CD3683G2-IZSU 4_4

Built Tough for Outdoor Installations

Rated IP67 and IK10, this camera survives rain, dust, and vandalism. The 60 m smart IR range delivers clear night vision up to 200 ft. With H.265+ compression, you save bandwidth and storage without sacrificing quality — ideal for 24/7 surveillance.

Complementary products

Product title
$12.34
Product title
$12.34
Product title
$12.34
Product title
$12.34

Specification

Camera

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV 2.7 to 13.5 mm, horizontal FOV 107° to 32°, vertical FOV 56° to 18°, diagonal FOV 128° to 37°
Lens Mount Ø14
Iris Type Auto-iris
Aperture F1.6

DORI

DORI 2.7 to 13.5 mm: D: 88 m to 273 m, O: 35 m to 108 m, R: 17 m to 54 m, I: 8 m to 27 m

Illuminator

Supplement Light Range Up to 60 m
Supplement Light Type IR
Smart Supplement Light Yes
IR Wavelength 850 nm

Video

Main Stream 50 Hz: 25 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \*Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 \*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Bit Rate Control CBR,VBR
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes

Audio

Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect, Hik-Central
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch Yes
Day/Night Switch Day, Night, Auto, Schedule
Image Settings Rotate mode
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Built-in Microphone Yes,1 built-in microphone
Reset Key Yes

Deep Learning Function

Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3at, Class 4, max. 15 W
Material Aluminum alloy body
Dimension 332.8 mm × 97.9 mm × 94.2 mm (13.1" × 3.9" × 3.7")
Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Approx. 1531 g (3.4 lb.)
With Package Weight Approx. 2000 g (4.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

FAQ

Is this camera good for outdoor night surveillance?

Yes. It has 60 m smart IR night vision and IP67 weatherproofing, so it works in rain, dust, and total darkness. The 8MP sensor captures clear details even at long range.
What does varifocal mean for installation?

Varifocal means the lens can zoom and focus remotely. You mount the camera once, then adjust the field of view from your NVR or app — no ladder needed. This saves time and lets you change coverage later.
Does this camera have a built-in microphone?

Yes. It has a built-in mic for one-way audio. You can hear what's happening in real time without adding extra hardware.
Can I use this as a night vision CCTV camera for outdoor security?

Absolutely. It's designed for outdoor use with IP67 weatherproofing, IK10 vandal resistance, and 60 m IR night vision. The AcuSense AI also filters false alarms from animals or weather.
