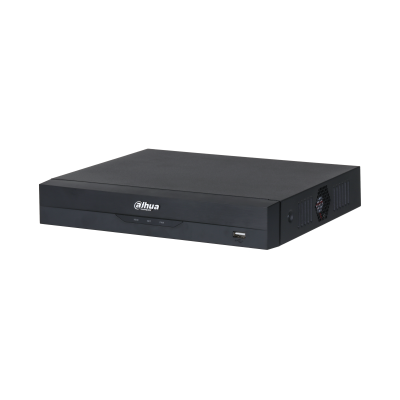

Dahua DHI-NVR4116HS-8P-EI Compact 16-Channel WizSense NVR with 8 PoE & QuickPick 2.0
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
(HDD no included)
- Compact 16-Channel Capacity: Supports up to 16 IP cameras in a 260 mm-wide chassis suited to space-conscious commercial installations.
- Eight Built-In PoE Ports: Connects and powers eight cameras directly through a shared 78 W IEEE 802.3af/at PoE budget.
- QuickPick 2.0 Search: Works with select IP cameras to locate people and vehicles using appearance and target-type attributes.
- Built-In WizSense Analytics: Processes one-channel face recognition, two-channel perimeter protection and four-channel SMD Plus at the recorder.
- High-Resolution Processing: Accepts cameras up to 16 MP and provides 256 Mbps bandwidth when recorder-side AI is disabled.
- 20 TB Storage Support: One SATA interface accommodates a single HDD up to 20 TB for local recording and event review.
Dahua DHI-NVR4116HS-8P-EI Compact 16-Channel WizSense NVR with 8 PoE & QuickPick 2.0
Details
16 CH Expansion in a Compact Chassis
The Dahua DHI-NVR4116HS-8P-EI combines 16-channel IP camera access with a compact 260 × 232.7 × 47.6 mm enclosure. Eight integrated PoE ports provide direct power and network connections for the initial camera deployment. Additional cameras can connect through the network to use the recorder's remaining channels, making this model suitable for shops, offices and multi-zone sites that require future expansion without a larger recorder chassis.
Search People and Vehicles with QuickPick 2.0
When paired with select compatible IP cameras, QuickPick 2.0 helps operators locate human and vehicle targets using attributes such as clothing color, vehicle color, hats, clothing types and vehicle types. Recorder-side intelligence also provides one channel of face detection and recognition, two channels of perimeter protection and four channels of SMD Plus for focused event analysis.
The face-management system supports up to 10 databases containing a combined 20,000 images and 2.5 GB of data. Names, credential information and regional details can be associated with stored face images, helping users organize identity records for comparison and investigation.
Bandwidth, Decoding and Storage Resources
- High-resolution access: Supports IP cameras up to 16 MP and HDMI output at up to 3840 × 2160.
- Conditional bandwidth: Provides 256 Mbps incoming, recording and outgoing bandwidth with recorder AI disabled, or 180 Mbps with AI enabled.
- Multi-camera decoding: Handles up to 16 1080p streams at 30 fps without recorder AI; AI mode supports 12 1080p or 16 720p streams at 30 fps.
- Local storage: One SATA interface supports one HDD up to 20 TB, subject to environmental conditions.
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; and SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (16 targets/s) |
| Audio and Video | |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Resolution | 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF |
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 \*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | 1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Disk Interface | 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 53 VDC, 1.812 A |
| Power Consumption | < 10 W (without HDD) Total maximum output power of PoE is 78 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 2.05 kg (4.52 lb) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H) |
| Packaging Dimensions | 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Datasheet Date | 2026-04-24 |
| Datasheet Title | NVR4116HS-8P-EI\_S0\_datasheet\_20251203 |
| Datasheet Language | English |
| Datasheet Type | |
| Datasheet Download | [NVR4116HS-8P-EI_S0_datasheet_20251203](https://materialfile.dahuasecurity.com/uploads/cpq/57667/datasheet/NVR4116HS-8P-EI_S0_datasheet_20251203.pdf "NVR4116HS-8P-EI_S0_datasheet_20251203") |
