NVR 4-EI Series
By Dahua

Dahua DHI-NVR4108HS-8P-EI 8CH WizSense NVR

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns

(HDD no included)

  • Compact 8-Channel Design: Combines eight IP camera channels, integrated PoE and WizSense analytics in a 260 mm-wide chassis.
  • QuickPick 2.0 Search: Works with select IP cameras to locate human and vehicle targets using detailed appearance attributes.
  • Recorder-Side Analytics: Supports one-channel face recognition, two-channel perimeter protection and four-channel SMD Plus.
  • 20,000-Image Face Library: Stores up to 10 face databases with searchable identity information for structured investigations.
  • 16 MP Camera Access: Accepts IP cameras up to 16 MP and provides up to 256 Mbps bandwidth with recorder AI disabled.
  • Direct Eight-Camera PoE: Eight IEEE 802.3af/at ports share a 78 W power budget, with up to 25.5 W per port.
Datasheet Link
View details

Details

Compact Hardware for Search-Focused Surveillance

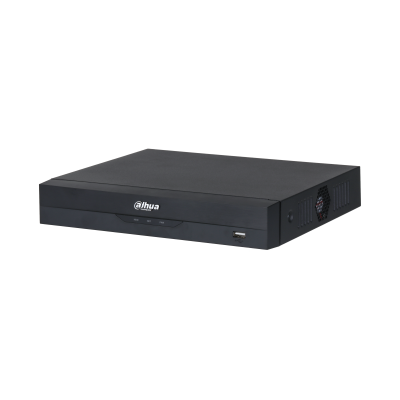

The Dahua DHI-NVR4108HS-8P-EI is a compact 8-channel WizSense network video recorder for retail stores, offices and other small to medium-sized sites. Its eight integrated PoE ports provide direct power and network connections for a complete eight-camera deployment. The 260 × 232.7 × 47.6 mm chassis also offers front and rear USB access for practical desktop or cabinet installation.

QuickPick 2.0 and Structured Face Investigation

When used with select compatible IP cameras, QuickPick 2.0 helps operators search for human and vehicle targets by clothing color, vehicle color, hats, clothing types and vehicle types. Recorder-side analytics include one channel of face detection and recognition, two channels of perimeter protection and four channels of SMD Plus.

Up to 10 face databases can hold a combined 20,000 images with a total capacity of 2.5 GB. Identity details such as names, credential information and regional data can be associated with stored images, supporting more organized face comparison and event review.

Video Processing and Storage Resources

  • High-resolution access: Supports IP cameras up to 16 MP and HDMI output at up to 3840 × 2160.
  • Conditional bandwidth: Provides 256 Mbps incoming, recording and outgoing bandwidth with recorder AI disabled, or 180 Mbps with AI enabled.
  • Flexible decoding: Handles up to eight 4 MP streams at 30 fps without recorder AI, or eight 1080p streams at 30 fps with AI enabled.
  • Single-drive storage: One SATA interface supports one HDD up to 20 TB, subject to environmental conditions.

Specification

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI
AI by Recorder Face detection; face recognition; perimeter protection; and SMD
AI by Camera Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera All channels (16 targets/s)
Audio and Video
Access Channel 8 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Resolution 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
\*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
Third-party Camera Access Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access iOS; Android
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Recording Playback
Multi-channel Playback Up to 8 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Disk Interface 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.812 A
Power Consumption < 10 W (without HDD)
Total maximum output power of PoE is 78 W, the maximum output power of a single port is 25.5 W
Net Weight 0.92 kg (2.03 lb)
Gross Weight 2.05 kg (4.52 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)
Packaging Dimensions 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Datasheet Date 2026-04-24
Datasheet Title NVR4108HS-8P-EI\_S0\_datasheet\_20251203
Datasheet Language English
Datasheet Type pdf
Datasheet Download [NVR4108HS-8P-EI_S0_datasheet_20251203](https://materialfile.dahuasecurity.com/uploads/cpq/65377/datasheet/NVR4108HS-8P-EI_S0_datasheet_20251203.pdf "NVR4108HS-8P-EI_S0_datasheet_20251203")

FAQ

Does QuickPick 2.0 work with every connected camera?

No. The datasheet states that QuickPick becomes available with select compatible IP cameras. It uses perimeter-protection data to search human and vehicle targets by appearance attributes, so basic video connectivity or ONVIF support alone does not confirm QuickPick 2.0 compatibility.
Which intelligent functions are processed by the NVR?

Recorder-side resources include one face-detection and recognition channel, two perimeter-protection channels with 10 IVS rules per channel, and four SMD Plus channels. Camera-side analytics depend on the functions supported by each connected intelligent camera.
How does enabling recorder AI affect video resources?

Incoming, recording and outgoing bandwidth are each rated at 256 Mbps with recorder AI disabled and 180 Mbps with it enabled. Maximum eight-stream decoding changes from 4 MP at 30 fps without recorder AI to 1080p at 30 fps when AI is enabled.
What storage and USB connections are available?

The NVR has one SATA interface supporting one HDD up to 20 TB. It also provides two USB 2.0 ports, with one located at the front and one at the rear. The datasheet does not state that an HDD is included with the recorder.
