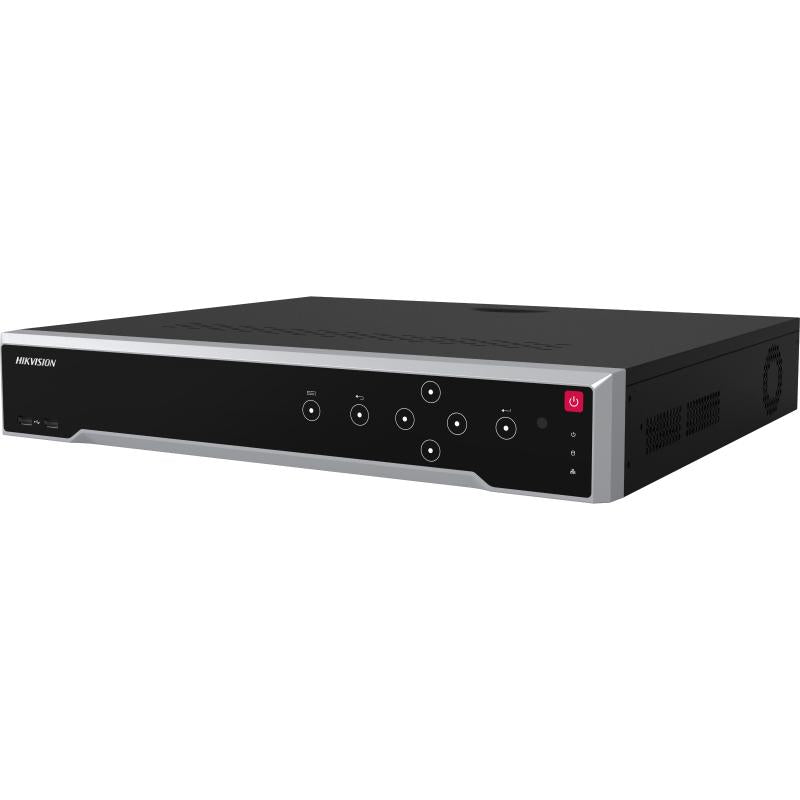

Hikvision DS-7716NI-I4/16P 16 Channel NVR 1.5U 16 PoE 4K NVR
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
(HDD not included)
- 16-channel NVR — connect up to 16 IP cameras at once
- Built-in 16-port PoE switch — no extra switch or power adapters needed
- Records in ultra-high 12MP resolution for crisp, detailed footage
- 4 HDD bays support up to 64TB total storage — 16TB per bay
- Smart H.265+ compression saves up to 75% storage vs H.264
- Works with all ONVIF-compliant IP cameras for flexible setup
- 4K HDMI output for sharp live viewing and playback
Details
One Box, 16 Cameras, Zero Extra Switches
This 16-channel NVR packs a 16-port PoE switch right into the chassis. You connect cameras directly to the back panel — no separate switch, no messy cabling, no extra power adapters. It's a clean, professional install that saves you time and hardware costs on every job.
Record in 12MP with Smart H.265+ Efficiency
The NVR records at up to 12MP resolution, capturing fine details across wide areas. Smart H.265+ compression cuts storage usage by up to 75% compared to H.264, so you keep more footage on the same hard drives. Four HDD bays accept up to 16TB each, giving you a total of 64TB of recording capacity.
Built for Flexible, Multi-Brand Setups
This unit supports ONVIF-compliant IP cameras, so you can mix and match camera brands without compatibility headaches. With 160 Mbps incoming bandwidth, it handles high-resolution streams from all 16 channels smoothly. You get 16-channel playback and a 4K HDMI output for clear, detailed monitoring.
Reliable Performance in Tough Conditions
The NVR operates in temperatures from -10°C to 55°C, making it suitable for garages, server rooms, and semi-outdoor enclosures. It runs on standard 100-240 VAC power with low 20W consumption. The 1.5U metal chassis keeps everything cool and organized in a standard rack.
Specification
| Video and Audio | |
| IP Video Input | 16-ch |
| Outgoing Bandwidth | 256 Mbps |
| VGA Output | HDMI,VGA |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI | 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI | 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Incoming Bandwidth | 160 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Decoding Capability | 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) |
| Synchronous Playback | 16-ch |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network | |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Remote Connection | 128 |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface (optional) |
| SATA | 4 SATA interfaces for 4HDDs |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/4 (16/8 optional) |
| General | |
| Power | Supply100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 20 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension | (W × D × H)440 × 387 × 75 mm ( 17.3"× 15.2" × 3.0") |
| ≤ | 5 kg (11 lb) (without HDD) |
| Certification | |
| FCCPart | 15 Subpart B, ANSI C63.4-2014 |
| CEEN | 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. |
