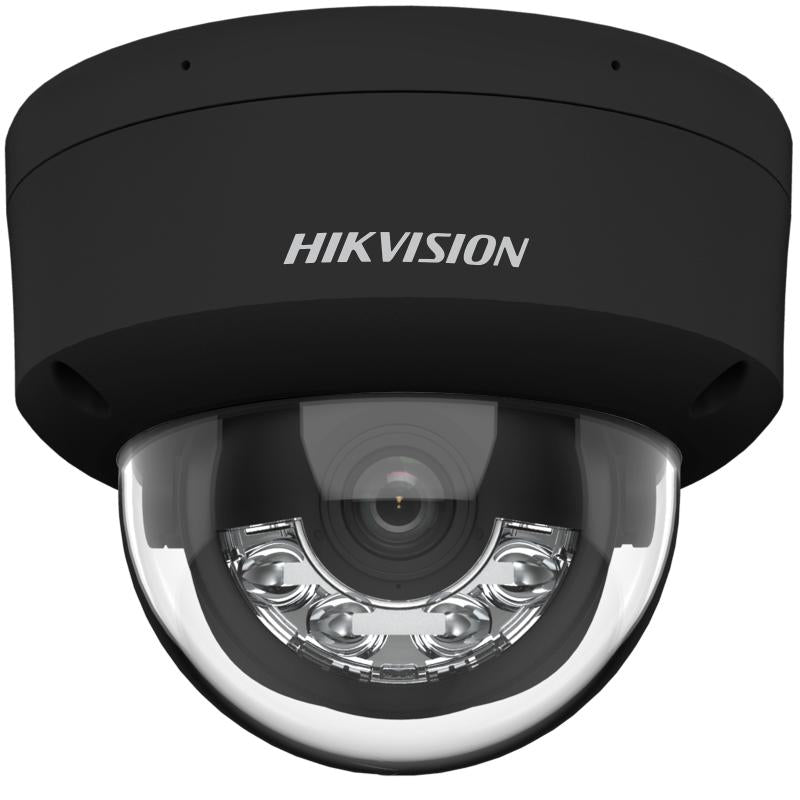

Hikvision DS-2CD1143G2-LIUF 4MP Dome Camera with Smart Hybrid Light and Mic

SKU: DS-2CD1143G2-LIUF
Price shown is for reference only. Contact us for the final price.
$219.25

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • Sharp 4MP Super HD — crisp day and night footage
  • Built-in microphone — hear what's happening in real time
  • Smart Hybrid Light — IR for stealth, white light for color when motion is detected
  • Smart Motion Detection 4.0 — only alerts for people and vehicles
  • IP67 weatherproof — survives rain, dust, and extreme temperatures
  • Supports up to 512GB MicroSD card — weeks of local recording
  • Flexible power: 12V DC or PoE (802.3af) for easy installation
Datasheet Link
View details

Details

4 MP HD Imaging with Smart Hybrid Illumination

The 4 MP (2560 × 1440) fixed dome network camera delivers detailed surveillance video at 20 fps for commercial entrances, retail spaces, and public facilities. Featuring intelligent Smart Hybrid Light technology, the camera integrates both 850 nm infrared and warm white light up to 30 meters. It can operate in discreet black-and-white IR mode in complete darkness and automatically switch on warm white light upon event detection to capture clear full-color evidence.

IK08 Vandal Resistance and True 120 dB WDR

Engineered for high-exposure environments, the camera features an IK08-rated impact-resistant dome and an IP67 weatherproof enclosure operating reliably between -30 °C and 60 °C (-22 °F to 140 °F). Hardware-driven 120 dB True WDR, 3D DNR, and BLC eliminate glare and overexposure from glass doors or bright storefronts, ensuring balanced image clarity in harsh, high-contrast lighting.

Integrated Audio, Edge Recording, and Versatile Setup

  • Flexible Optical Options: Available in 2.8 mm (98° horizontal FOV) for wide-area coverage and 4 mm (78° horizontal FOV) for focused entry points.
  • 3-Axis Pan-Tilt-Rotate: Full mechanical adjustment (0° to 355° pan, 0° to 75° tilt, 0° to 355° rotate) ensures hassle-free ceiling or wall alignment.
  • Integrated Audio Security: Built-in microphone with environmental noise filtering captures synchronized sound without external wiring.
  • Local Storage & PoE Power: Supports on-board microSD storage up to 512 GB (-F model) alongside H.265+ compression, powered via 12 VDC or standard PoE (802.3af).

Specification

Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Reset Key -F: Yes
General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimension Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
For better user experience, we highly recommend you to update your device to the latest firmware asap.

FAQ

How does the Smart Hybrid Light operate at night?

The camera provides dual illumination with IR and white light up to 30 meters. It can maintain invisible IR black-and-white monitoring in dark conditions and switch on the warm white light upon motion detection to record clear full-color video.
Does this camera include a built-in microphone for audio recording?

Yes. The camera features an integrated microphone with environmental noise filtering to capture clear ambient sound alongside the video stream.
What capacity microSD card can be used for local storage?

The -F model features a built-in card slot that supports microSD, microSDHC, and microSDXC cards up to 512 GB. MicroSD cards are sold separately.
What is the viewing angle of this camera?

The 2.8mm lens gives a 98° horizontal field of view, which is wide enough to cover a typical driveway or backyard. A 4mm lens option is also available for a narrower, more focused view.
