By Hikvision

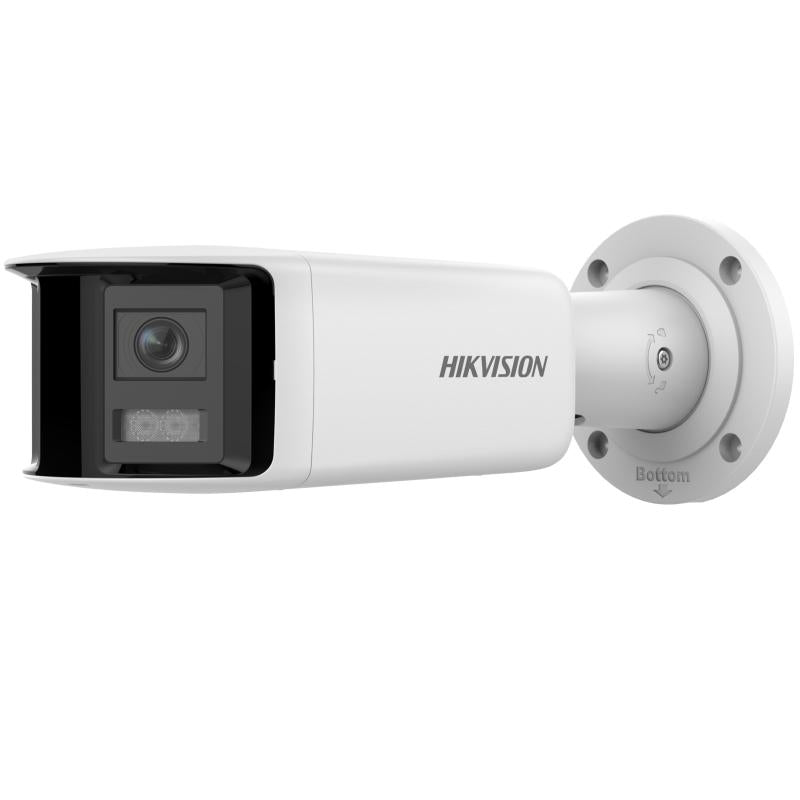

Hikvision DS-2CD2T46G2P-ISU/SL 4MP Panoramic AcuSense Fisheye Camera

SKU: DS-2CD2T46G2P-ISU_SL
Price shown is for reference only. Contact us for the final price.
$423.25

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 360° panoramic view — one camera covers the entire room with zero blind spots
  • AcuSense AI filters false alarms — get alerts only for people and vehicles
  • 120dB True WDR delivers clear images against strong backlight
  • Two-way audio with built-in microphone — hear and talk from your phone
  • 40m IR night vision for reliable after-dark monitoring
  • IP67 weatherproof metal housing built for harsh outdoor conditions
  • Supports up to 512GB MicroSD card for weeks of local recording
Datasheet Link
View details

Details

Seamless 180-Degree Ultra-Wide Panoramic Surveillance

The Hikvision 4 MP 180° Panoramic Dual-Lens Fixed Bullet Network Camera delivers expansive single-camera coverage designed to replace multiple traditional fixed cameras. Equipped with dual 1/2.5" progressive scan CMOS sensors and synchronized 2.8 mm lenses, the camera utilizes advanced image stitching technology to generate a seamless 180° horizontal by 81° vertical panoramic video stream (3040 × 1368 @ 24/25 fps) with natural perspective and zero blind spots.

Active Deterrence and Two-Way Audio Protection

Engineered for proactive perimeter security, the camera combines long-range night vision with on-site deterrence capabilities:

  • 40-Meter Smart IR: High-efficiency 850 nm infrared LEDs illuminate expansive perimeters up to 40 meters in complete darkness (0 Lux).
  • Active Siren and Flashing Light: Features a built-in flashing warning light and an integrated 1 W speaker (producing up to 97 dB at 10 cm) to broadcast sirens or customized voice alerts when security rules are breached.
  • Two-Way Voice Communication: Onboard microphone with environmental noise filtering and integrated speaker allow direct real-time communication via Hik-Connect or iVMS-4200, alongside dedicated audio line in/out terminal blocks.
  • 120 dB True WDR: Balances difficult backlighting across large outdoor spaces, parking lots, and building facades.

Heavy-Duty All-Metal Enclosure and Edge Storage

Constructed with an all-metal front cover, body, and integrated 3-axis mounting bracket (pan 0° to 355°, tilt 0° to 90°, rotate 0° to 360°), the camera is IP67 weather-resistant for reliable operation from -30 °C to 60 °C. It supports expandable local storage up to 512 GB via microSD and provides 1 alarm input and 1 alarm output for seamless integration with external security systems.

Specification

Camera
Image Sensor 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution 3040 × 1368
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (3040 × 1368) 60 Hz: 24 fps (3040 × 1368)
Sub-Stream 50 Hz: 25 fps (1200 × 536, 960 × 432) 60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 8 rectangular privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Max. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VAC/VDC, 1 A)
Reset Key Yes
Smart Event
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
Deep Learning Function
Perimeter Protection
General
Power
Material Front cover: metal, body: metal, bracket: metal
Dimension 118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1")
Package Dimension 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
Approx. 1400 g (3.1 lb.)
With Package Weight Approx. 2100 g (4.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, heartbeat, flash log, pixel counter
Flashing Light Yes
Environment
ProtectionIP 67: IEC 60529-2013 \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

FAQ

How does the camera achieve a 180-degree field of view without fisheye barrel distortion?

The camera uses two separate 1/2.5" image sensors paired with precision 2.8 mm lenses. The camera's internal processor stitches the two video feeds in real time, creating a flat, seamless 180-degree panoramic aspect ratio (3040 × 1368) without curved edge distortion.
How does the active deterrence system function during an intrusion event?

When a configured security event is triggered, the camera instantly activates its onboard white flashing light to illuminate the intruder and sounds an audible siren or voice warning through its integrated 97 dB speaker to deter trespassing before damage occurs.
Does the camera support two-way audio communication?

es. The camera is equipped with both an integrated high-sensitivity microphone (with background noise filtering) and a built-in speaker, enabling clear two-way voice conversations through the Hik-Connect mobile app or iVMS-4200 software. External audio line in/out terminal blocks are also provided.
What are the installation and mounting capabilities?

Housed in an IP67-rated all-metal enclosure, the camera includes an integrated 3-axis adjustable bracket supporting 0° to 355° pan, 0° to 90° tilt, and 0° to 360° rotation for easy alignment on walls, ceilings, or outdoor poles.
