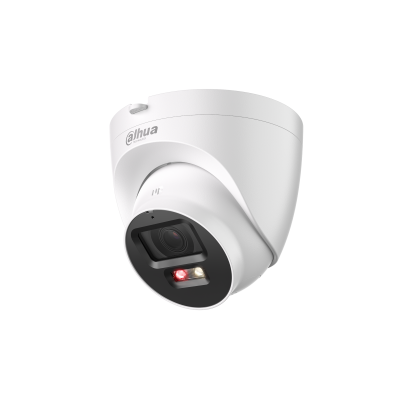

Dahua DH-IPC-HDW2449T-S-PV 4MP Active Deterrence Eyeball Camera
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- Smart Dual Light: Uses infrared for discreet night monitoring and activates warm light to capture full-color details during target events.
- Sound and Light Deterrence: A built-in speaker and visible warning light can respond when configured perimeter rules are triggered.
- Two-Way Talk: The integrated microphone and speaker support remote listening and voice communication through compatible software.
- Human and Vehicle Filtering: Tripwire, intrusion and SMD Plus help prioritize relevant targets over unrelated scene movement.
- Flexible 4MP Video: Records 2688 × 1520 at up to 20 fps or 2560 × 1440 at up to 25/30 fps.
- Compact Outdoor Design: The adjustable IP67 eyeball housing supports PoE or 12 VDC power and MicroSD cards up to 256 GB.
Dahua DH-IPC-HDW2449T-S-PV 4MP Active Deterrence Eyeball Camera
Details
Active Deterrence in a Compact Eyeball Design
The Dahua DH-IPC-HDW2449T-S-PV is a 4 MP Smart Dual Light eyeball network camera for storefronts, entrances, offices and other areas where a low-profile camera should both record and respond to security events. When a configured perimeter rule is triggered, its built-in light and speaker can issue visible and audible warnings. Multiple warning voices are available, and customized voice files can also be imported.
Capture Key Events in Color Without Continuous Warm Light
At night, Smart Dual Light normally uses infrared illumination for discreet monitoring. When a target enters the defined area, the warm light activates so the camera can capture key footage in color. After the target leaves, the camera returns to infrared mode. Both infrared and warm-light illumination have a stated maximum distance of 30 metres.
- 2.8 mm lens: Provides a 101.6° horizontal field of view for wider entrances and shared spaces.
- 3.6 mm lens: Provides an 84° horizontal field of view for more concentrated scene coverage.
- Target filtering: Tripwire, intrusion and SMD Plus classify human and vehicle events.
Combine Video, Audio and Local Recording
The camera includes a microphone and speaker for two-way communication through compatible clients. It records 2688 × 1520 video at up to 20 fps or 2560 × 1440 at up to 25/30 fps. A MicroSD card up to 256 GB can provide local storage, while Smart Search works with a compatible Smart NVR for refined event review. The IP67-rated housing supports either 12 VDC or PoE installation.
Specification
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 101.6°; V: 54.8°; D: 122.1°; 3.6 mm: H: 84°; V: 45.6°; D: 98.9° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.4 m (4.59 ft); 3.6 mm: 2.0 m (6.56 ft) |
| DORI Distance | 2.8 mm: Detect 63.8 m (209.32 ft), Observe 25.5 m (83.66 ft), Recognize 12.8 m (41.99 ft), Identify 6.4 m (21.00 ft); 3.6 mm: Detect 77.8 m (255.25 ft), Observe 31.1 m (102.03 ft), Recognize 15.6 m (51.18 ft), Identify 7.8 m (25.59 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; auto registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 2 W (12 VDC), 2.6 W (PoE); Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker): 8.6 W (12 VDC), 10.1 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 103.5 mm × Φ109.9 mm (4.07" × Φ4.33") |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |
| General Parameter | |
| Model | IPC-HDW2449T-S-PV |
| Product Name | 4MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera |
| Datasheet Release Date | 2023-11-08 |
| Datasheet Document | IPC-HDW2449T-S-PV_S0_datasheet_20250321 |
