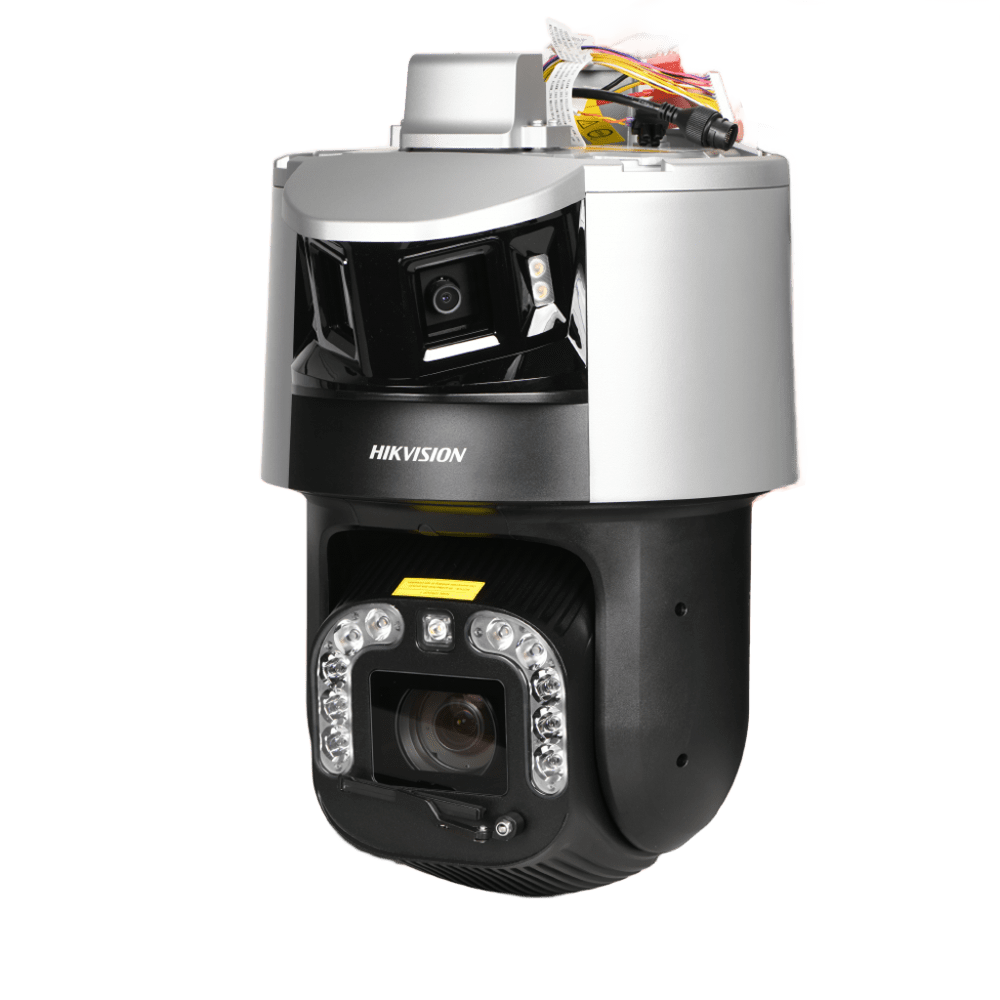

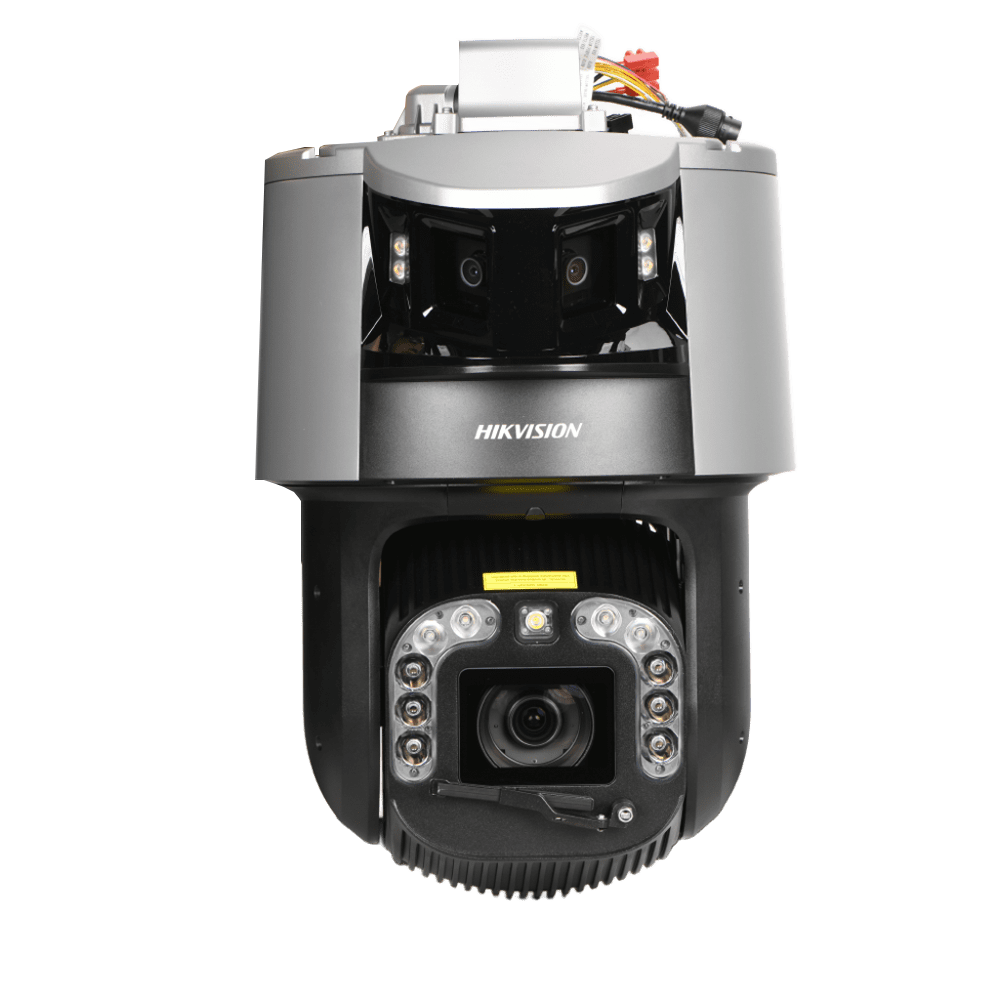

Hikvision DS-2SF8C442MXG-ELW/26 4MP TandemVu 8C Panoramic 42X DarkFighter Speed Dome

SKU: DS-2SF8C442MXG-ELW_26
Price shown is for reference only. Contact us for the final price.
$3,450.50

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • Dual 1/1.8" sensors deliver crisp 4MP images — even in low light
  • Motorized varifocal lens: remotely adjust zoom and focus to fine-tune the view
  • 120dB True WDR handles strong backlight — no more washed-out faces
  • 300m smart IR for long-range night coverage (see up to 300m in the dark)
  • IP67 weatherproof and IK10 vandal-resistant — built for outdoor abuse
  • Smart motion detection 4.0 filters out false alarms — only people and vehicles trigger alerts
  • Supports H.265+ compression and up to 256GB microSD for local storage
Datasheet Link
View details

Details

Dual-Channel Panoramic and Telephoto Coverage

The Hikvision DS-2SF8C442MXG-EL/26 TandemVu PTZ camera integrates an ultra-wide panoramic bullet channel and a high-speed 42× optical zoom PTZ channel into a single heavy-duty unit. The 6 MP panoramic channel delivers continuous 190° situational awareness with 12° to 24° manual tilt adjustment, while the 4 MP PTZ channel provides 360° endless pan and -20° to 90° tilt to inspect distant subjects without ever losing sight of the overall perimeter.

DarkFighter Imaging and Intelligent Linkage Tracking

Equipped with Hikvision DarkFighter technology, the PTZ channel offers exceptional low-light sensitivity (0.0005 Lux in color) and nighttime visibility up to 300 meters with smart IR illumination. Meanwhile, the panoramic channel utilizes an F1.0 aperture and 30-meter white light for round-the-clock full-color monitoring.

  • Perimeter Defense: Embedded deep learning algorithms accurately classify humans and vehicles across line crossing and intrusion zones on both channels.
  • Smart Linkage Tracking: When the panoramic view detects an intrusion, the PTZ channel automatically locks on, zooms in, and tracks the moving target.
  • Active Deterrence: Supports white light strobe activation and audible alarm output to actively deter unauthorized intruders.

Industrial-Grade Reliability and Flexible Integration

Constructed with an ADC12 aluminum alloy housing, the camera features IP67 weatherproofing, IK10 vandal resistance, and an operating temperature range of -40 °C to 70 °C with internal heating. It supports Hi-PoE (60 W) or 36 VDC power inputs, edge storage up to 256 GB via microSD, 7 alarm inputs, 2 alarm outputs, and audio line in/out with environment noise filtering.

Specification

Camera
Image Sensor \[Panoramic channel\] 1/1.8" Progressive Scan CMOS, \[PTZ channel\] 1/1.8" Progressive Scan CMOS
Min. Illumination \[PTZ channel\] Color: 0.0005 Lux @ (F1.3, AGC ON), B/W: 0.0001 Lux @ (F1.3, AGC ON), 0 lux with IR,\[Panoramic channel\] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Speed 1 s to 1/30000 s
Slow Shutter Yes
Day & Night \[Panoramic channel\] Color, \[PTZ channel\] IR cut filter
Zoom \[PTZ channel\] 42 × optical, 16 × digital
Max. Resolution \[Panoramic channel\] 3632 × 1632, \[PTZ channel\] 2560 × 1440
Lens
FOV \[Panoramic channel\] horizontal field of view: 190° ± 5°, vertical field of view: 80°±5°, \[PTZ channel\] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 11°, diagonal field of view: 67.1° to 2.3°
Focus Auto,semi-auto,manual
Zoom Speed \[Panoramic channel\] No, \[PTZ channel\] approx. 5.6 s
Focal Length \[Panoramic channel\] 2.8 mm, \[PTZ channel\] 6 to 252 mm
Aperture \[Panoramic channel\] F1.0, \[PTZ channel\] F1.3
Illuminator
Supplement Light Range \[Panoramic channel\] white light: up to 30 m, \[PTZ channel\] IR: up to 300 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) \[Panoramic channel\] 12° to 24°, \[PTZ channel\] -20° to 90°
Pan Speed \[PTZ channel\] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed \[PTZ channel\] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,\[Panoramic channel\] tilt speed configurable
Proportional Pan \[Panoramic channel\] No, \[PTZ channel\] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Video
Main Stream \[PTZ channel\] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),\[Panoramic channel\] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)
Sub-Stream \[PTZ channel\] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),\[Panoramic channel\] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432)
Third Stream \[PTZ channel\] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),\[Panoramic channel\] No
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes
Network
API ISAPI,SDK,ISUP,ONVIF
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Wide Dynamic Range (WDR) \[Panoramic channel\] 120 dB, \[PTZ channel\] 120 dB
Day/Night Switch Day,night,auto,schedule
Image Enhancement HLC,3D DNR
Privacy Mask \[Panoramic channel\] 8 programmable polygon privacy masks, \[PTZ channel\] 24 programmable polygon privacy masks; mask color or mosaic configurable
Defog Optical defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure Yes
Regional Focus \[Panoramic channel\] No, \[PTZ channel\] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
SNR ≥ 52 dB
Supplement Detection Satellite Positioning
No Gyroscope
Yes Compass
No
Interface
Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm
7 input(s), 2 output(s) Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Smart Event
\[Panoramic channel\] line crossing detection, intrusion detection, region entrance detection, region exiting detection,\[PTZ channel\] line crossing detection, intrusion detection, region entrance detection, region exiting detection Linkage
\[Panoramic channel\] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, \[PTZ channel\] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Smart Tracking
\[PTZ channel\] yes Smart Linkage
Manual tracking, tracking takeover, linked tracking capture
Deep Learning Function
Multi-Target-Type Detection \[PTZ channel\] Supports simultaneous detection and capture of human body and face
Perimeter Protection
PTZ and Panoramic channel both support
General
General Function mirror,password protection
Power
36 VDC ± 25%, max. 60 W, Hi-PoE,including max. 6 W for heater and max. 3 W for supplement light of panoramic channel, and max. 6 W for heater and max. 12 W for supplement light of PTZ channel
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper Yes
Demist Yes
Material ADC12
Dimension Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
Weight Approx. 10.5 kg (23.15 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002) For better user experience, we highly recommend you to update your device to the latest firmware asap.

FAQ

How does the TandemVu linkage between the panoramic and PTZ channels work?

The panoramic channel continuously monitors the fixed 190-degree field of view. When its deep-learning analytics detect a human or vehicle crossing a defined boundary, it automatically triggers the PTZ channel to rotate, zoom in, and track the target while the panoramic channel continues recording the full scene.
What are the power requirements for this TandemVu PTZ camera?

The camera requires either 36 VDC (± 25%) or a Hi-PoE power source with a maximum power consumption of 60 W (including internal heaters and supplemental illumination). Standard 802.3af/at PoE switches do not supply sufficient wattage; a dedicated 60 W Hi-PoE injector or 36 VDC power supply is required.
Does the camera deliver full-color video at night on both channels?

The panoramic channel provides continuous 24/7 full-color imaging using an F1.0 large aperture and 30-meter supplemental white light. The PTZ channel uses DarkFighter low-light technology with 300-meter smart IR, switching between color in low ambient light and clear infrared black-and-white in complete darkness.
What mounting hardware is required for installation?

Due to its physical dimensions (Φ 290 mm × 453.2 mm) and weight (approximately 10.5 kg / 23.15 lb), the camera requires dedicated heavy-duty mounting brackets such as the optional DS-1603ZJ-P wall mount, DS-1661ZJ-P pendant mount, or DS-1603ZJ-Pole-P pole mount. The mounting structure must support at least 4 times the combined weight.
