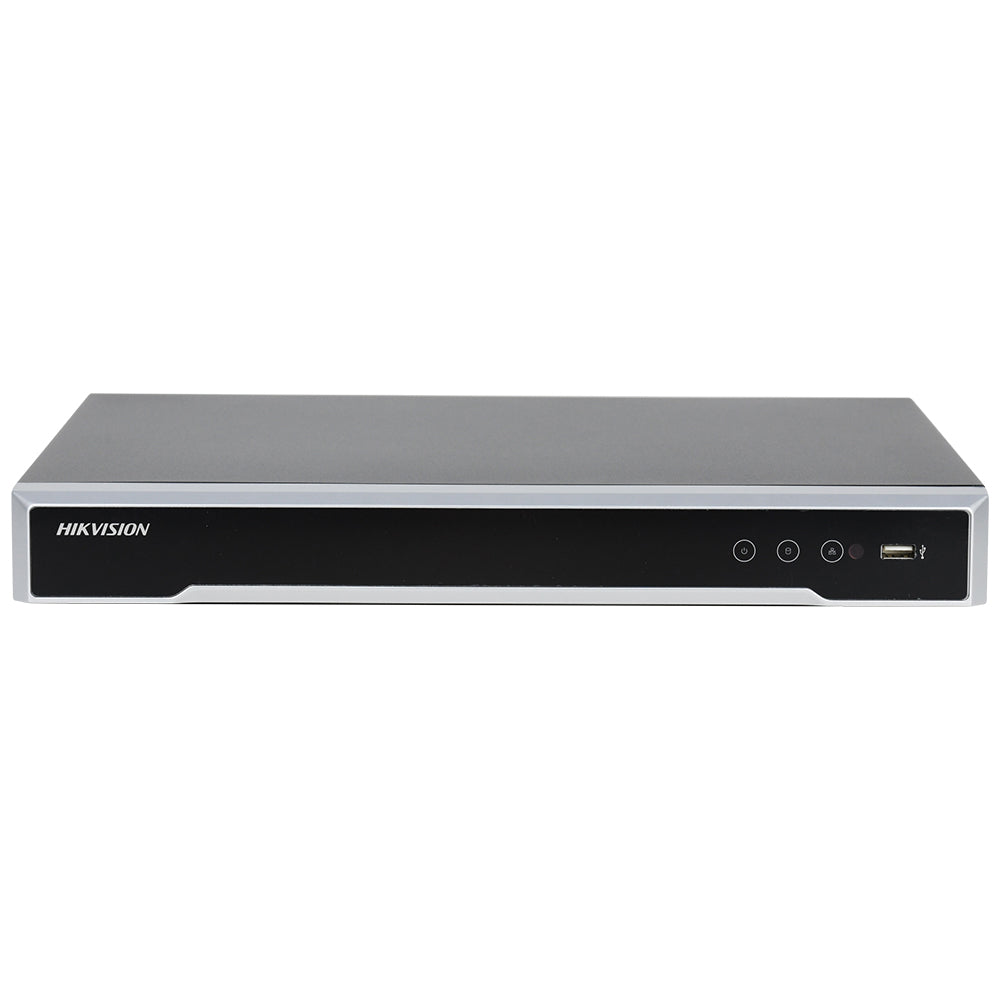

Hikvision DS-7616NI-Q2/16P Pro Series 16 Channel 4K PoE NVR
- 16-channel NVR — connect up to 16 IP cameras at once
- Records in 4K Ultra HD (8MP) for sharp, detailed video
- Built-in 16-port PoE switch — no extra switch or power cabling needed
- Dual HDD bays support up to 16TB total storage (2 x 8TB max each)
- AI human/vehicle analysis on 4 channels — reduces false alerts
- Smart H.265+ compression saves up to 75% storage vs H.264
- Free remote viewing via Hik-Connect app — monitor from anywhere

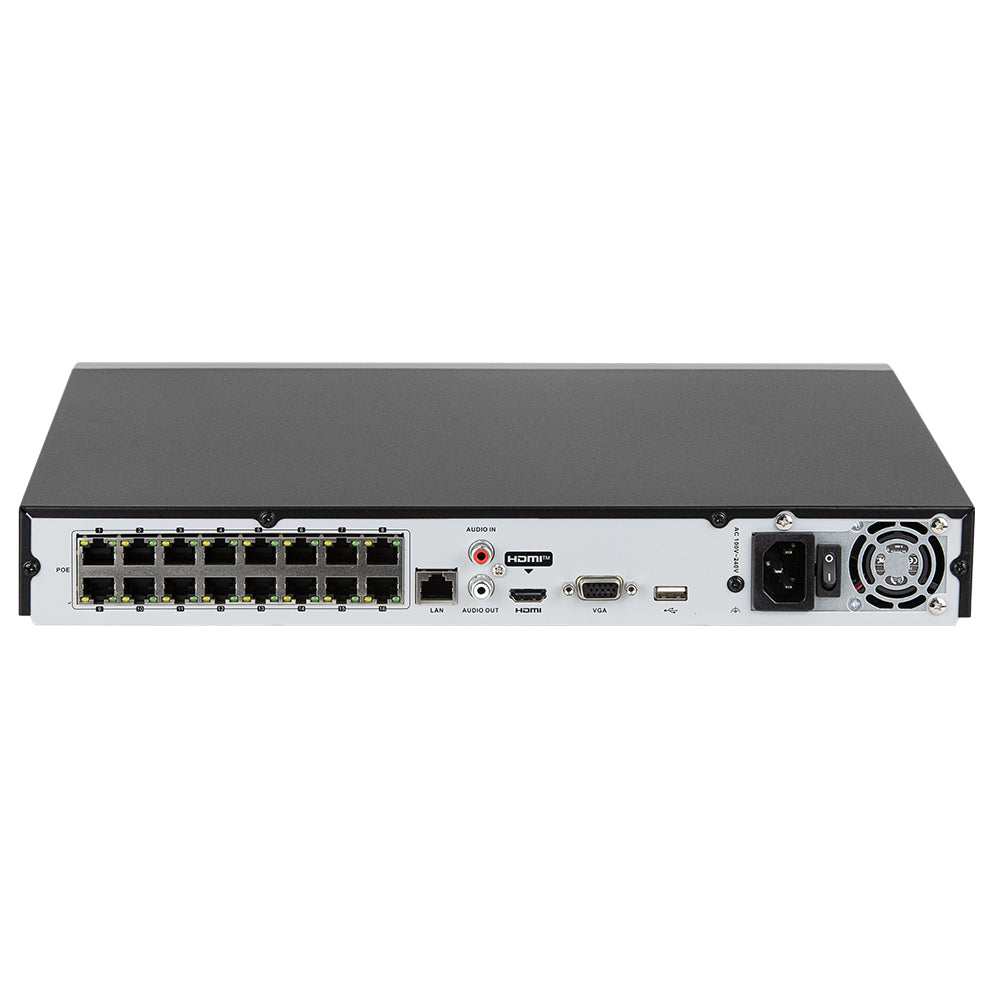

16 PoE Ports Built In — No Extra Switch Needed
This Hikvision NVR includes a 16-port PoE switch right on the unit. Each port delivers power and data over a single Ethernet cable. You save the cost of a separate switch and simplify cabling on every job. Total PoE budget supports standard IP cameras up to 30W per port.
4K Recording with Smart H.265+ Compression
Record in full 4K Ultra HD (8MP) resolution across all 16 channels. The NVR supports H.265+, H.265, H.264+, and H.264 compression. Smart H.265+ reduces bandwidth and storage usage by up to 75% compared to standard H.264. You get longer retention without buying extra drives.
AI Detection — People & Vehicles Only
The NVR supports AI human and vehicle analysis on 4 channels. It filters out false triggers from leaves, rain, or animals. You receive alerts only when a person or vehicle enters the scene. This saves hours of reviewing useless footage and makes your security camera business more efficient.
Dual HDD Bays for Up to 16TB Storage
Two SATA bays accept hard drives up to 8TB each for a total of 16TB. The unit supports 24/7 continuous recording or motion-triggered recording. Use the Hik-Connect app to search and playback footage from any device. No cloud subscription required — all data stays local on your drives.
Technical Specifications
| Model | DS-7616NI-Q2/16P |
| Brand | Hikvision |
| Channels | 16 |
| PoE Ports | 16 |
| HDD Bays | 2 |
| Max Storage | 16TB |
| Recording Resolution | 8MP |
| Incoming Bandwidth | 160 Mbps |
| Video Output | 1×HDMI (4K), 1×VGA |
| AI Functions | Human/Vehicle Analysis |
| Remote Access | Hik-Connect |
Frequently Asked Questions
Can I use this 16 channel NVR with non-Hikvision cameras?
Yes, the NVR supports ONVIF-compliant IP cameras. You can mix Hikvision cameras with third-party brands. For best performance and full AI features, we recommend Hikvision cameras.
How many hard drives does this NVR support?
It has two SATA bays. Each bay supports up to 8TB, giving you a maximum of 16TB total storage. Use surveillance-grade drives for 24/7 recording reliability.
Does this NVR require a cloud subscription?
No. All video is stored locally on your hard drives. The Hik-Connect app gives you free remote access without any monthly fees. Your data stays on-site.
What is the maximum recording resolution?
The NVR records up to 8MP (4K) resolution on all 16 channels. You can also mix lower-resolution cameras if needed. The HDMI output supports 4K display for live view and playback.
Is this NVR compatible with a security camera business setup?
Yes. It is ideal for small to medium commercial projects. The 16 PoE ports, AI detection, and dual HDD bays make it a cost-effective choice for installers and business owners.
Hikvision 16-Channel 1U PoE NVR with 4K Recording
16-Channel Recording with Built-In PoE
4K Recording and Smart Storage
AI Motion Detection That Works

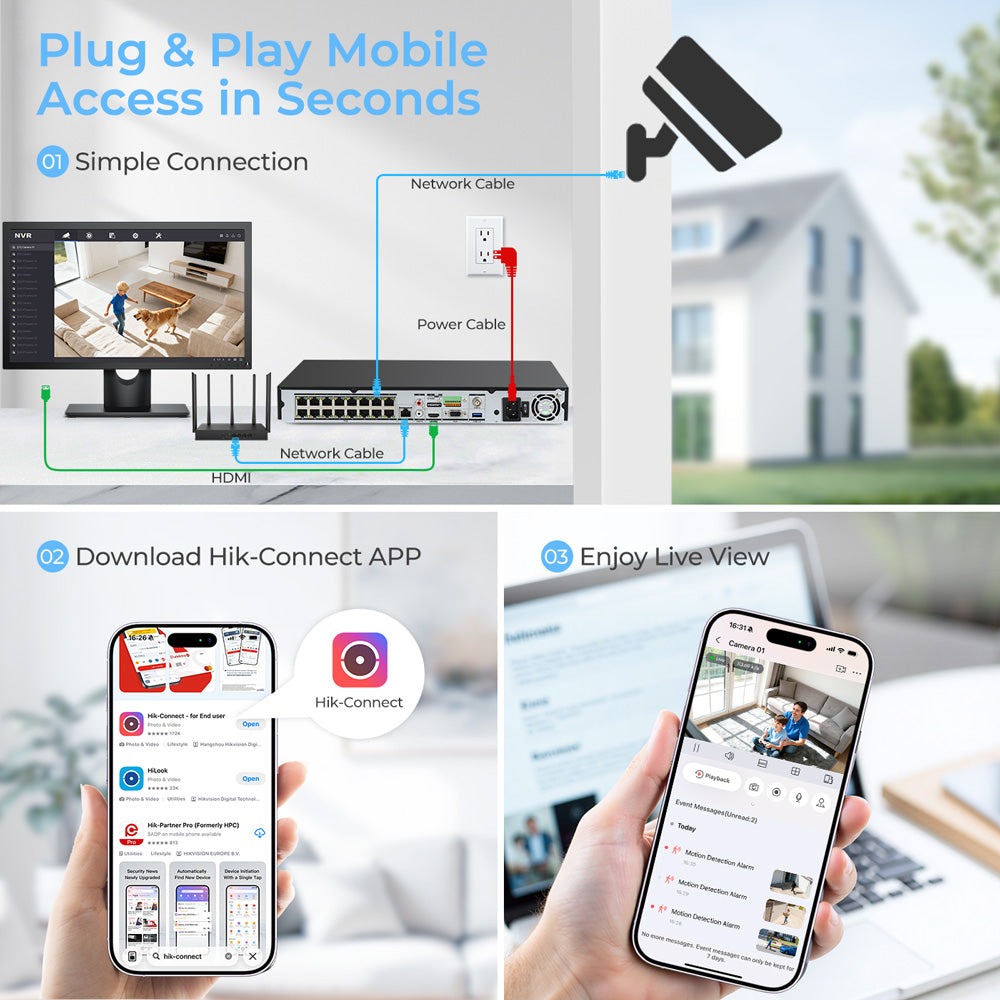

Easy Remote Access and Setup
Specification
Motion Detection 2.0
| Human/Vehicle Analysis | 4 |
Video and Audio
| IP Video Input | 16-ch |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Decoding
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Network
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
PoE
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 150W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | No |
Auxiliary Interface
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
General
| Power | Supply100-240V～, 50/60Hz, 3.2A MAX |
| Consumption | ≤ 15W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension | (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| ≤ | 2.6 kg (5.7 lb) \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. |
