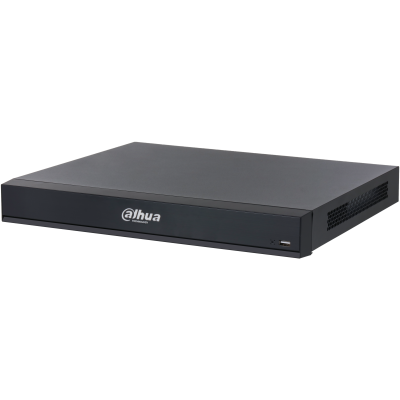

Dahua DHI-NVR5216-16P-XI 16-Channel WizMind NVR with 16 PoE, AcuPick & Dual HDD
SKU:
Regular price
$450.00
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
(HDD no included)
- Complete 16-Camera PoE Deployment: Sixteen built-in PoE ports allow every supported camera channel to connect directly to the recorder.
- AcuPick Target Search: Supports AcuPick across up to 16 channels when used with compatible intelligent IP cameras.
- Advanced Recorder Analytics: Provides face detection and recognition, video metadata, perimeter protection and SMD Plus processing.
- 32 MP Camera Access: Supports high-resolution IP cameras and up to 512 Mbps bandwidth when recorder-side AI is disabled.
- Dual-HDD Storage: Two SATA interfaces each accept one HDD up to 20 TB for flexible recording-capacity planning.
- 200 W PoE Budget: Supplies up to 25.5 W per port, while ports 1–8 additionally support Dahua ePoE technology.
Dahua DHI-NVR5216-16P-XI 16-Channel WizMind NVR with 16 PoE, AcuPick & Dual HDD
Details
Direct PoE Connectivity for Every Camera Channel
The Dahua DHI-NVR5216-16P-XI is a 16-channel, 1U WizMind network video recorder built for commercial sites that need a complete camera deployment without separate PoE switching. Its 16 integrated IEEE 802.3af/at ports provide direct network and power connections for all supported channels. Ports 1–8 also support Dahua ePoE technology.
Faster Review with AcuPick and Structured Analytics
AcuPick combines compatible camera intelligence with recorder-side processing to help operators locate relevant targets within large volumes of recorded video. The NVR also provides face detection and recognition, video metadata, perimeter protection and SMD Plus. Its metadata engine extracts attributes from people, motor vehicles and non-motor vehicles, supporting more focused event investigation.
Face management supports up to 20 databases containing a combined 200,000 images. Camera-side functions can additionally include ANPR, stereo analysis, heat maps and people counting when supported by the connected intelligent cameras.
Recording Resources for Professional Installations
- High-resolution access: Supports IP cameras with resolutions up to 32 MP.
- Conditional bandwidth: Provides 512 Mbps incoming, recording and outgoing bandwidth with recorder AI disabled, or 200 Mbps with it enabled.
- Dual-drive storage: Two SATA interfaces each support one HDD up to 20 TB, subject to environmental temperature.
- PoE capacity: The 16 ports share a total output budget of 200 W, with up to 25.5 W available from one port.
- External integration: Includes alarm inputs and outputs, RCA audio, RS-232 and RS-485 interfaces.
Specification
| Key Points | |
| Bandwidth | Max. 512/512/512 Mbps Incoming/Recording/Outgoing Bandwidth |
| Decoding Capability | Max. Decoding Capability: 32 × 1080p@30 fps |
| IP Cameras Resolution | Up to 32MP |
| HDD Capacity | 2 Bays. Each HDD Storage Capacity Up to 20TB |
| AI by Recorder | 8-ch Face Detection and Recognition, 8-ch Video Metadata, 8-ch SMD, 8-ch Perimeter Protection |
| AcuPick Support | With AcuPick Camera Supports Up to 16-ch AcuPick |
| Remote Storage | Provides Access to Remote Storage Devices Via iSCSI to Expand Storage Capacity |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection |
| AcuPick Performance of AI by Camera (Number of Channels) | All channels (36 targets/s) |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 16 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (32 targets/s) |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 8 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| Video Metadata | |
| Metadata Performance of AI by Recorder (Number of Channels) | 8 channels, 23 attributes extraction. |
| Metadata Performance of AI by Camera (Number of Channels) | 16 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle Attributes | 4 attributes |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers.; 2. Blocklist and allowlist |
| Audio and Video | |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps |
| Video Output | 1 VGA, 1 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; Heterogeneous video source output for HDMI and VGA |
| Multi-screen Display | Main screen: 1/4/8/9/16; Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| Disk Interface | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| General | |
| Model Name | NVR5216-16P-XI |
| Series | WizMind Series / NVR5-XI |
| Description | 16CH 1U 16POE 2HDDs WizMind Network Video Recorder |
| Power Supply | 100–240 VAC, 50/60Hz |
| Power Consumption | <10 W (without HDD); Total output power of PoE is 200 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 2.66 kg (5.86 lb) |
| Gross Weight | 3.82 kg (8.42 lb) |
| Product Dimensions | 375.0 mm × 327.6 mm × 53.0 mm (14.76" × 12.90" × 2.09") (W × D × H) |
| Packaging Dimensions | 449.0 mm × 421.0 mm × 170.0 mm (17.68" × 16.57" × 6.69") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014 |
| Datasheet Release Date | 2026-05-22 |
| Datasheet Document Name | NVR5216-16P-XI_S0_datasheet_20260521 |
| A&E Document | NVR5216-16P-XI_A&E_20261012144237 (2023-10-29) |
| User Manual Documents | HDD INSTALLATION GUIDE_V1.0.3 (2026-05-27); Dahua Network Video Recorder_User Manual_V2.4.2 (2026-05-27); Network Video Recorder_Quick Start Guide_V1.0.0 (2026-05-27) |
