By Dahua
Dahua IPC-HFW3449T1-AS-PV 4MP WizSense PoE Camera with Active Deterrence
SKU: IPC-HFW3449T1-AS-PV
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- Smart Dual Light switches between IR and white light for full-color night vision.
- Active deterrence uses a loud siren and bright light to warn off intruders.
- 120dB True WDR delivers clear images against strong backlight.
- Built-in microphone and speaker for real-time two-way audio.
- IP67 weatherproof rated for -40°C to +60°C outdoor use.
- SMD 4.0 detects only people and vehicles to reduce false alarms.
- Supports up to 512GB microSD card for local recording.

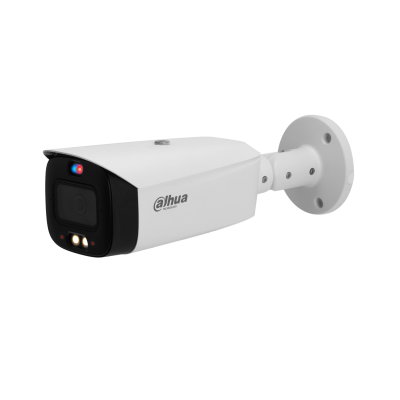

Dahua IPC-HFW3449T1-AS-PV 4MP WizSense PoE Camera with Active Deterrence
Details
4MP Imaging with F1.0 Fixed-Focal Lens
The Dahua DH-IPC-HFW3449T1-AS-PV is a 4MP Smart Dual Light Active Deterrence fixed-focal bullet WizSense network camera. It uses a 1/2.7-inch CMOS sensor and delivers images up to 2688 × 1520 at 25/30 fps. The camera is available with a 2.8 mm or 3.6 mm fixed-focal lens, with a maximum F1.0 aperture to support image capture in low-light monitoring environments.
Smart Dual Light and Active Deterrence
The camera combines IR and warm-light illumination, with an illumination distance of up to 30 m for each light source. When a target is detected, the smart dual-light function can activate warm light for full-color event recording. For deterrence, the camera supports red and blue warning lights, sound alarms, customized voice messages, and a built-in speaker. The built-in dual microphone and speaker also support two-way talk.
AI-Based Perimeter Protection
Intelligent monitoring functions include intrusion, tripwire, stay detection, loitering detection, and full-image face detection. Intrusion and tripwire functions support human and vehicle classification to help focus event detection on relevant targets. SMD 4.0 helps distinguish human and vehicle targets from other moving objects, while AcuPick works with compatible backend devices to help locate target events in live and recorded video.
Specification
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE); 0.0003 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 101°; V: 53°; D: 120° 3.6 mm: H: 82°; V: 44°; D: 96° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) |
| DORI | |
| 2.8 mm Lens | 2.8 mm |
| Detect | 66.0 m (216.54 ft) |
| Observe | 26.4 m (86.61 ft) |
| Recognize | 13.2 m (43.31 ft) |
| Identify | 6.6 m (21.65 ft) |
| 3.6 mm Lens | 3.6 mm |
| Detect | 78.0 m (255.91 ft) |
| Observe | 22.2 m (102.36 ft) |
| Recognize | 15.6 m (51.18 ft) |
| Identify | 7.8 m (25.59 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| SMD | SMD 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| AI Coding | AI H.265; AI H.264 \*Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@ (1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@ (1 fps–25/30 fps) \*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704× 576/704×480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE11 Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on); 8.8 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72"× 3.33") (L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
