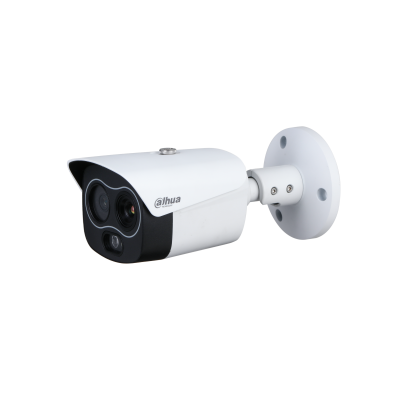

Dahua TPC-BF1241-S2 4MP Thermal Hybrid Bullet Camera with Smoking Detection
SKU: TPC-BF1241-S2
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- True 256x192 thermal imaging reads heat signatures in total darkness, fog, and haze
- Dual-spectrum design pairs thermal detection with a 4MP visible lens for identification
- Detect people and vehicles up to 417m — day or night
- IP67 weatherproof housing rated for harsh outdoor environments
- IR illumination reaches 30m for clear visible-light night vision
- PoE or 12VDC power; Micro SD card support up to 256G
- H.265 compression cuts bandwidth and storage costs
Dahua TPC-BF1241-S2 4MP Thermal Hybrid Bullet Camera with Smoking Detection
Details
Dual-Spectrum Thermal & Visible Imaging Architecture
TPC-BF1241-S2 is a thermal network mini hybrid bullet camera designed for perimeter protection, heat monitoring, and intelligent video surveillance. It combines a 256 × 192 vanadium oxide uncooled focal plane detector with a 4 MP progressive-scan CMOS visible channel, allowing operators to review both thermal information and visible scene details from one compact camera.
Optical Lens Configurations & Wireless Options
The product family provides selectable lens configurations for different monitoring distances and scene layouts. Depending on the model variant, the thermal lens is available in 3.5 mm, 7 mm, or 10 mm, while the visible-light lens is available in 4 mm, 8 mm, or 12 mm. Wi-Fi is available on designated model variants only and should be selected according to the ordering model.
Intelligent Video Analytics & Multi-Spectrum Fusion
For intelligent monitoring, the camera supports heat detection, tripwire, intrusion, cold and hot spot tracing, human and vehicle classification, smoking detection, and call detection. Thermal and visible channels can be fused using three image fusion modes, while 18 color palettes help operators review thermal scenes in different visual presentations.
Hardware Deployment, Active Deterrence & Environmental Ingress
With PoE and 12 VDC ±20% power options, built-in white light and audio alarms, Micro SD storage support up to 256 GB, and IP67 protection, TPC-BF1241-S2 is suited to factories, parking areas, villas, perimeter zones, and other small to medium monitoring scenes.
Specification
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Max. Resolution | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | < 40 mK (@f/1.0, 25 Hz, 300 K) |
| Field of View | 3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° 10 mm: H: 17.3°; V: 13.1° |
| Close Focus Distance | 3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) 10 mm: 2 m (6.56 ft) |
| Detection Distance① | 3.5 mm: Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) 10 mm: Vehicle: 1,282 m (4,206.04 ft); Human: 417 m (1,368.11 ft) |
| Recognition Distance② | 3.5 mm: Vehicle: 110 m (360.89 ft); Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) 10 mm: Vehicle: 314 m (1,030.18 ft); Human: 107 m (351.05 ft) |
| Identification Distance③ | 3.5 mm: Vehicle: 56 m (183.73 ft); Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) 10 mm: Vehicle: 159 m (521.65 ft); Human: 54 m (177.17 ft) |
| Aperture | F1.0 |
| Digital Detail Enhancement (DDE) |
Yes |
| Digital Zoom | 16 levels |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 90°; 180°; 270° |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Fusion Mode | 3 (Warm color; Cool color; Ironred) |
| Visible | |
| Image Sensor | 1/2.7'' CMOS |
| Max. Resolution | 2336 (H) × 1752 (V) |
| Pixel | 4 MP |
| Electronic Shutter Speed | 1/30,000 s–1 s |
| Min. Illumination | Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| IR Illumination Distance | 30 m (98.43 ft) |
| IR Illuminator On/Off Control | Auto; Manual |
| Aperture | 4 mm: F1.6 8 mm: F2.0 12 mm: F2.0 |
| Field of View | 4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° 12 mm: H: 22°; V: 16.6° |
| Focus Control | Fixed |
| Close Focus Distance | 4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) 12 mm: 2.5 m (8.2 ft) |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | ≥55 dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 90°; 180°; 270° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire; Intrusion |
| Advanced Intelligence | Heat Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection |
| Video and Audio | |
| Video Compression | H.265; H.264; H.264H; MJPEG |
| Resolution | Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default)Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) |
| Frame Rate | Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Network | |
| Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Edge Storage | Micro SD card (256 G) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE 8 and later Google: 42 and earlier Firefox: 42 and earlier |
| User/Host | 10 |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Port | |
| Network | 1 × RJ-45 (10/100 Base-T) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| RS-485 | 1 pair |
| Wi-Fi Optional | Standard No.: 802.11b/g/n(1x1) Frequency: 2.4 GHz Transmission rate: 150 Mbps Transmission distance: 150 m (no shield, no disturbance) Transmission power (Max.): at fc +/-22 MHz -20 dBr; at fc +/-40 MHz -28 dBr; at fc > +/-60 MHz -45 dBr |
| Power | |
| Power Supply | 12 VDC ± 20%; PoE |
| Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to ﹢158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Product Dimensions | 205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'') (L × W × H) |
| Packaging Dimensions | 279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'') (L × W × H) |
| Net Weight | ≤ 0.9 kg (1.98 lb) |
| Gross Weight | ≤ 1.3 kg (2.87 lb) |
| Heat Detection Distance | |
| 3.5 mm | 45 m (147.64 ft) |
| 7 mm | 86 m (282.15 ft) |
| 10 mm | 123 m (403.54 ft) |
| Perimeter Protection Distance | |
| 3.5 mm Distance (Human) | 24.5 m (80.38ft) |
| 3.5 mm Distance (Vehicle) | 72.5 m (237.86 ft) |
| 7 mm Distance (Human) | 49 m (160.76 ft) |
| 7 mm Distance (Vehicle) | 146.5 m (480.64 ft) |
| 10 mm Distance (Human) | 70 m (229.66ft) |
| 10 mm Distance (Vehicle) | 209 m (685.70 ft) |
