By Dahua

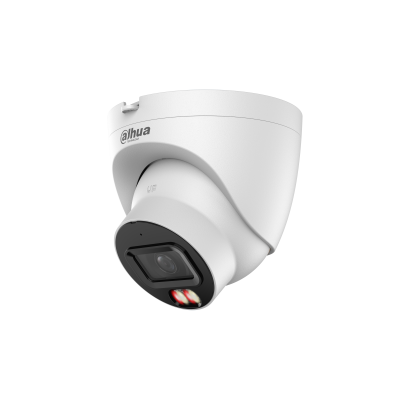

Dahua DH-IPC-HDW21249T-S-IL 12MP Smart Dual Light WizSense Eyeball PoE Cameras

10 in stock
SKU: DH-IPC-HDW21249T-S-IL
Write Review
$0.00
？Help me pick a ip camera
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • Crystal-clear 12MP resolution (4480×2512) — 4× more detail than 1080p for identifying faces and license plates
  • Smart Dual Light technology auto-switches between IR and white light for vivid color images at night
  • Built-in microphone captures real-time audio — hear alarms, conversations, or suspicious activity
  • Deep learning-based human and vehicle classification reduces false alerts from leaves, animals, or rain
  • Supports up to 256GB MicroSD card for weeks of local recording without a separate NVR
  • IP67 weatherproof housing withstands rain, dust, and extreme temperatures from –40°C to +60°C
  • Flexible power via 12V DC or PoE (802.3af) — simplifies installation for any setup
Datasheet Link
User Manual
Quick Start Guide
View details

12MP Smart Dual Light WizSense Eyeball Network Camera with Audio

Ultra HD Clarity for Critical Details

With 12MP resolution (4480×2512), this Dahua camera captures four times the detail of standard 1080p cameras. You can clearly read license plates, identify faces, and monitor wide areas without losing sharpness. The 2.8mm fixed lens provides a 112° horizontal field of view, covering large entrances, parking lots, or warehouse aisles in a single shot.

Smart Dual Light — Color Night Vision Without Guesswork

The Smart Dual Light system combines IR LEDs and warm white LEDs, automatically switching between three illumination modes based on scene activity. In complete darkness, the camera delivers clear black-and-white IR images up to 30 meters. When motion is detected, it can trigger white light for full-color details, helping you identify intruders or verify events in real time.

Built-in Audio for Complete Situational Awareness

A built-in microphone captures audio alongside video, so you hear what's happening — not just see it. This is invaluable for monitoring office environments, retail stores, or entry points where verbal warnings or conversations matter. No extra audio hardware or cabling is needed, saving installation time and cost.

Tough Enough for Any Outdoor Location

Rated IP67, this camera is fully protected against dust ingress and water jets, making it suitable for exposed outdoor installations. It operates reliably in temperatures from –40°C to +60°C, so you can mount it in freezing parking lots or sun-baked loading docks without worry. The metal and plastic housing resists corrosion and impact.

Complementary products

Quick buy
Dahua DHI-NVR4216-16P-4KS3 16 Channel AI PoE NVR with Face Detection
$460.84
Quick buy
Dahua DHI-NVR4108HS-8P-4KS3 8 Channel AI SMD Plus 4K PoE NVR
$0.00
Quick buy
Dahua DH-IPC-HFW3849T1-ZAS-PV 8MP Smart Dual Light Active Deterrence Varifocal Bullet Camera
$455.00
Quick buy
Dahua DH-IPC-HFW2841T-ZS 8MP WizSense Varifocal Bullet PoE Camera with Built-in Mic
$234.69
Quick buy
Dahua DH-SDT4E425-8P-GB-APV1 4MP 25x Auto Tracking Outdoor PTZ Camera
$836.79

Specification

Camera

Image Sensor 1/2.5" CMOS
Max. Resolution 4480 (H) × 2512 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (Warm light)
Up to 30 m (98.43 ft) (IR)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 112°; V: 58°; D: 136°
3.6 mm: H: 95°; V: 53°; D: 109°
Iris Control Fixed
Close Focus Distance 2.8 mm: 3.5 m (11.48 ft)
3.6 mm: 4 m (13.12 ft)

DORI

Lens Detect
2.8 mm 98.9 m
( 324.48 ft)
3.6 mm 105.4 m
( 345.80 ft); \*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classifcation and accurate detection of vehicle and human)
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 4480 × 2512@(1–15 fps)/3072 × 1728@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
\*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 2 streams
Resolution 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR;CBR
Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Smart Dual Light Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes

Audio

Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE;
Chrome;
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS;Android
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 2.3 W (12 VDC); 3.0 W (PoE);
Max.: 6.2 W (12 VDC); 7.2 W (PoE) (H.265 + intelligence on + illuminator intensity)

Environment

Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67

Structure

Casing Material Inner core: Metal;
Cover: Plastic
Product Dimensions 109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
Net Weight 0.38 kg (0.84 lb)
Gross Weight 0.52 kg (1.15 lb)
Class Date
Datasheet 2024-12-31

FAQ

Does this camera work with my existing POE switch or NVR?

Yes, it supports standard PoE (802.3af) and 12V DC power. It is ONVIF compatible, so it works with most third-party NVRs and POE switches. For best results, use a Dahua NVR to access all Smart Dual Light and AI features.
Can I use this camera indoors for an office or retail space?

Absolutely. While it is IP67 rated for outdoor use, its compact eyeball form factor and built-in mic make it ideal for indoor office camera applications. The 112° wide angle covers open-plan areas, and the audio lets you monitor customer interactions or employee areas.
How does the human and vehicle detection work?

The camera uses deep learning algorithms to distinguish people and vehicles from other moving objects like animals, leaves, or rain. You receive alerts only for relevant events, reducing false alarms. This is especially useful for busy commercial sites or parking lots.
What is the maximum SD card capacity supported?

The camera supports MicroSD cards up to 256GB. This allows for weeks of continuous recording locally, even if your NVR is offline. Use a high-endurance card for best reliability in continuous write operations.
