By Dahua

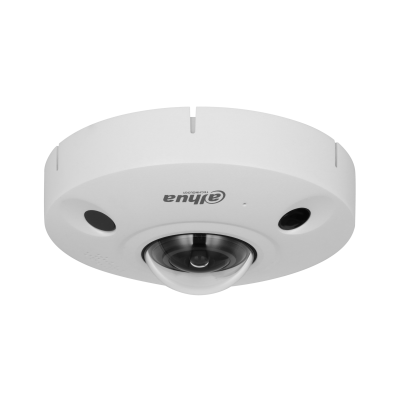

Dahua DH-IPC-EBW81242-AS-S2 360 Degree 12MP WizMind Fisheye Network Camera
SKU: DH-IPC-EBW81242-AS-S2
Regular price
$594.72
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 360° panoramic fisheye lens covers an entire room — no blind spots, one camera replaces multiple fixed units.
- 12MP ultra HD resolution (4000×3000) captures crisp details for license plates, faces, and activity logs.
- Built-in dual mic and speaker enable two-way talk — hear visitors and respond directly from your phone.
- 10m IR night vision delivers reliable after-dark monitoring without external illuminators.
- IP67 weatherproof and IK10 vandal-resistant housing survives rain, dust, and physical impact.
- Supports up to 256GB microSD card for weeks of local recording — no NVR required for basic storage.
- Flexible power via 12V DC or PoE+ (802.3at) simplifies installation in any location.
Dahua DH-IPC-EBW81242-AS-S2 360 Degree 12MP WizMind Fisheye Network Camera
Dahua 12MP Fisheye WizMind Network Camera – 360° Panoramic View
One Camera, Zero Blind Spots
Crystal-Clear 12MP Detail
Built-In Audio and Smart Detection
Rugged Build for Any Environment
Specification
Camera
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 4000 (H) × 3000 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | \> 56 dB |
| Illumination Distance | 1.85 mm: Up to 10 m (32.81 ft) (IR LED) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED) |
Lens
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 1.85 mm |
| Max. Aperture | F2.0 |
| Field of View | 1.85 mm: H: 185°; V: 180° |
| Iris Control | Fixed |
| Close Focus Distance | 1.85 mm: 0.4 m (1.31 ft) |
Smart Event
| Heat Map | Yes |
Intelligence
| IVS (Perimeter Protection) | Tripwire, intrusion (the two functions support accurate detection of human) |
| People Counting | Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time. Supports 4 queue management rules to count number of people queuing and queue time in real time, and it will trigger alarm linkage when the number of people queued or queue time exceeds the threshold. It can display and export reports based on month, week, day or custom time. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Fisheye
| Installation | Ceiling mount; wall mount; ground mount |
| Decoding Mode | Front-dewarp;Back-dewarp |
| Display mode | Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+3R. 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. \*O: Fisheye image view; P: Panoramic image view; R: Region image view. Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid). |
Video
| Video Compression | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 4000 × 3000@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–17/17 fps) Fisheye mode: 1O (4000 × 3000) 1P (4096 × 1024) 2P (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) \*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 12M (4000 × 3000); 8M (3280 × 2480); 6M (2880 × 2160); 3M (2048 × 1536) ; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 8 kbps–16384 kbps H265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM; G.723 |
Alarm
| Alarm Event | No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception |
Network
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20.0 |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Management Software | Smart PSS;DSS;DMSS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
Power
| Power Supply | 12 VDC/PoE+ |
| Power Consumption | Basic: 6.5 W (12 V DC); 6.1 W (PoE+) Max. (ICR + IR intensity): 13 W (12V DC); 13.9 W (PoE+) Heating: 3 W (12 V DC); 3 W (PoE+) |
| ePoE | No |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67; IK10 |
Structure
| Casing Material | Metal |
| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35" × Φ5.90") |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.21 kg (2.67 lb) |
