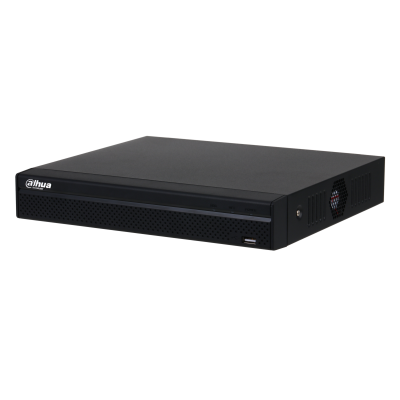

Dahua DHI-NVR4116HS-8P-4KS3 16-Channel Compact 4K NVR with 8 PoE Ports

Q: Who is this compact 16-channel NVR best suited for?

t is a practical choice for installers and property owners who need up to 16 cameras but only require eight direct PoE connections at the recorder. Its compact 260 × 232.5 × 47.6 mm chassis suits smaller equipment cabinets and space-limited installations.

Q: How can I connect 16 cameras when the recorder has only eight PoE ports?

Up to eight compatible cameras can connect directly to the built-in PoE ports. Additional IP cameras can join the recorder through an external network or PoE switch connected to the same LAN, up to the recorder’s 16-channel access limit.

Q: Does enabling AI change the recorder’s bandwidth or decoding capacity?

Yes. With recorder AI disabled, bandwidth reaches 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing. When AI is enabled, those limits become 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Decoding capacity also varies by resolution and AI mode.

Q: Which AI features work without relying on an AI camera?

The recorder itself provides four-channel SMD Plus for secondary human and motor-vehicle filtering. Functions such as perimeter protection, face detection and recognition, people counting, stereo analysis and heat maps require compatible cameras that perform those analytics.

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote

Ships Same or Next Day

Over $99 Free Shipping

30-Day Returns

(HDD not included)

16-Channel Compact NVR: Manages up to 16 IP cameras in a space-saving 1U chassis suited to homes, shops and small offices.
8 Built-In PoE Ports: Powers eight cameras directly with a 72 W total budget, while additional network cameras connect through an external switch.
4-Channel SMD Plus: Recorder-based filtering distinguishes humans and motor vehicles from irrelevant motion caused by rain, leaves or changing light.
12 MP Camera Access: Supports IP cameras up to 12 MP, 4K HDMI output and decoding of up to eight 1080p streams at 30 fps.
Single-Bay Storage: One SATA interface supports an HDD up to 20 TB for local recording, playback and event search.
Smart Camera Integration: Compatible cameras can provide perimeter protection, face analytics, people counting, stereo analysis and heat-map functions.

Datasheet Link

View details

Dahua DHI-NVR4116HS-8P-4KS3 16-Channel Compact 4K NVR with 8 PoE Ports

Details

A Compact Recorder for Expandable 16-Camera Systems

The Dahua DHI-NVR4116HS-8P-4KS3 is a compact 16-channel network video recorder designed for installers building space-efficient surveillance systems in homes, retail stores and small commercial properties. Eight integrated PoE ports simplify the first stage of installation by carrying power and video over the same Ethernet cables. The remaining channels can be added through an external network switch, allowing the system to expand without replacing the recorder.

Practical AI Filtering and High-Resolution Viewing

Four-channel SMD Plus by Recorder applies secondary filtering to human and motor-vehicle motion events, reducing alarms caused by leaves, rain and lighting changes. Compatible AI cameras can supply additional functions such as six-channel perimeter protection, face detection and recognition, people counting, stereo analysis and heat maps. These camera-side capabilities depend on the connected camera rather than being generated independently by the recorder.

Storage, Decoding and Installation Essentials

Up to 12 MP Camera Access: Supports high-resolution IP video with 160 Mbps incoming and recording bandwidth when recorder AI is disabled.
4K Local Display: The HDMI output reaches 3840 × 2160, while VGA supports up to 1920 × 1080 for flexible monitor setups.
One SATA Drive Bay: Accepts one surveillance HDD with a supported capacity of up to 20 TB; the hard drive is not specified as included.
Efficient PoE Deployment: Eight IEEE 802.3af/at ports share a 72 W budget, with a maximum output of 25.5 W on a single port.

Specification

System
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web, Local GUI
AI
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels)	All channels (6 targets/s)
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels)	All channels (6 targets/s)
SMD Plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Audio and Video
Access Channel	16 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome; IE; Safari; Edge; Firefox
Recording Playback
Multi-channel Playback	Up to 16 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm	Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm	Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection
Intelligent Alarm	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage	Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port	8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply	53 VDC, 1.81 A
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W
Net Weight	0.92 kg (2.03 lb)
Gross Weight	2.05 kg (4.52 lb)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions	374 mm × 119 mm × 311 mm (14.72" × 4.69" × 12.24") (W × D × H)
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

FAQ

Who is this compact 16-channel NVR best suited for?

t is a practical choice for installers and property owners who need up to 16 cameras but only require eight direct PoE connections at the recorder. Its compact 260 × 232.5 × 47.6 mm chassis suits smaller equipment cabinets and space-limited installations.

How can I connect 16 cameras when the recorder has only eight PoE ports?

Up to eight compatible cameras can connect directly to the built-in PoE ports. Additional IP cameras can join the recorder through an external network or PoE switch connected to the same LAN, up to the recorder’s 16-channel access limit.

Does enabling AI change the recorder’s bandwidth or decoding capacity?

Yes. With recorder AI disabled, bandwidth reaches 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing. When AI is enabled, those limits become 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Decoding capacity also varies by resolution and AI mode.

Which AI features work without relying on an AI camera?

The recorder itself provides four-channel SMD Plus for secondary human and motor-vehicle filtering. Functions such as perimeter protection, face detection and recognition, people counting, stereo analysis and heat maps require compatible cameras that perform those analytics.
