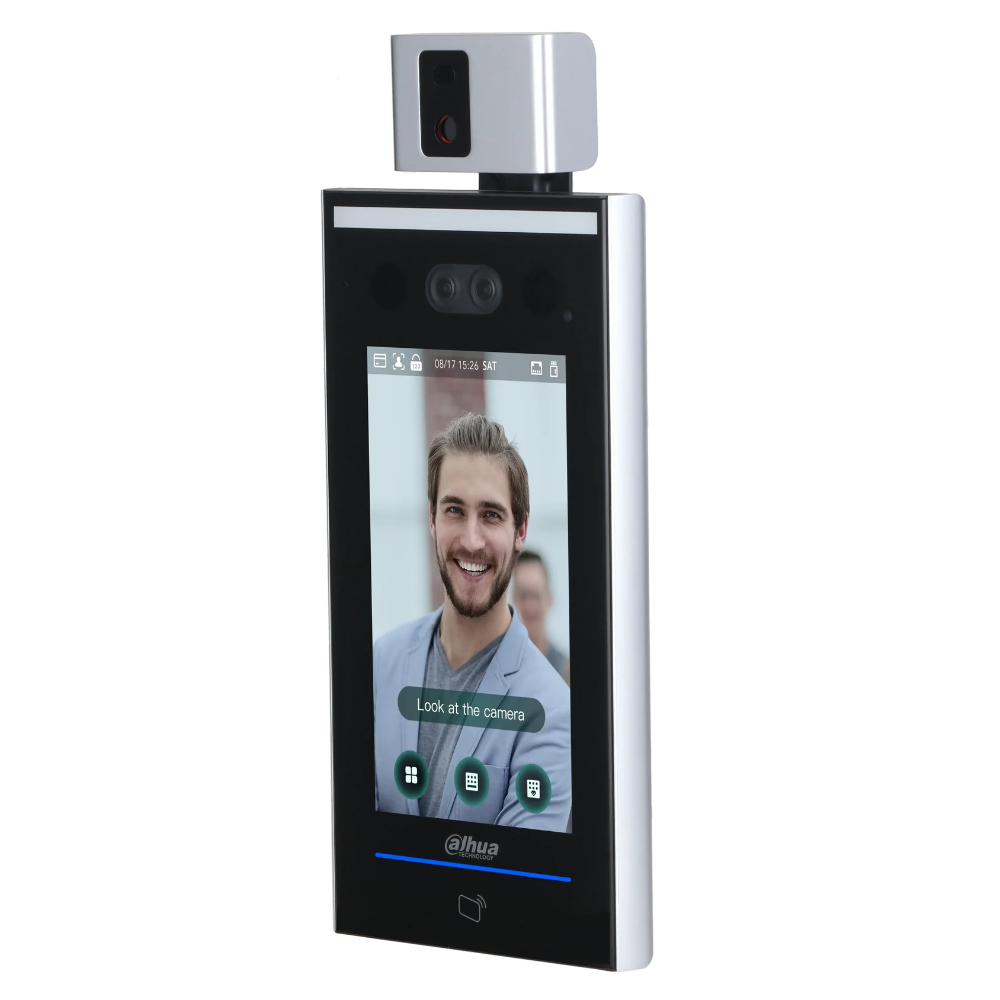

Dahua DHI-ASI7223X-A-V1-T1 Face Recognition Terminal
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
- Face, PIN, or remote unlock — one terminal covers every entry method
- Enrolls up to 100,000 faces for high-traffic sites
- 2MP WDR dual camera plus 7-inch 1024x600 LCD for live video calls
- Controls 2 doors with 2 relay outputs
- 2 Ethernet ports, PoE ready, for clean single-cable wiring
- ONVIF, RTSP, SIP, OSDP, and P2P protocol support
- CE and FCC certified; 12V 2A adapter included
One Terminal for Every Way In
The Dahua DHI-ASI7223X-A-V1-T1 verifies faces, PIN codes, and remote unlock commands on a single 7-inch terminal. It enrolls up to 100,000 faces, so busy lobbies and factory gates keep moving without delays. Two relay outputs let one unit control 2 doors, which cuts your access control hardware bill in half.
See and Talk to Visitors Face to Face
A 1/2.8-inch 2MP CMOS dual camera with 120 dB WDR cuts through glare and shadow at glass entrance doors. The 1024x600 capacitive LCD shows a live video feed, so reception staff confirm who is there before they grant access. Two-way talk turns the terminal into a full video door phone.
Wired for Fast, Low-Cost Installation
Two Ethernet ports with PoE support carry power and data over a single cable, so installers skip the extra conduit run. ONVIF, RTSP, SIP, OSDP, and P2P protocols connect the terminal to the NVR or access platform you already run. The 12V 2A adapter ships in the box, and the unit draws only 24W.
Built for Busy Indoor Entry Points
An aluminium alloy frame with tempered glass and a 2.5D curved panel handles daily contact at front desks and turnstiles. The terminal runs from +10°C to +35°C, which matches indoor lobbies and reception areas. CE and FCC certifications confirm compliant operation in the US market.
