By Dahua

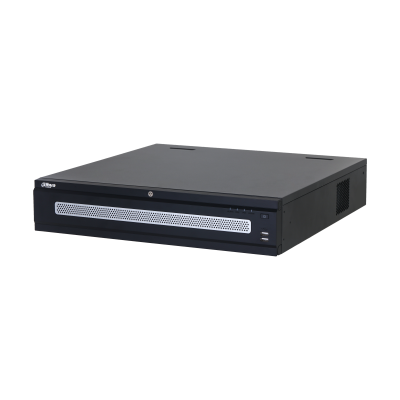

Dahua DHI-NVR608H-32-XI 32 Channel AI WizMind NVR
SKU: DHI-NVR-608H-32-XI
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 32-channel IP camera input with up to 12MP recording resolution per channel
- AI by Recorder: 8-channel face detection & recognition, 32-channel SMD Plus, perimeter protection
- Dual SATA HDD bays supporting up to 20TB total storage (2 x 10TB max)
- Smart H.265+ compression reduces bandwidth and storage usage by up to 75%
- Free remote access via DMSS, Smart PSS, or DSS apps on iOS and Android
- Compatible with all ONVIF Profile S/G/T IP cameras for flexible system expansion
- 2 x Gigabit Ethernet ports for high-bandwidth camera connections and network failover
Dahua DHI-NVR608H-32-XI 32 Channel AI WizMind NVR
Details
Enterprise 32-Channel Processing with 8K Ultra-HD Output
The DHI-NVR608H-32-XI is a 32-channel enterprise AI Network Video Recorder engineered for high-density surveillance projects such as campuses, commercial centers, and logistics hubs. Powered by an industrial-grade processor running embedded Linux, it supports cameras up to 32 MP resolution with an incoming bandwidth of up to 1280 Mbps (640 Mbps with AI enabled). The NVR features 4 HDMI and 2 VGA ports, including 8K (7680 × 4320) video output on HDMI3 and independent heterogeneous multi-screen matrixing for flexible security monitoring.
Advanced WizMind AI, AcuPick Search, and Face Recognition
Equipped with powerful on-board deep-learning algorithms, the NVR provides comprehensive edge intelligence. It delivers 32-channel Perimeter Protection (with 10 IVS rules per channel) and 32-channel SMD Plus to filter false alarms from foliage or weather. The system supports AcuPick search across 8 channels (or all channels via AI camera) for instant target retrieval, as well as on-board Face Recognition backed by a massive 300,000-image database across 40 distinct libraries.
Flexible 8-Bay Storage, RAID Reliability, and Enterprise Connectivity
- High-Capacity 8-Bay Storage: 8 SATA ports accommodate up to 20 TB per hard drive (up to 160 TB total), featuring RAID 0/1/5/6/10 data redundancy and drive hot-swapping.
- Dual 2.5G Multi-Gigabit Ports: 2 RJ-45 (10/100/1000/2500 Mbps) Ethernet interfaces support multi-address, load balancing, and network fault tolerance modes.
- Comprehensive Video Metadata: Analyzes 8 channels of real-time metadata, classifying 9 human body attributes, motor vehicle characteristics, and non-motor vehicles.
- Industrial Alarm & Audio Integration: Includes 16 alarm inputs, 8 alarm outputs, 1-ch audio input / 2-ch audio output (RCA), RS-232, RS-485, and eSATA expansion.
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; PPE Detection |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance of AI by Recorder (Number of Channels) | 8 channels |
| AcuPick Performance of AI by Camera (Number of Channels) | All channels (64 targets/s) |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | Simultaneous mode: 32 channels, 10 IVS rules for each channel Heterogeneous mode: 24 channels, 10 IVS rules for each channel Refer to the information on video output for details on the mode |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (64 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | Simultaneous mode: 8 channels (up to 12 face images/s each channel) Heterogeneous mode: 5 channels (up to 12 face images/s each channel) Refer to the information on video output for details on the mode |
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (64 targets/s) |
| Face Recognition | |
| Face Database Capacity | Up to 40 face databases with 300,000 images, with a total capacity of 48 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | Simultaneous mode: 32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder),image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s Refer to the information on video output for details on the mode |
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (64 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (128 targets/s) |
| Video Metadata | |
| Metadata Performance of AI by Recorder (Number of Channels) | 8 channels |
| Metadata Performance of AI by Camera (Number of Channels) | All channels (64 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling, |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | All channels (64 targets/s) |
| License Plate Database Capacity | Blocklist and allowlist: 20,000 |
| Audio and Video | |
| Access Channel | 32 channels |
| Network Bandwidth | AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing |
| Resolution | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30 fps; 3-channel 24 MP@30 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 32-channel 720p@30 fps |
| Video Output | 2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (simultaneously outputs video sources for all the HDMI1-4 and VGA1-2 ports) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs heterogeneous video sources for HDMI1–4) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF (Profile S/profile T/Profile G); CGI; SDK |
| Browser | Chrome IE 9 or later Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Backup Method | USB device and network |
| Playback Mode | 1\. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2\. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm | |
| General Alarm | Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| Disk Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 × A/B |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Network Port | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <18 W (without HDD) |
| Net Weight | 6.40 kg (14.11 lb) (without HDD) |
| Gross Weight | 10.35 kg (22.82 lb) (without HDD) |
| Product Dimensions | 444.0 mm × 456.6 mm × 95.0 mm (17.48" × 17.98" × 3.74") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017 |
| Datasheet Datum | 2026-05-29 |
| Datasheet Titel | NVR608H-32-XI\_S0\_datasheet\_20260529 |
| Datasheet Sprache | English |
| Datasheet Typ | |
| Datasheet Herunterladen | [NVR608H-32-XI_S0_datasheet_20260529](https://materialfile.dahuasecurity.com/uploads/cpq/51037/datasheet/DHI-NVR608H-32-XI_S0_datasheet_20260529.pdf "NVR608H-32-XI_S0_datasheet_20260529") |
