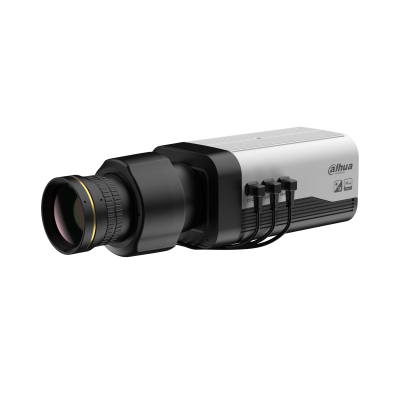

Dahua DH-IPC-HF7442F-Z-X 4MP 60fps WizMind Box Camera with ANPR & Face Recognition
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- High-Frame-Rate 4MP Video: Captures 2688 × 1520 video at up to 50/60 fps for fast-moving commercial and traffic scenes.
- Concurrent AI Processing: Runs two supported intelligent functions simultaneously, including selected face, people-counting, PPE and IVS combinations.
- Advanced Vehicle Analytics: Supports ANPR, vehicle attributes, parking-space management and plate recognition for vehicles moving up to 60 km/h.
- Enterprise Face Management: Provides face detection and recognition with five face databases containing up to 200,000 face images.
- Professional Lens Flexibility: The C/CS lens mount supports DC-Iris and P-Iris control for project-specific optical configurations.
- Extensive Integration: Includes five video streams, 1TB MicroSD support, audio, alarms, RS-485, BNC output and multiple power options.
Dahua DH-IPC-HF7442F-Z-X 4MP 60fps WizMind Box Camera with ANPR & Face Recognition
Details
High-Speed Imaging for Professional Video Analytics
The Dahua DH-IPC-HF7442F-Z-X is a 4 MP WizMind box network camera for enterprise, industrial, traffic and access-control projects that require configurable optics and advanced analytics. Its 1/1.8-inch CMOS sensor outputs 2688 × 1520 video at up to 50/60 fps, helping preserve useful detail in scenes involving fast-moving people or vehicles.
Configure Analytics Around the Application
The camera supports a broad set of intelligent functions, including face detection and recognition, ANPR, video metadata, people counting, PPE detection, perimeter protection and parking-space management. Two supported intelligent functions can operate simultaneously, allowing system designers to combine selected tasks such as face recognition with people counting or PPE detection with IVS.
- Face management: Supports five face databases containing up to 200,000 face images.
- ANPR: Recognizes plate and vehicle attributes at stated vehicle speeds of up to 60 km/h.
- AcuPick: Works with compatible back-end equipment to search for people, animals and motor vehicles.
- Edge storage: Supports MicroSD cards up to 1 TB, plus FTP, SFTP and NAS storage.
Build the Camera Around Project Requirements
The C/CS mount supports compatible DC-Iris and P-Iris lenses, allowing integrators to select optics for the required field of view and working distance. Professional interfaces include two audio inputs, one audio output, two alarm inputs, two alarm outputs, RS-485 and BNC video output. Power options include 12 VDC, 24 VAC, IEEE 802.3at PoE+ and ePoE.
Specification
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0005 lux@F1.2 (Color, 30 IRE); 0.0002 lux@F1.2 (B/W, 30 IRE) |
| S/N Ratio | >56dB |
| Lens | |
| Lens Mount | C/CS |
| Iris Control Type | DC-Iris; P-Iris |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long-distance mode. Supports self-learning, it filters out false alarms. Supports privacy protection. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection |
| Face Recognition | There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting; privacy protection. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts); Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protection |
| Heat Map | Yes |
| ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles. |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates flow statistics for people, motor vehicles and non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella. privacy protection. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main Stream: 2688 × 1520@(1–50/60 fps); Sub stream: 1920 × 1080 @(1–25/30 fps); Third stream: 1920 × 1080@(1–25/30 fps); Fourth stream: 1920 × 1080@(1–25/30 fps); Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 5 streams |
| Resolution | 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–10240 kbps; H.265: 12 kbps–10240 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 150 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 2 channels (3.5mm JACK port) |
| Audio Output | 1 channel (3.5mm JACK port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
| Power Consumption | Basic: 8.4 W (12 VDC); 8 W (24 VAC); 6.3 W (PoE); Max. (WDR+ intelligence on+ ICR switch): 17.1 W (12 VDC); 16.5 W (24 VAC); 15 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | 10–95% |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L × W × H) |
| Net Weight | 0.80 kg (1.76 lb) |
| Gross Weight | 1.02 kg (2.25 lb) |
| General Parameter | |
| Accessories | PFL1040-A12PE (DH 12 MP 1/1.7" F1.2 10-40 mm Motorized Vari-Focal Lens); TF-P100/512G (P100 microSD Memory Card); PFM900-E (Integrated Mount Tester); PFM320D Series (12V 2A Power Adapter); PFB110W (Wall Mount Bracket); PFB121W (Wall Mount Bracket) |
| Datasheet Document | IPC-HF7442F-Z-X_S0_datasheet_20260427 (Release Date: 2026-04-28) |
| User Manuals | Dahua Network Camera Web 3.0_Operation Manual_V2.1.9 (Release Date: 2026-10-10); Dahua Network Camera Web 5.0_Operation Manual_V1.3.1 (Release Date: 2026-10-10); Dahua Box Network Camera_Quick Start Guide_V1.0.0 (Release Date: 2026-10-10); Dahua Box Network Camera_Installation Guide_V1.0.0 (Release Date: 2026-10-10) |
| A&E Document | IPC-HF7442F-Z-X_A&E_20260917223716 (Release Date: 2023-01-16) |
