Dahua DH-IPC-HFW2449TL-S-PROX 4MP WizColor X Bullet Camera with AI-ISP 2.0
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 4MP WizColor X Imaging: A 1/1.8-inch sensor, F0.8 aperture and AI-ISP 2.0 support detailed color imaging in very low light.
- Smooth Full-Resolution Video: Outputs 2560 × 1440 video at up to 25 or 30 fps for clearer motion review.
- Human and Vehicle Filtering: Tripwire, intrusion and SMD Plus focus event detection on relevant people and vehicles.
- Super AI Coding: Object detection, scene recognition and ROI processing improve bandwidth and storage efficiency.
- Dual Microphones and Edge Storage: Built-in dual microphones capture audio, while MicroSD storage supports capacities up to 512 GB.
- Outdoor Installation: A metal IP67 enclosure supports IEEE 802.3af PoE, 12 VDC and wide operating temperatures.
Dahua DH-IPC-HFW2449TL-S-PROX 4MP WizColor X Bullet Camera with AI-ISP 2.0
Details
WizColor X Imaging for Challenging Low-Light Scenes

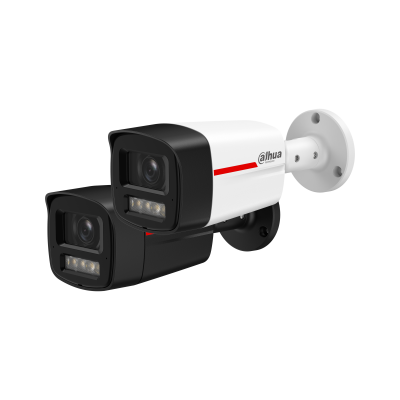

The Dahua DH-IPC-HFW2449TL-S-PROX is a 4 MP WizColor X fixed-focal bullet network camera developed for entrances, storefronts, parking areas and building perimeters. Its 1/1.8-inch CMOS sensor, F0.8 aperture and AI-ISP 2.0 are designed to preserve color layers and moving-target details when available light is limited.
The camera outputs 2560 × 1440 video at up to 25 or 30 fps. Four built-in warm-light illuminators provide additional lighting when required, with a stated range of up to 20 metres for the 2.8 mm lens and 30 metres for the 3.6 mm version.
Choose Coverage Width for the Installation
- 2.8 mm lens: Provides a 106° horizontal field of view for broader entrances and open areas.
- 3.6 mm lens: Provides an 87° horizontal field of view for more concentrated scene coverage.
- Super AI Coding: Uses object detection, scene recognition and ROI-based processing to improve encoding efficiency.
Capture Relevant Events with Local Evidence
Tripwire and intrusion rules classify human and vehicle targets, while SMD Plus filters motion events according to target type. Built-in dual microphones add audio capture to compatible monitoring workflows. For local recording, the camera supports MicroSD cards up to 512 GB, along with FTP, SFTP and NAS storage options. Its metal IP67 enclosure supports outdoor deployment with either 12 VDC or IEEE 802.3af PoE power.
Specification
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.00007 lux@F0.8 |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 20 m (65.62 ft) (Warm light); 3.6 mm: Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotation: 0° to 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M18 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F0.8 |
| Field of View | 2.8 mm: H: 106°; V: 56°; D: 125°; 3.6 mm: H: 87°; V: 47°; D: 103° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.8 m (5.91 ft); 3.6 mm: 2.6 m (8.53 ft) |
| DORI Distance | 2.8 mm: Detect 59.3 m (194.55 ft), Observe 23.7 m (77.76 ft), Recognize 11.9 m (39.04 ft), Identify 5.9 m (19.36 ft); 3.6 mm: Detect 71.3 m (233.92 ft), Observe 28.5 m (93.50 ft), Recognize 14.3 m (46.92 ft), Identify 7.1 m (23.29 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) (Includes smart codec technology, Smart H.265+ and Smart H.264+) |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); Third stream: 352 × 288@1 fps/352 × 240@1 fps |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (supports 90°/270° with 2560 × 1440 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; invalid access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning; SSL/TLS1.2; AES 256 |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 1.9 W (12 VDC); 2.6 W (PoE); Max.: 5.6 W (12 VDC); 6.7 W (PoE) (Intelligence + WDR + illumination on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure & General | |
| Model | IPC-HFW2449TL-S-PROX |
| Product Description | 4MP WizColor X Fixed-focal Bullet WizSense Network Camera |
| Casing Material | Metal |
| Product Dimensions | 205.6 mm × 80.2 mm × 76.2 mm (8.09" × 3.16" × 3.00") (L × W × H) |
| Net Weight | 0.61 kg (1.34 lb) |
| Gross Weight | 0.76 kg (1.68 lb) |
| Datasheet Document | IPC-HFW2449TL-S-PROX_S0_datasheet_20260925 (Release: 2026-09-25) |
