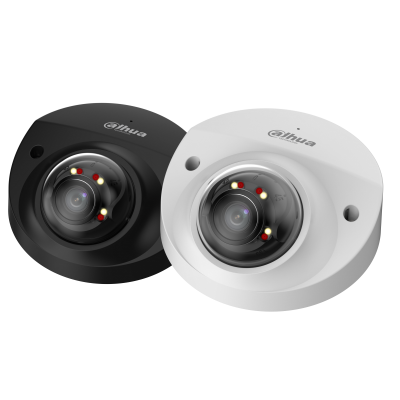

Dahua DH-IPC-HDBW2449F-AS-IL 4MP Smart Dual Light IK10 Dome Camera
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- Smart Dual Light: Uses infrared for discreet night monitoring and activates warm light to capture key target events in color.
- Vandal-Resistant Dome: IP67 weather protection and an IK10 metal enclosure suit exposed or publicly accessible installation areas.
- Human and Vehicle Detection: Tripwire, intrusion and SMD Plus help filter events according to relevant target categories.
- Flexible 4MP Video: Records 2688 × 1520 at up to 20 fps or 2560 × 1440 at up to 25/30 fps.
- Audio and Alarm Integration: Includes a built-in microphone, RCA audio input/output and one alarm input/output for system integration.
- Local Recording: Supports MicroSD cards up to 256 GB, plus FTP and SFTP storage for distributed recording workflows.
Dahua DH-IPC-HDBW2449F-AS-IL 4MP Smart Dual Light IK10 Dome Camera
Details
Vandal-Resistant Monitoring for Public and Commercial Areas
The Dahua DH-IPC-HDBW2449F-AS-IL is a 4 MP fixed-focal dome network camera designed for entrances, corridors, retail spaces, public facilities and other locations where exposed equipment may be vulnerable to impact. Its metal enclosure carries both IP67 weather protection and an IK10 impact rating, making it suitable for demanding indoor or outdoor installations.
Use Visible Light Only for Relevant Night Events
Smart Dual Light normally uses infrared illumination after dark. When a target enters the configured monitoring area, the warm light activates so the camera can capture key footage in color. After the target leaves, the camera returns to infrared monitoring. Both illumination modes have a stated maximum distance of 30 metres.
- 2.8 mm lens: Provides a 101° horizontal field of view for wider entrances and open areas.
- 3.6 mm lens: Provides an 83° horizontal field of view for more concentrated scene coverage.
- Intelligent filtering: Tripwire, intrusion and SMD Plus classify human and vehicle events.
Connect Audio, Alarms and Local Storage
A built-in microphone captures sound, while RCA audio input and output support additional audio integration. One alarm input and one alarm output allow the camera to interact with compatible external devices. Video can be stored on a MicroSD card up to 256 GB or sent to FTP and SFTP storage. Power is supplied through 12 VDC or IEEE 802.3af PoE.
Specification
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | ＞56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: -30° to 30°; Tilt: 0° to 80°; Rotation: 0° to 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 101°; V: 54°; D: 120°; 3.6 mm: H: 83°; V: 43°; D: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft); 3.6 mm: 1.7 m (5.58 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.66 ft), Observe 25.4 m (93.33 ft), Recognize 12.7 m (41.67 ft), Identify 6.4 m (21.00 ft); 3.6 mm: Detect 85.4 m (280.18 ft), Observe 34.2 m (112.20 ft), Recognize 17.1 m (56.10 ft), Identify 8.5 m (27.89 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps); sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 55.0 mm × Φ108.9 mm (2.17" × Φ4.29") |
| Net Weight | 0.41 kg (0.90 lb) |
| Gross Weight | 0.55 kg (1.21 lb) |
| General Parameter | |
| Product Model | IPC-HDBW2449F-AS-IL |
| Product Name | 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera |
| Datasheet File | IPC-HDBW2449F-AS-IL_S0_datasheet_20240702 (Release Date: 2024-04-16) |
| Operation Manual | Dahua Network Camera Web 3.0_Operation Manual_V2.1.9; Dahua Network Camera Web 5.0_Operation Manual_V1.3.1 |
| Installation Document | Dahua Dome Network Camera_Quick Start Guide_V1.0.2; Dahua Dome Network Camera Installation Guide_V1.0.3 |
| A&E Specification | IPC-HDBW2449F-AS-IL_A&E_20260918010323 (Release Date: 2024-04-08) |
