By Dahua

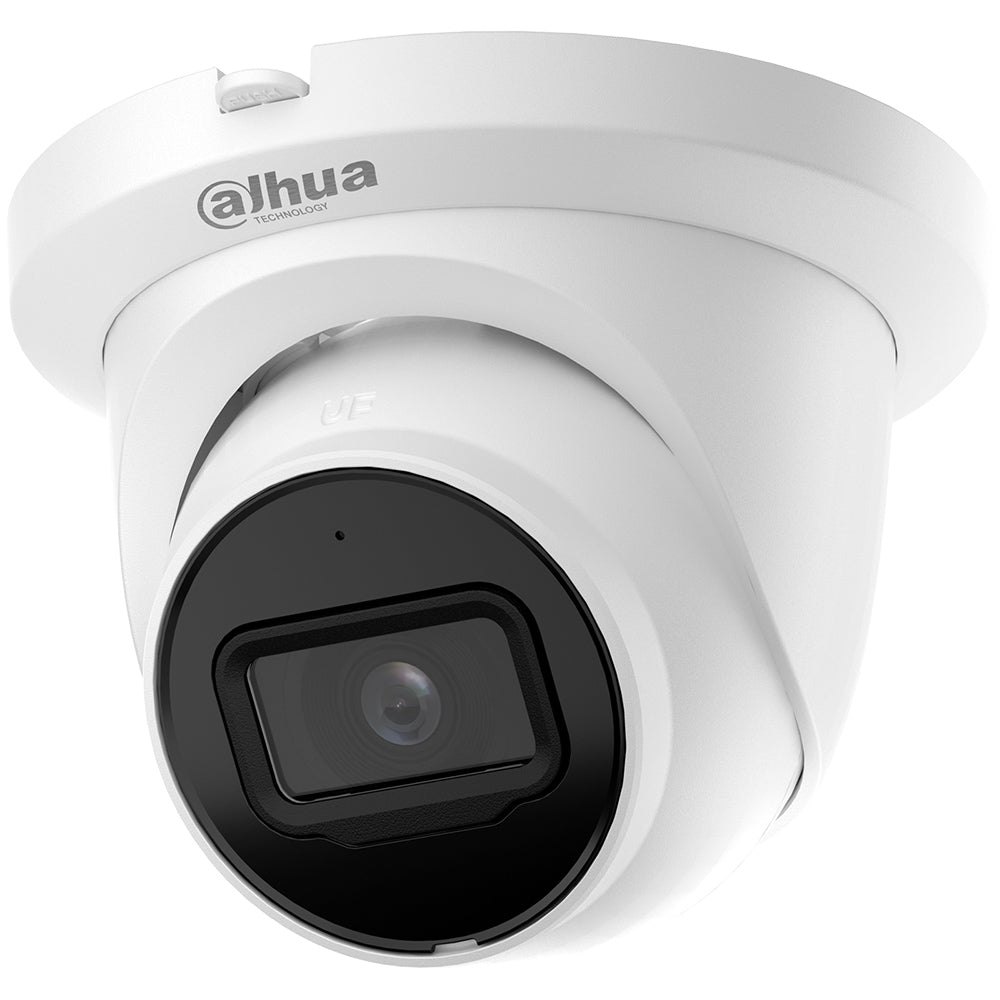

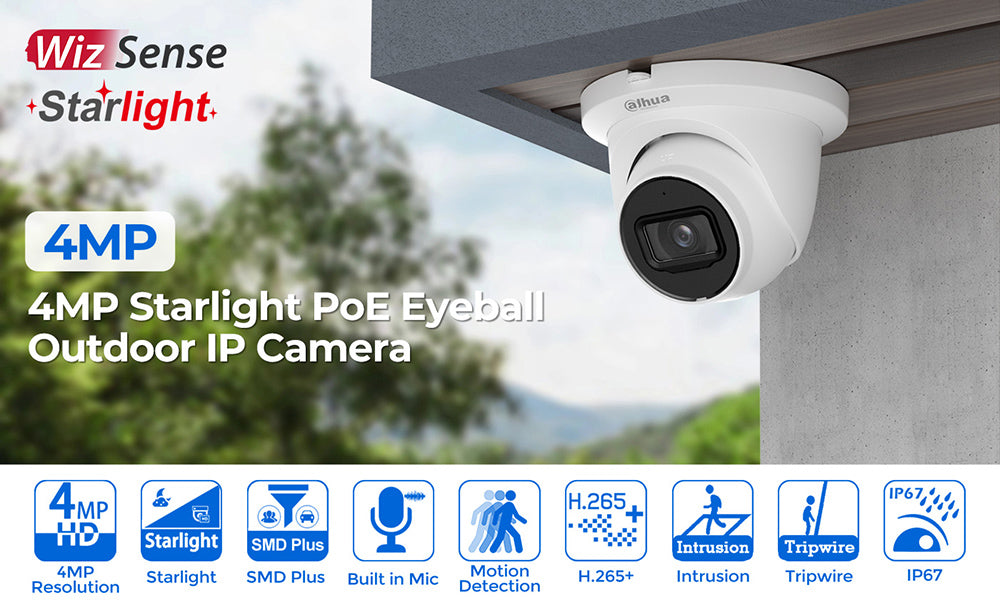

Dahua DH-IPC-HDW2441TM-S 4MP WizSense Infrared Security Eyeball Camera with SMD Plus
SKU: DH-IPC-HDW2441TM-S
Regular price
$130.27
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- Sharp 4MP resolution with 1/2.9" CMOS sensor for clear, low-light images.
- Built-in IR LEDs provide reliable night vision up to 30 meters in total darkness.
- SMD Plus smart detection accurately filters human and vehicle alarms, reducing false alerts.
- Supports intrusion and tripwire rules with vehicle/human classification for precise monitoring.
- Built-in microphone for audio capture; supports up to 256 GB microSD card for local storage.
- IP67 weatherproof rating for reliable outdoor operation in rain, dust, and extreme temperatures.
- WDR, 3D NR, HLC, and BLC technologies handle challenging lighting conditions for balanced video.
Dahua DH-IPC-HDW2441TM-S 4MP WizSense Infrared Security Eyeball Camera with SMD Plus
Dahua 4MP WizSense Infrared Security Camera with SMD Plus

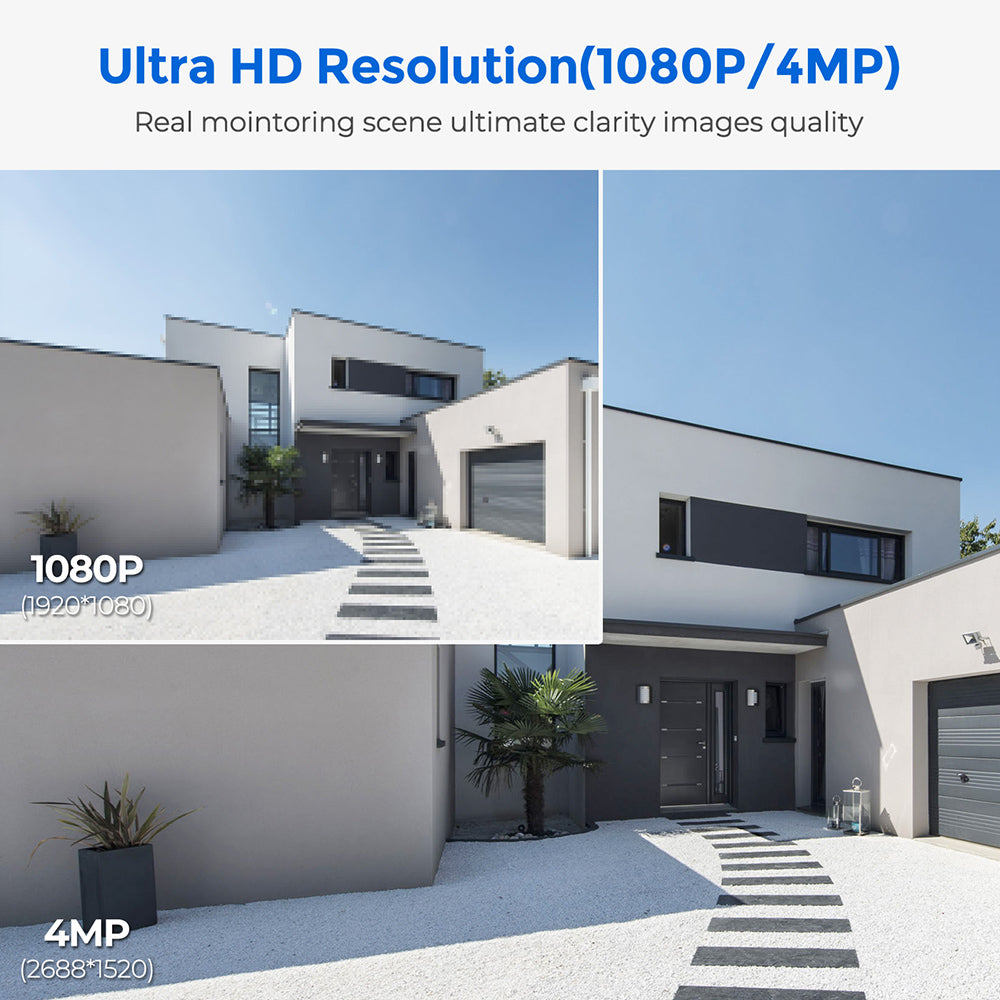

Clear 4MP Video Day and Night
Smart Detection That Reduces False Alarms

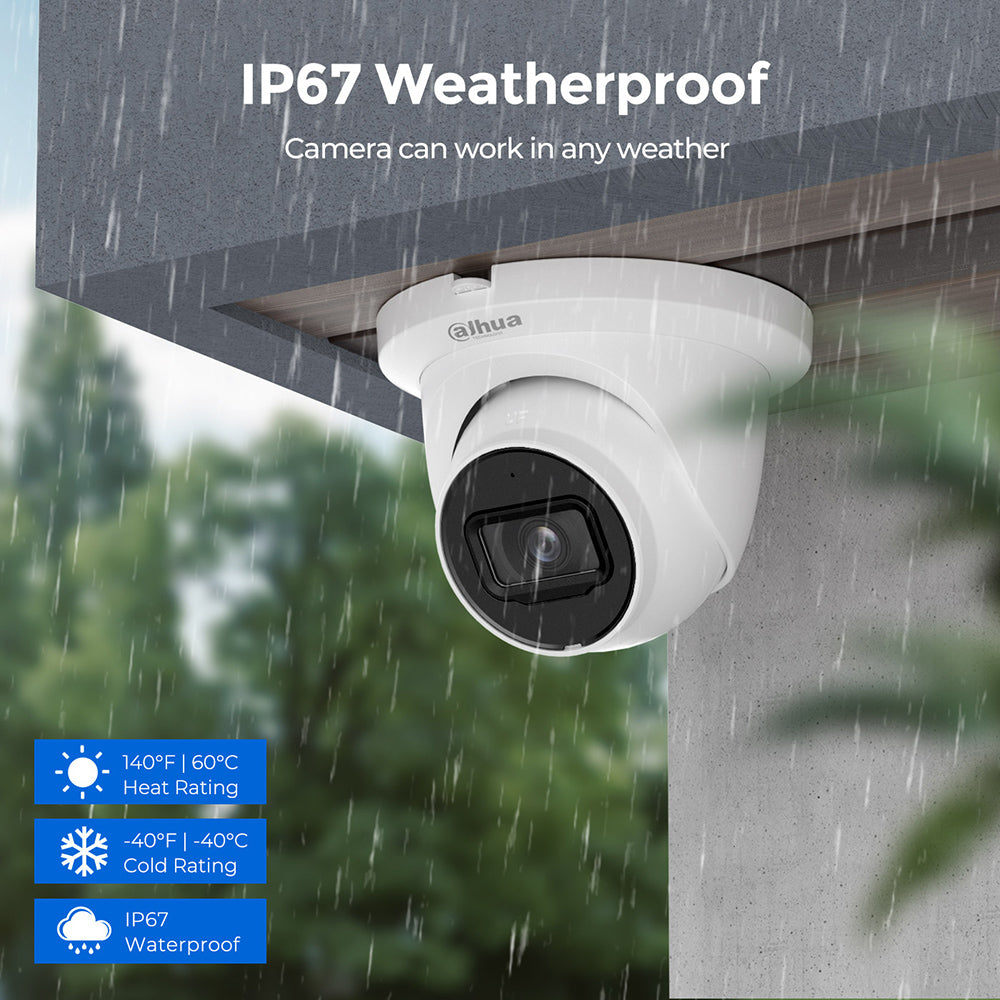

Built Tough for Outdoor Installation
null
Specification
Camera
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.6 (Color, 30IRE) 0.0006 lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 95°; V: 52°; D: 114° 3.6 mm: H: 78°; V: 41°; D: 94° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) |
DORI
| 2.8 mm Lens | 2.8 mm |
| Detect | 63.6 m (208.66 ft) |
| Observe | 25.4 m (83.33 ft) |
| Recognize | 12.7 m (41.67 ft) |
| Identify | 6.4 m (20.99 ft) |
| 3.6 mm Lens | 3.6 mm |
| Detect | 85.4 m (280.18 ft) |
| Observe | 34.2 m (112.20 ft) |
| Recognize | 17.1 m (56.10 ft) |
| Identify | 8.5 m (27.89 ft) |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) \*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270°(Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton |
Network
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser | IE Chrome Firefox |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Trusted execution; Digest; Security logs; WSSE; Account lockout; �yslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Power
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |

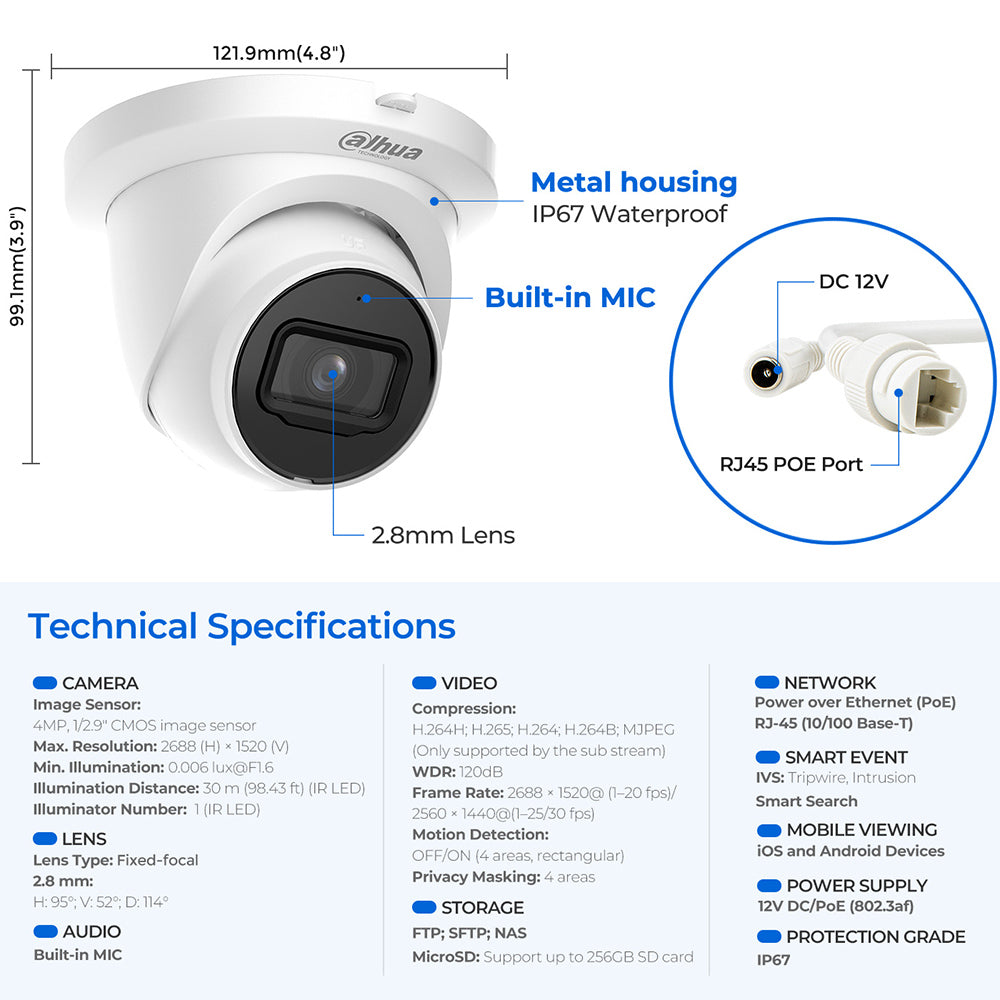

Structure
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.68 kg (1.5 lb) |
| Class | Date |
| Datasheet | 2024-03-12 |
