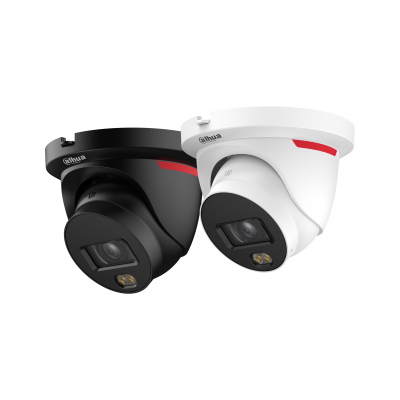

Dahua DH-IPC-HDW2449TH-S-PROX 4MP WizColor X Eyeball Camera
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 4MP WizColor X Imaging: A 1/1.8-inch sensor, F0.8 aperture and AI-ISP 2.0 retain color and detail in very low light.
- Full-Resolution 25/30 fps: Captures 2560 × 1440 video at up to 25 or 30 fps for smoother review of moving targets.
- Human and Vehicle Classification: Tripwire, intrusion and SMD Plus help filter events according to relevant target types.
- Dual Microphone Audio: Two built-in microphones capture sound for compatible live monitoring and recorded evidence.
- 512GB Edge Storage: Supports high-capacity MicroSD recording, alongside FTP, SFTP and NAS storage options.
- Adjustable Outdoor Housing: The IP67-rated eyeball design supports flexible aiming with 12 VDC or IEEE 802.3af PoE power.
Dahua DH-IPC-HDW2449TH-S-PROX 4MP WizColor X Eyeball Camera
Details
Compact WizColor X Monitoring for Entrances and Shared Spaces
The Dahua DH-IPC-HDW2449TH-S-PROX is a 4 MP fixed-focal eyeball network camera designed for shops, offices, entrances and sheltered building exteriors. Its adjustable housing offers a less prominent alternative to a bullet camera while providing 360° pan, 78° tilt and 360° rotation for installation alignment.
Preserve Color and Motion Detail in Low Light
A 1/1.8-inch CMOS sensor, F0.8 aperture and AI-ISP 2.0 support color imaging in very low illumination. The camera records 2560 × 1440 video at up to 25 or 30 fps, helping preserve detail when people or vehicles move through the monitored area. Two built-in warm lights provide additional illumination when required.
- 2.8 mm lens: Delivers a 106° horizontal field of view with warm-light coverage up to 20 metres.
- 3.6 mm lens: Delivers an 87° horizontal field of view with warm-light coverage up to 30 metres.
- Super AI Coding: Uses scene recognition and ROI-based processing to improve bandwidth and storage efficiency.
Record Relevant Events with Video and Audio
Tripwire and intrusion rules classify human and vehicle targets, while SMD Plus filters motion events by target category. Built-in dual microphones add audio capture, and MicroSD cards up to 512 GB support local recording. The metal dome and cover carry an IP67 rating, and the camera can be powered through either 12 VDC or IEEE 802.3af PoE.
Specification
| Basic Information | |
| Model | IPC-HDW2449TH-S-PROX |
| Product Name | 4MP WizColor X Fixed-focal Eyeball WizSense Network Camera |
| Key Features | High-Quality Imaging with 4 MP Resolution; Exceptional Image Quality in Low-Light Environments by WizColor X Technology; Deep Learning-Based Human and Vehicle Classification; Built-in Dual Mic for Real-Time Audio Security; Supports Max. 512G Micro SD card; 30%-50% Storage Saving with Super AI Coding; IP67 Ratings for Protection Against Harsh Environments |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.00007 lux@F0.8 |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 20 m (65.62 ft) (Warm light); 3.6 mm: Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 78°; Rotation: 0° to 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M18 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F0.8 |
| Field of View | 2.8 mm: H: 106°; V: 56°; D: 125°; 3.6 mm: H: 87°; V: 47°; D: 103° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.8 m (5.91 ft); 3.6 mm: 2.6 m (8.53 ft) |
| DORI Distance | 2.8 mm - Detect: 59.3 m (194.55 ft), Observe: 23.7 m (77.76 ft), Recognize: 11.9 m (39.04 ft), Identify: 5.9 m (19.36 ft); 3.6 mm - Detect: 71.3 m (233.92 ft), Observe: 28.5 m (93.50 ft), Recognize: 14.3 m (46.92 ft), Identify: 7.1 m (23.29 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); Third stream: 352 × 288@1 fps/352 × 240@1 fps |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (supports 90°/270° with 2560 × 1440 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; invalid access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning; SSL/TLS1.2; AES 256 |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 1.9 W (12 VDC); 2.7 W (PoE); Max.: 3 W (12 VDC); 3.9 W (PoE) (Intelligence + WDR + illumination on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Dome: Metal; Cover: Metal; Decorative ring: Plastic; Quick install mounting plate: Metal |
| Product Dimensions | 111.7 mm × Φ135 mm (4.40" × Φ5.31") |
| Net Weight | 0.59 kg (1.30 lb) |
| Gross Weight | 0.84 kg (1.85 lb) |
| General Parameter | |
| Datasheet Release Date | 2026-09-25 |
| Datasheet File Name | IPC-HDW2449TH-S-PROX_S0_datasheet_20260925 |
| Related Documents | Dahua Network Camera Web 3.0_Operation Manual_V2.1.9 (2026-10-10); Eyeball Network Camera Installation Guide_V1.0.0 (2026-10-10); Dahua Network Camera Web 5.0_Operation Manual_V1.3.1 (2026-10-10); Dahua Eyeball Network Camera_Quick Start Guide_V1.0.5 (2026-10-10); IPC-HDW2449TH-S-PROX_A&E_20260921094206 (2026-05-23) |
