By Dahua

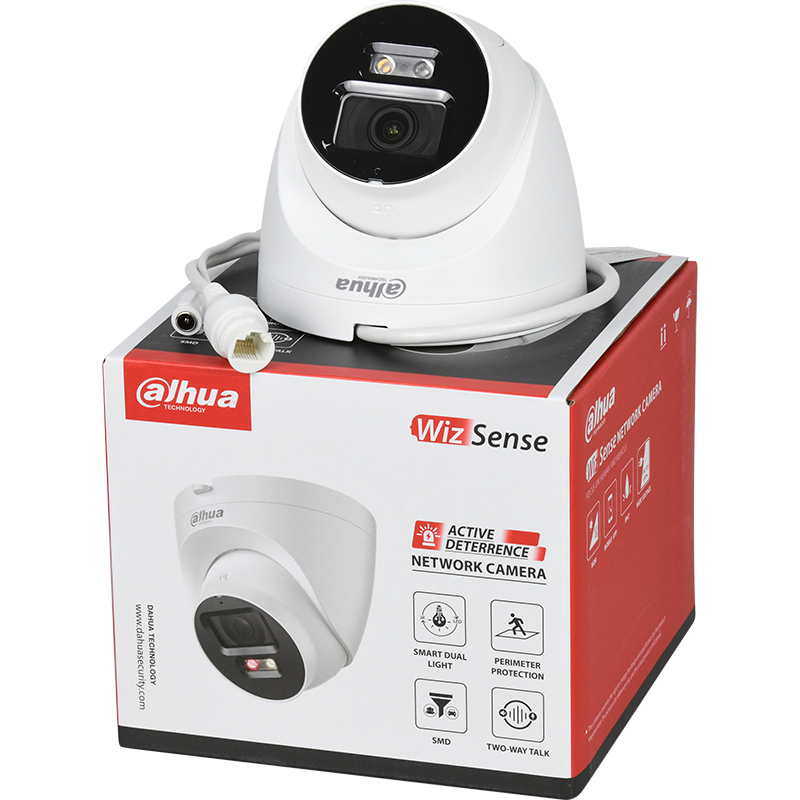

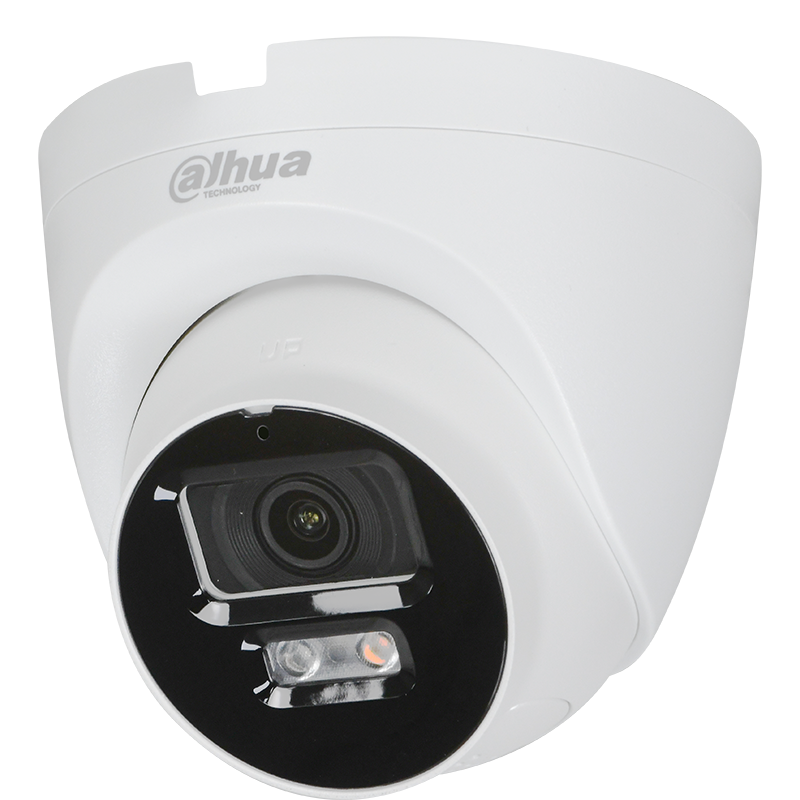

Dahua DH-IPC-HDW2449T-S-PV 4MP Smart Dual Light Active Deterrence Eyeball Security Camera
SKU: DH-IPC-HDW2449T-S-PV
Regular price
$123.91
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 4MP Super HD (2688 × 1520) with 120dB True WDR — captures clear details even in strong backlight or harsh shadows
- Smart Dual Light technology auto-switches between IR and white light for full-color night vision up to 30m
- Deep learning-based human and vehicle classification reduces false alarms from leaves, rain, or animals
- Built-in microphone and speaker for real-time two-way talk — no extra audio hardware needed
- Supports up to 256GB MicroSD card for weeks of local recording without an NVR
- IP67 weatherproof housing — survives rain, dust, and extreme temperatures from –40°C to +60°C
- Flexible power via 12V DC or PoE for easy installation in any setup
Dahua DH-IPC-HDW2449T-S-PV 4MP Smart Dual Light Active Deterrence Eyeball Security Camera
Dahua 4MP Smart Dual Light Active Deterrence Camera with WizSense AI
See Every Detail — Even in Harsh Light
Smart Alerts That Actually Matter
Built-In Audio — No Extra Gear Needed
Weatherproof and Ready for Any Job
Specification
Camera
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 101.6°; V: 54.8°; D: 122.1° 3.6 mm: H: 84°; V: 45.6°; D: 98.9° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.4 m (4.59 ft);3.6 mm: 2.0 m (6.56 ft) |
DORI
| 2.8 mm Lens | 2.8 mm |
| Detect | 63.8 m (209.32 ft) |
| Observe | 25.5 m (83.66 ft) |
| Recognize | 12.8 m (41.99 ft) |
| Identify | 6.4 m (21.00 ft) |
| 3.6 mm Lens | 3.6 mm |
| Detect | 77.8 m (255.25 ft) |
| Observe | 31.1 m (102.03 ft) |
| Recognize | 15.6 m (51.18 ft) |
| Identify | 7.8 m (25.59 ft) |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps); sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); \*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; auto registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Power
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 2 W (12 VDC), 2.6 W (PoE) Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker): 8.6 W (12 VDC), 10.1 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
Structure
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 103.5 mm × Φ109.9 mm (4.07" × Φ4.33") |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |
