By Dahua

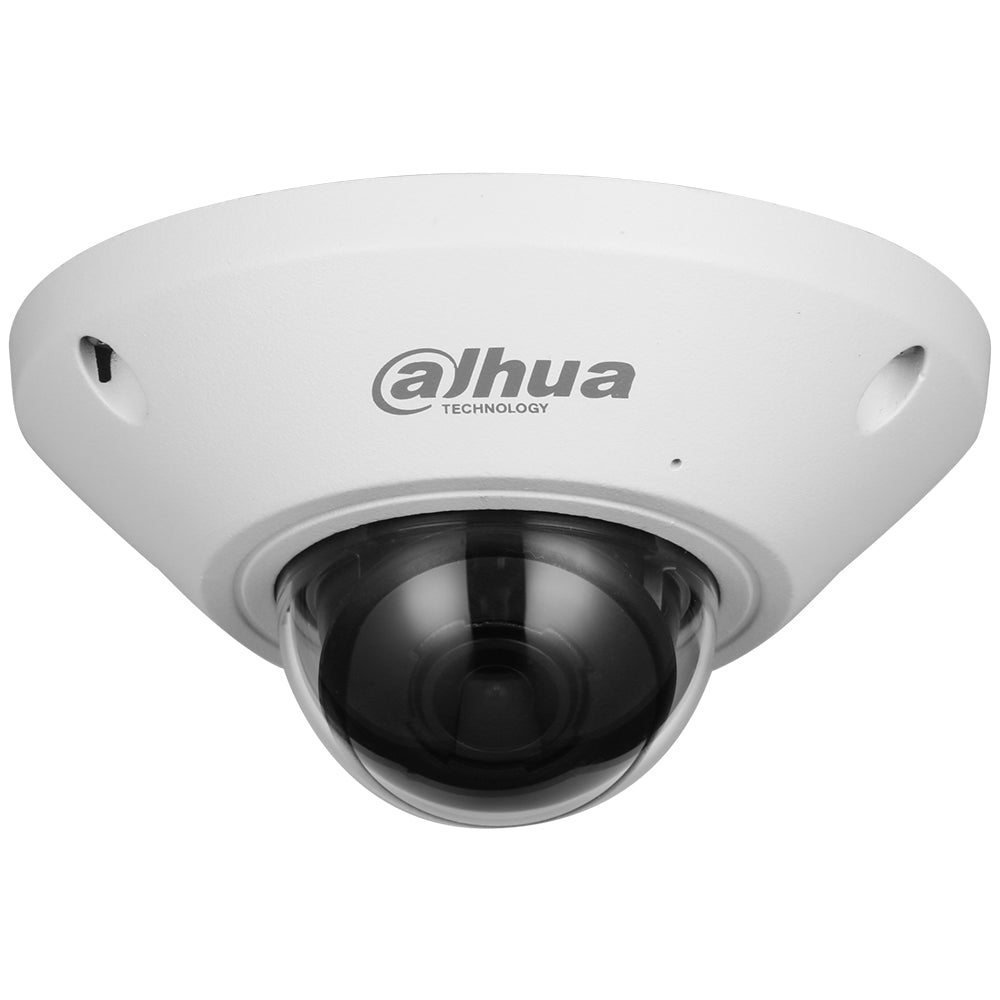

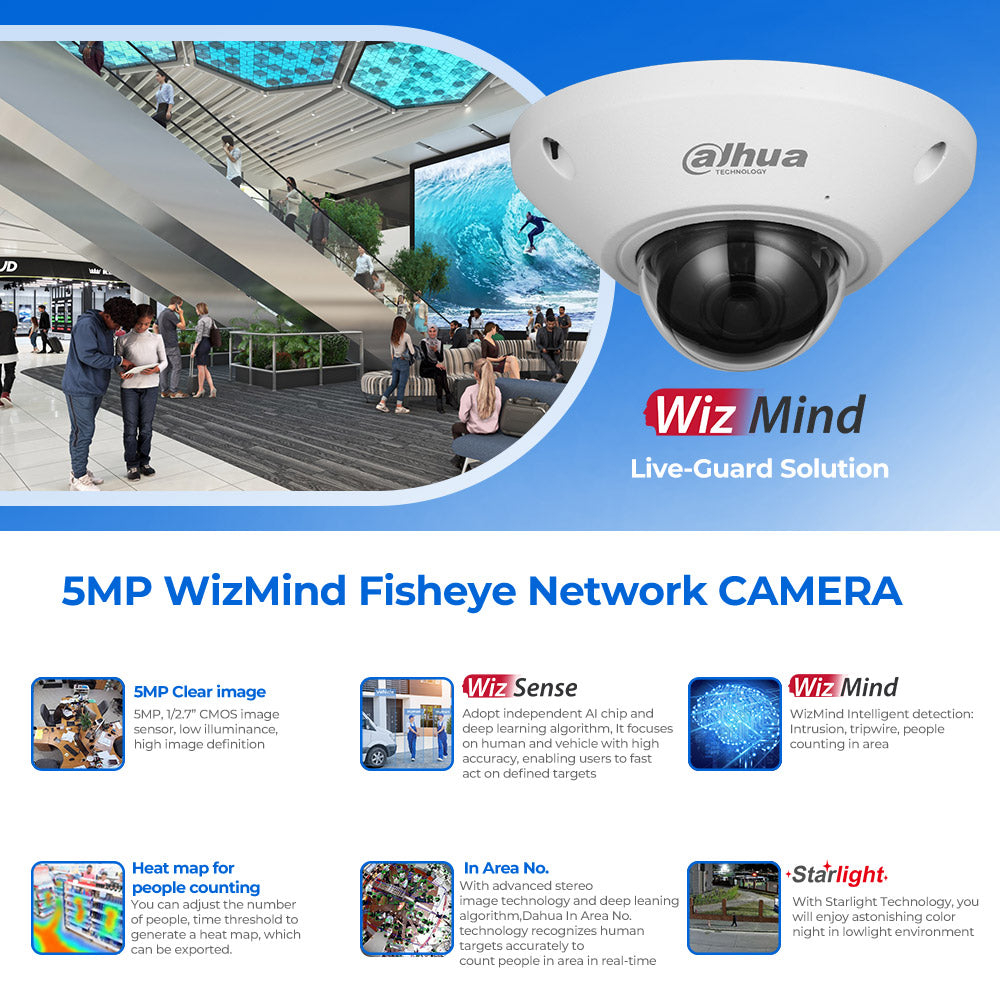

Dahua DH-IPC-EB5541N-AS 5MP WizMind 360 Fisheye Security Cameras with Built-in Mic
SKU: DH-IPC-EB5541N-AS
Regular price
$222.85
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 360° panoramic view covers an entire room with zero blind spots — replaces multiple fixed cameras
- Built-in microphone captures real-time audio so you hear what’s happening alongside the video
- 120dB True WDR delivers clear images even against strong backlight or bright windows

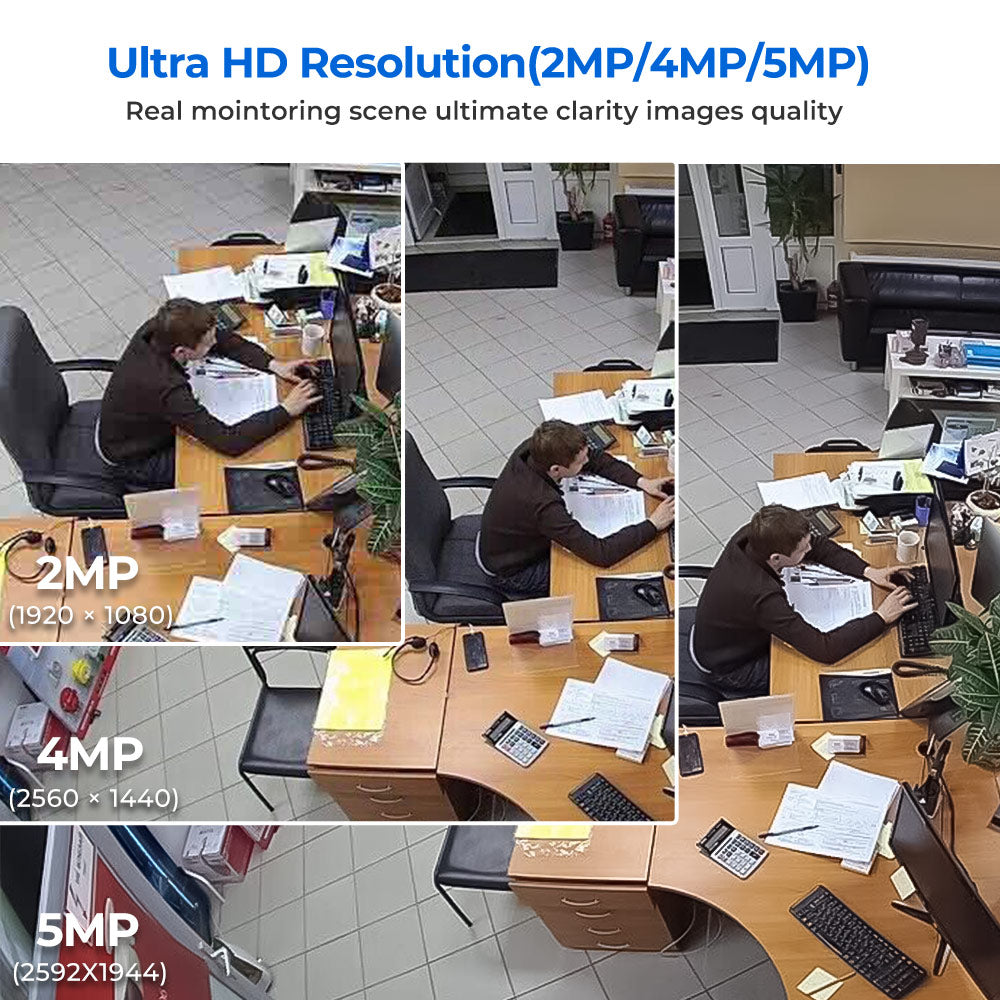

- 5MP Super HD resolution (2592 × 1944) gives you 2× more detail than standard 1080p cameras
- IP67 weatherproof and IK10 vandal-resistant metal housing survives rain, dust, and physical impact
- Supports up to 256GB microSD card for weeks of local recording without a separate NVR
- Flexible power via 12V DC or PoE — simple one-cable installation for any setup
Dahua DH-IPC-EB5541N-AS 5MP WizMind 360 Fisheye Security Cameras with Built-in Mic
Dahua 5MP WizMind Fisheye Camera – 360° Coverage, Built-in Audio

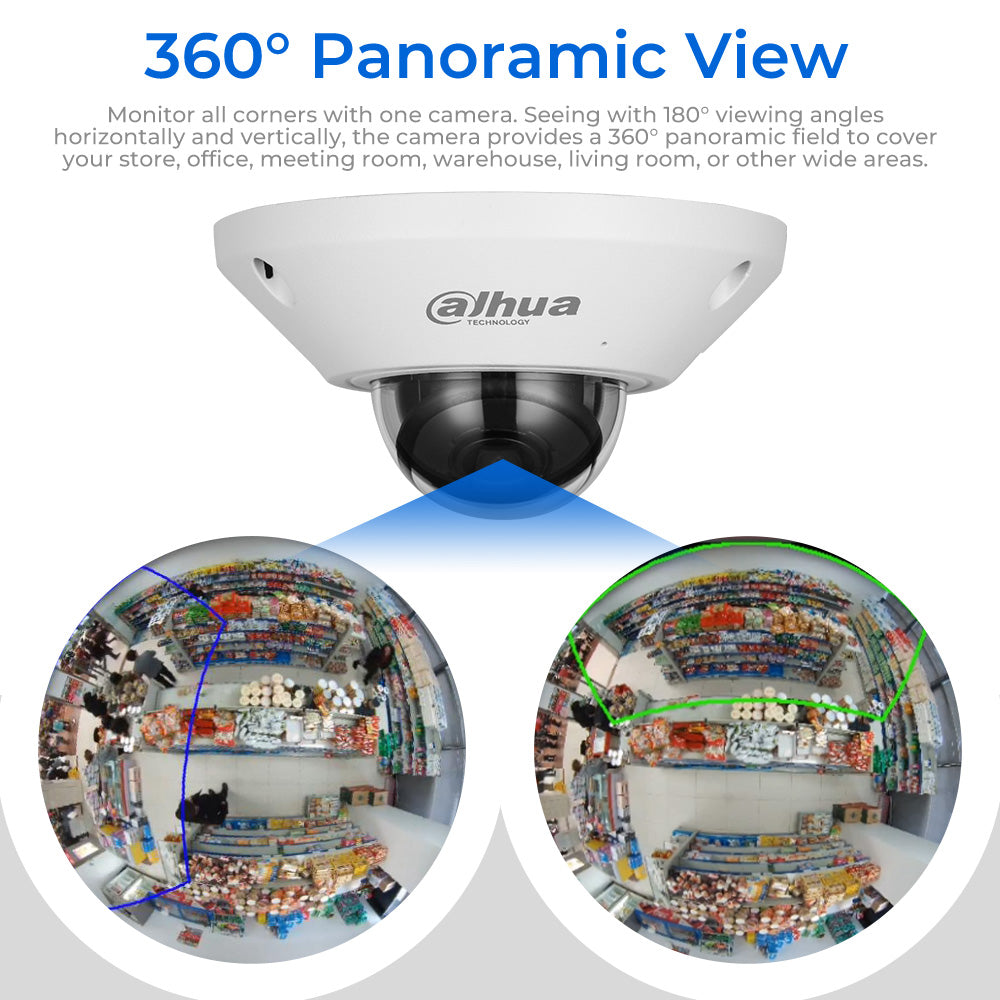

One Camera Covers the Whole Room
Hear What’s Happening in Real Time
Clear Images Even in Tough Lighting
Built Tough for Indoor and Outdoor Use
Specification
Camera
| Image Sensor | 1/2.7”5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE) |
| S/N Ratio | >56 dB |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–55° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 1.4 mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° |
| Iris Type | Fixed |
| Close Focus Distance | 0.2 m (0.7 ft) |
DORI
| Detect | 28 m (91.9 ft) |
| Observe | 11.2 m (36.7 ft) |
| Recognize | 5.6 m (18.4 ft) |
| Identify | 2.8 m (9.2 ft) |
Smart Event
| Heat Map | Yes |
| IVS (Perimeter Protection) | Tripwire; intrusion |
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Fisheye
| Installation | Ceiling mount; wall mount; ground mount |
| Decoding Mode | Back-dewarp |
| Display Mode | Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G726 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
Network
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9 and IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Certification
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |

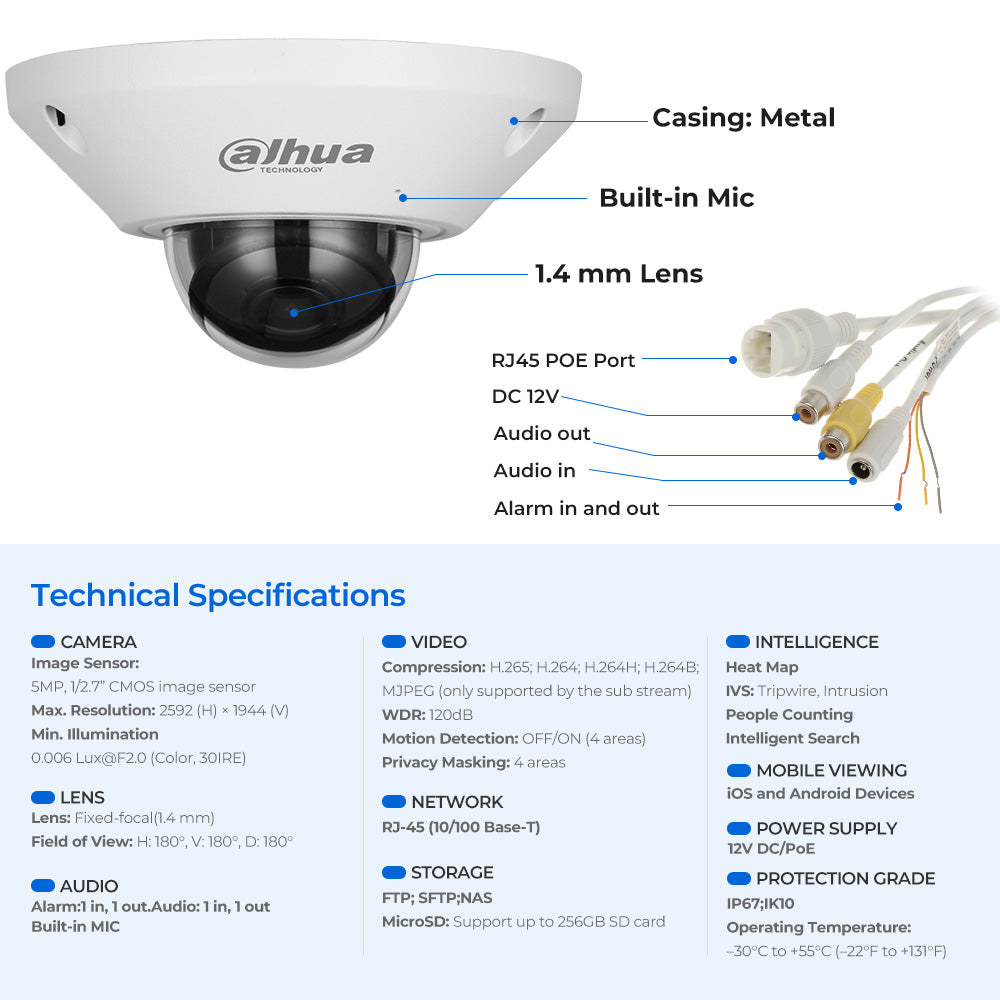

Port
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
Power
| Power Supply | 12V DC/PoE |
| Power Consumption | Basic power consumption: 3.7W (12V DC); 4.7W (PoE) Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
Environment
| Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH |
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67; IK10 |

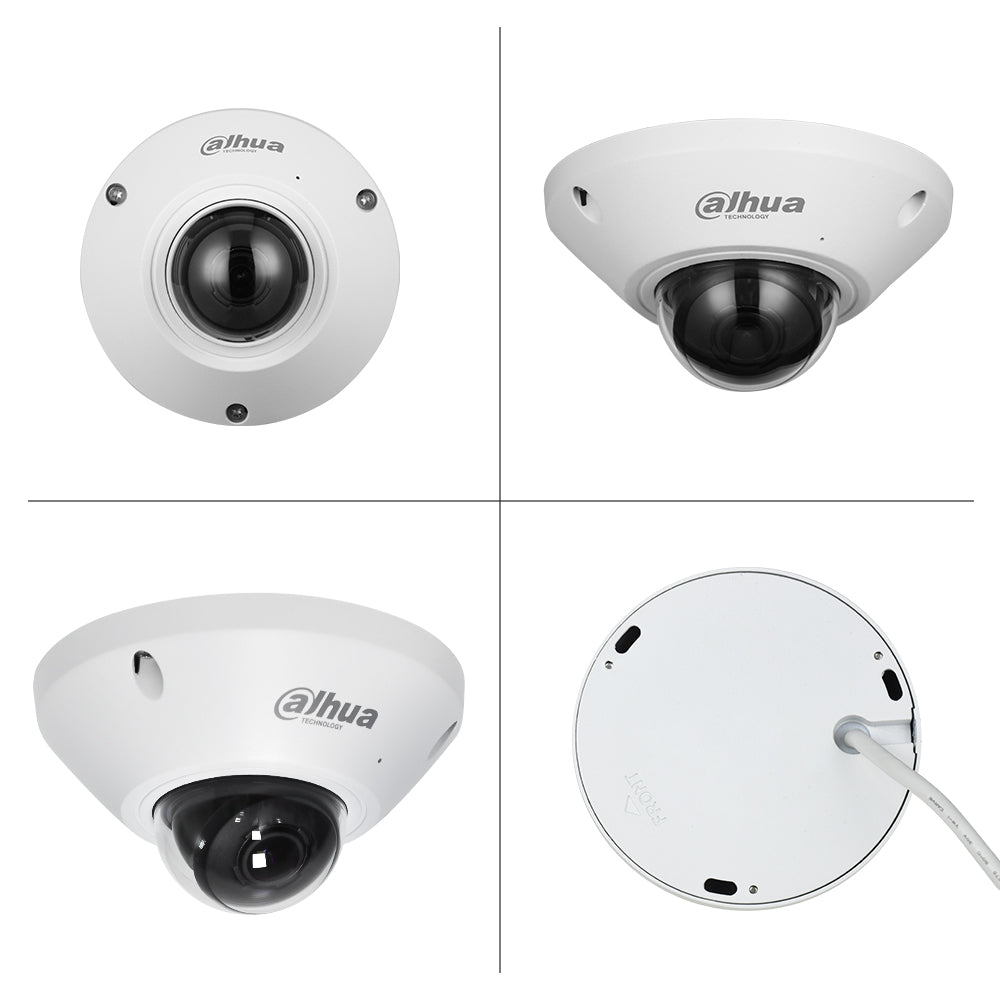

Structure
| Casing | Metal |
| Dimensions | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
| Net Weight | 387 g (0.9 lb) |
| Gross Weight | 502 g (1.1 lb) |
