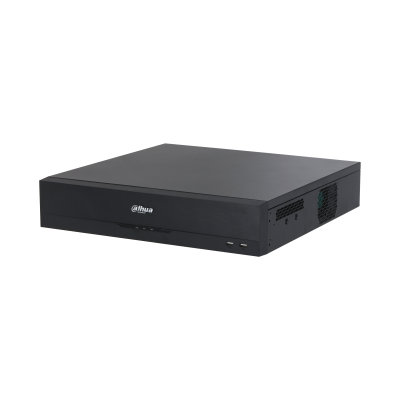

Dahua NVR5864-EI 64CH WizSense 8K NVR for Parking Lot Video Surveillance
SKU: NVR5864-EI
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 64-channel NVR — connect up to 64 IP cameras for large multi-site deployments
- 8 HDD bays support up to 160TB total storage
- Smart H.265+ saves up to 75% storage vs H.264
- AI SMD Plus alerts only for people and vehicles — no false alarms from leaves, rain, or animals
- AcuPick smart search locates people and vehicles in recorded footage in seconds
- Free remote viewing via DMSS app
- Works with all ONVIF-compliant IP cameras
Dahua NVR5864-EI 64CH WizSense 8K NVR for Parking Lot Video Surveillance
Details
64-Channel Network Video Management
The Dahua DHI-NVR5864-EI is a 2U network video recorder with 64 IP camera access channels for centralized surveillance recording and playback. It supports IP cameras with resolutions up to 32 MP and video compression standards including Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG. Incoming, recording, and outgoing bandwidth can reach 384 Mbps when AI is disabled. With AI enabled, the specified bandwidth is 200 Mbps for each direction.
AI-Assisted Search and Events
Recorder-based AI functions include face detection, face recognition, perimeter protection, and SMD Plus. The recorder supports 2 channels for face detection and recognition, 4 channels for perimeter protection, and 8 channels of SMD Plus. When supported by connected cameras, camera-based functions can include video metadata, ANPR, people counting, PPE detection, heat maps, smart object detection, and smart sound detection. AcuPick supports up to 32 channels for targeted video search.
Storage and RAID Support
The DHI-NVR5864-EI provides 8 SATA ports, with each disk supporting up to 20 TB according to the datasheet. It supports RAID 0/1/5/6/10 for configurable storage management and data protection. The recorder also includes 1 eSATA port for compatible storage expansion. The actual storage configuration depends on the installed hard drives and system environment.
Flexible Video Output and System Integration
The recorder includes 2 HDMI outputs, 2 VGA outputs, 2 network ports, alarm input and output interfaces, audio input and output, RS-232, RS-485, and USB ports. It supports ONVIF Profile T, Profile S, Profile G, and Profile M, as well as CGI and SDK for integration with compatible cameras and surveillance applications.
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| AcuPick Performance of AI by Camera (Number of Channels) | Max. 32-channel, 1 combined event per channel/s |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (16 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1\. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2\. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (32 targets/s) |
| Video Metadata | |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | All channels (8 targets/s) |
| License Plate Database Capacity | 1\. Create up to 20,000 plate numbers. 2\. Blocklist and allowlist |
| Audio and Video | |
| Access Channel | 64 channels |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Video Output | 2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-address; load balance; fault tolerance; link aggregation |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, target video, video clip, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1-channel 12 V 1 A output） |
| Disk Interface | 8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 6.40 kg (14.11 lb) |
| Gross Weight | 9.01 kg (19.86 lb) |
| Product Dimensions | 439.9 mm × 457.9 mm × 89.0 mm (17.32" × 18.03" × 3.50") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") (W ×D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
