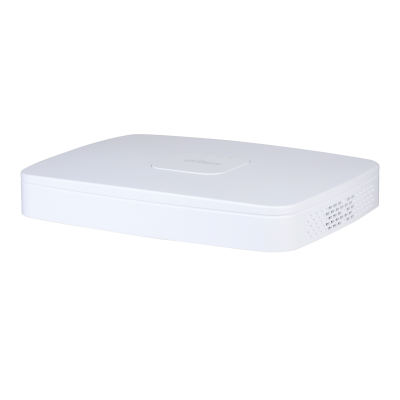

Dahua DHI-NVR2108-8P-4KS3 8-Channel 4K NVR with 8-Port PoE and SMD Plus
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
(HDD not included)
- Complete 8-Camera PoE Setup: Eight built-in PoE ports provide direct network and power connections for a full eight-camera system.
- 4-Channel SMD Plus: Recorder-side filtering classifies human and motor-vehicle motion on up to four channels for more relevant alarms.
- Up to 12 MP Camera Access: Connects IP cameras with resolutions up to 12 MP and supports six-channel 1080p decoding at 30 fps.
- 4K HDMI Monitoring: Displays video at up to 3840 × 2160 through HDMI, with VGA output available for additional monitor compatibility.
- Up to 20 TB Storage: A single SATA bay supports one HDD up to 20 TB for local surveillance recording and playback.
- 72 W PoE Budget: Supplies up to 72 W across eight IEEE 802.3af/at ports, with a maximum of 25.5 W available from one port
Dahua DHI-NVR2108-8P-4KS3 8-Channel 4K NVR with 8-Port PoE and SMD Plus
Details
Eight PoE Ports for a Complete Eight-Camera System
The Dahua DHI-NVR2108-8P-4KS3 is an 8-channel network video recorder designed for villas, shops and small to medium-sized properties. Because every camera channel has a corresponding PoE port, up to eight compatible cameras can connect directly to the recorder without requiring a separate PoE switch. The shared 72 W PoE budget supports IEEE 802.3af/at devices, subject to the power requirements of the selected cameras.
Smarter Event Filtering at the Recorder
Built-in four-channel SMD Plus applies secondary filtering to motion events and distinguishes humans and motor vehicles from non-target movement caused by rain, leaves or changing light. Compatible AI cameras can also provide SMD across all eight channels and camera-side perimeter protection. This division lets buyers match standard and intelligent cameras to the areas where analytics are most valuable.
High-Resolution Recording in a Compact Format
The NVR accepts cameras up to 12 MP and provides HDMI output at up to 3840 × 2160 for detailed local viewing. With recorder AI disabled, it supports up to six 1080p streams at 30 fps and provides 144 Mbps incoming and recording bandwidth. A single SATA bay accommodates one HDD up to 20 TB, while Smart H.265+ and Smart H.264+ compression help manage storage and network use.
- Flexible playback: Review up to eight recorded channels using instant, event, tag or smart playback modes.
- Audio connectivity: One RCA input and one RCA output support compatible audio equipment.
- System interoperability: ONVIF Profiles T, S and G, CGI and SDK are listed for integration with supported devices and platforms.
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | SMD |
| AI by Camera | Perimeter protection; SMD |
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (4 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (8 targets/s) |
| Audio and Video | |
| Access Channel | 8 channels |
| Network Bandwidth | AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
| Resolution | 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1/4/8/9 |
| Third-party Camera Access | ONVIF |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726; |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; camera external alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Perimeter protection; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | NA (2 channels are optional) |
| Alarm Output | NA (1-channel 12 V 1 A output is optional) |
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 53 V DC, 1.81 A |
| Power Consumption | Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 0.68 kg (1.50 lb) |
| Gross Weight | 1.76 kg (3.88 lb) |
| Product Dimensions | 270.0 mm × 206.3 mm × 45.9 mm(10.63" × 8.12" × 1.81") (W × D × H) |
| Packaging Dimensions | 427.0 mm × 96.0 mm × 262.0 mm(16.81" × 3.78" × 10.31")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
