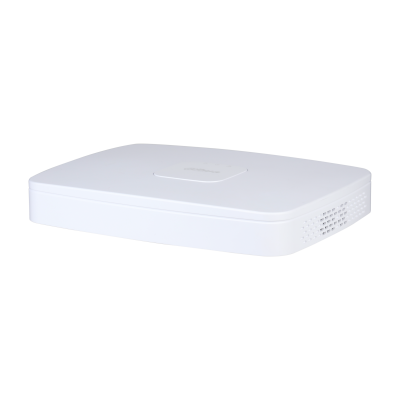

Dahua DHI-NVR2108-8P-I2 8-Channel WizSense NVR with 8 PoE & Face Recognition
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
(HDD no included)
- Built-In Face Recognition: Processes face detection and recognition on one channel with up to 10 databases and 5,000 stored face images.
- Eight Integrated PoE Ports: Connects and powers eight compatible IP cameras through a shared 72 W PoE budget.
- 4-Channel SMD Plus: Recorder-side analytics classify human and vehicle motion to filter less relevant movement events.
- Targeted Perimeter Protection: One recorder-side channel supports human and vehicle filtering for intrusion and tripwire monitoring.
- Up to 12 MP Camera Access: Supports high-resolution IP cameras, adaptive decoding and simultaneous HDMI and VGA display output.
- AI Search Tools: Searches recorded video using target metadata or uploaded face images to locate relevant events more efficiently.
Dahua DHI-NVR2108-8P-I2 8-Channel WizSense NVR with 8 PoE & Face Recognition
Details
WizSense Analytics for Identity and Event Investigation
The Dahua DHI-NVR2108-8P-I2 is an 8-channel WizSense network video recorder for shops, offices, residential entrances and other sites requiring searchable video evidence. Recorder-side AI supports one channel of face detection and recognition, one channel of perimeter protection and four channels of SMD Plus. Its face library accommodates up to 10 databases containing a combined 5,000 images, enabling comparison between captured faces and stored records.
Eight-Camera PoE Deployment
Eight integrated PoE ports carry network data and power to compatible cameras, reducing the need for separate PoE switching in a complete eight-camera installation. The ports share a 72 W power budget, with a maximum output of 25.5 W from one port. Compatible intelligent cameras can extend selected analytics beyond the recorder’s own resources, including up to five channels of camera-side face detection or recognition, four channels of perimeter protection and six channels of SMD Plus.
Recording, Display and Search Capabilities
- High-resolution access: Supports IP camera resolutions up to 12 MP and displays video through simultaneous HDMI and VGA outputs.
- Adaptive decoding: Decodes up to six 1080p streams at 30 fps when recorder AI is disabled, or four when AI is enabled.
- Local storage: One SATA interface accepts one HDD up to 10 TB for scheduled, motion-triggered, alarm or manual recording.
- Focused investigation: AI Search uses recorded metadata or uploaded face images to help locate relevant people and events.
Specification
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI | |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Device | Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection | |
| Perimeter Performance AI by Device(Number of Channels) | 1 |
| Perimeter Performance of AI by Camera (Number of Channels) | 4 |
| Face Detection | |
| Face Attributes | 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Detection Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 12 face images/second) |
| Face Detection Performance of AI by Camera (Number of Channels) | 5 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Face Recognition Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 4 face images/second) |
| Face Recognition Performance of AI by Camera (Number of Channels) | 5 |
| SMD Plus | |
| SMD Plus by Device | 4 |
| SMD Plus by Camera | 6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away |
| Video | |
| Access Channel | 8 channels |
| Network Bandwidth | AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4, 8, 9 views |
| Third Party Camera Access | Onvif |
| Compression | |
| Video | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T; profile S; profile G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1\. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2\. Full screen; backup (vide clip/file); partially zom in; audio on/off |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 2 rear USB 2.0 ports |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1000 Mbps |
| PoE | 8 × PoE ports, 10/100 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | DC53V, 1.8A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of a single port is 25.5W |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross weight | 1.80 kg (3.97 lb) |
| Product Dimensions | 270 mm × 206.3 mm × 47.5 mm (10.63" × 8.12" × 1.87") (W × L × H) |
| Package Dimensions | 96 mm × 364 mm × 261 mm (3.78" × 14.33" × 10.28") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017 |
| Datasheet Date | 2021-04-21 |
| Datasheet Title | NVR2108-8P-I2\_datasheet\_20220614 |
| Datasheet Language | English |
| Datasheet Type | |
| Datasheet Download | [NVR2108-8P-I2_datasheet_20220614](https://materialfile.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/NVR2108-8P-I2_datasheet_20220614.pdf "NVR2108-8P-I2_datasheet_20220614") |
