By Dahua

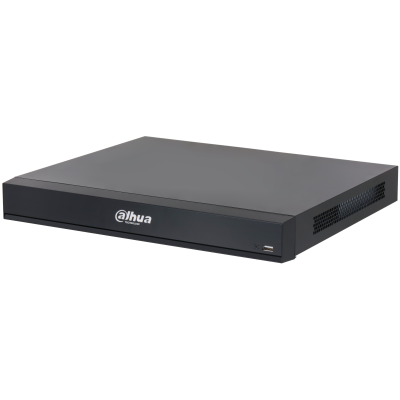

Dahua DHI-NVR5208-8P-XI 8-Channel WizMind NVR with AcuPick
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
(HDD no included)
- AcuPick Target Search: Supports AcuPick across up to eight channels when paired with compatible intelligent IP cameras.
- 8-Channel Recorder AI: Provides face analysis, video metadata, perimeter protection and SMD Plus processing on all eight channels.
- Large Face Database: Manages up to 20 face databases containing a combined 200,000 images for structured identity searches.
- High-Capacity Video Processing: Accepts cameras up to 32 MP with 512 Mbps incoming, recording and outgoing bandwidth when recorder AI is disabled.
- Dual-HDD Storage: Two SATA interfaces support two drives of up to 20 TB each for flexible local recording capacity.
- 8-Port ePoE: Eight IEEE 802.3af/at ports support ePoE and share a 130 W power budget for direct camera deployment.
Dahua DHI-NVR5208-8P-XI 8-Channel WizMind NVR with AcuPick
Details
Built for Eight-Camera AI Investigation
The Dahua DHI-NVR5208-8P-XI is an 8-channel, 1U WizMind network video recorder designed for professional systems that need more than basic recording. Eight integrated ePoE ports simplify direct camera connection, while recorder-side intelligence processes face detection and recognition, video metadata, perimeter protection and SMD Plus across up to eight channels.
Move from an Event to the Relevant Target
AcuPick combines front-end and back-end intelligence to search recorded video using target characteristics. When the NVR is paired with compatible AcuPick IP cameras, operators can locate people and vehicles across up to eight channels instead of reviewing footage sequentially. Recorder-side video metadata extracts 23 attributes, while the face-management function supports up to 20 databases containing a combined 200,000 images.
Resources for High-Detail Recording
- Camera access: Supports IP camera resolutions up to 32 MP.
- Network capacity: Provides 512 Mbps incoming, recording and outgoing bandwidth with recorder AI disabled, or 200 Mbps with it enabled.
- Expandable storage: Two SATA interfaces each support one HDD up to 20 TB, subject to environmental temperature.
- PoE planning: Eight ePoE ports share 130 W of output, with a maximum of 25.5 W from a single port.
- System integration: Includes four alarm inputs, two alarm outputs, RCA audio, RS-232 and RS-485 interfaces.
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection |
| AcuPick Performance of AI by Camera (Number of Channels) | All channels (36 targets/s) |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 8 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (32 targets/s) |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 8 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 8 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 8-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 8 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| Video Metadata | |
| Metadata Performance of AI by Recorder (Number of Channels) | 8 channels, 23 attributes extraction. |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle Attributes | 4 attributes |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers.; 2. Blocklist and allowlist |
| Audio and Video | |
| Access Channel | 8 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps |
| Video Output | 1 VGA, 1 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; Heterogeneous video source output for HDMI and VGA |
| Multi-screen Display | Main screen: 1/4/8/9; Sub screen: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| Recording Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log; preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| Disk Interface | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| General | |
| Power Supply | 100–240 VAC, 47-63 Hz |
| Power Consumption | <10 W (without HDD); Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 2.59 kg (5.71 lb) |
| Gross Weight | 3.74 kg (8.25 lb) |
| Product Dimensions | 375.0 mm × 327.6 mm × 53.0 mm (14.76" × 12.90" × 2.09") (W × D × H) |
| Packaging Dimensions | 449.0 mm × 421.0 mm × 170.0 mm (17.68" × 16.57" × 6.69") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014 |
| Datasheet Document | NVR5208-8P-XI_S0_datasheet_20260521 (Release Date: 2026-05-22) |
