By Dahua

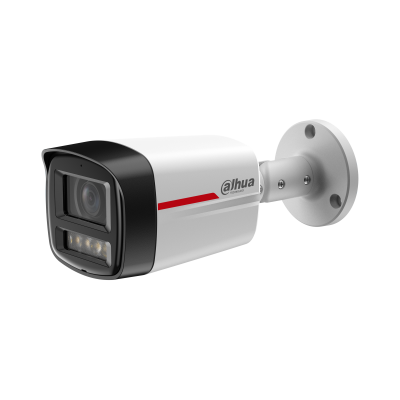

Dahua DH-IPC-HFW2849TL-S-PRO 8MP WizColor Bullet Camera with Warm Light & SMD Plus
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 8MP WizColor Imaging: A 1/1.8-inch sensor, F1.0 aperture and AI-ISP support detailed color video in low illumination.
- 3 Fixed-Lens Options: Choose 2.8 mm, 3.6 mm or 6 mm to balance scene width, target detail and illumination range.
- Human and Vehicle Filtering: Tripwire, intrusion and SMD Plus help operators focus on relevant people and vehicle events.
- Super AI Coding: AI-assisted encoding combines ROI and scene recognition to reduce storage and transmission requirements.
- Built-In Audio and Storage: An integrated microphone and MicroSD support up to 256 GB enable audio capture and edge recording.
- Outdoor Network Deployment: A metal IP67 enclosure supports 12 VDC or IEEE 802.3af PoE installation.
Dahua DH-IPC-HFW2849TL-S-PRO 8MP WizColor Bullet Camera with Warm Light & SMD Plus
Details
Match the Lens to the Monitoring Area
The Dahua DH-IPC-HFW2849TL-S-PRO is an 8 MP WizColor fixed-focal bullet network camera available with 2.8 mm, 3.6 mm and 6 mm lenses. The 2.8 mm option provides a 110° horizontal view for broad scene coverage, while the 3.6 mm and 6 mm versions narrow the view to 93° and 57° for progressively more concentrated framing.
Color Detail in Low-Illumination Scenes
A 1/1.8-inch CMOS sensor, F1.0 aperture and AI-ISP help the camera retain color and target details when available light is limited. Four built-in warm-light illuminators provide additional lighting, with the stated maximum distance varying by lens: 20 metres for 2.8 mm, 30 metres for 3.6 mm and 50 metres for 6 mm.
The camera outputs 3840 × 2160 video at up to 20 fps and supports 2688 × 1520 at up to 25 or 30 fps. Super AI Coding uses object detection and scene recognition with ROI-based processing to improve encoding efficiency for bandwidth- and storage-conscious installations.
Filter Events and Record at the Edge
- Perimeter protection: Tripwire and intrusion rules classify human and vehicle targets.
- SMD Plus: Filters motion alarms according to relevant target categories.
- Edge storage: Supports MicroSD cards with capacities up to 256 GB.
- Audio capture: A built-in microphone adds sound to compatible live-view and recording workflows.
- Outdoor installation: The metal enclosure carries an IP67 protection rating and supports PoE or 12 VDC power.
Specification
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0004 lux@F1.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 20 m (65.62 ft) (Warm light); 3.6 mm: Up to 30 m (98.43 ft) (Warm light); 6 mm: Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment | Pan: 0° – 360°; Tilt: 0°– 90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 110°; V: 59°; D: 131°; 3.6 mm: H: 93°; V: 49°; D: 110°; 6 mm: H: 57°; V: 30°; D: 66° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 2.8 m (9.19 ft); 3.6 mm: 4 m (13.12 ft); 6 mm: 12 m (39.37 ft) |
| DORI Distance | 2.8 mm: Detect 84.0 m (275.59 ft), Observe 33.6 m (110.24 ft), Recognize 16.8 m (55.12 ft), Identify 8.4 m (27.56 ft); 3.6 mm: Detect 102.0 m (334.65 ft), Observe 40.8 m (133.86 ft), Recognize 20.4 m (66.93 ft), Identify 10.2 m (33.46 ft); 6 mm: Detect 169.0 m (554.46 ft), Observe 67.6 m (221.78 ft), Recognize 33.8 m (110.89 ft), Identify 16.9 m (55.45 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) (Includes smart codec technology, Smart H.265+ and Smart H.264+) |
| Video Frame Rate | Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); Third stream: 352 × 288@1 fps/352 × 240@1 fps |
| Streaming Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC); 3.2 W (PoE); Max.: 6.1 W (12 VDC); 7.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H) |
| Net Weight | 0.57 kg (1.26 lb) |
| Gross Weight | 0.72 kg (1.59 lb) |
| General Parameter | |
| Model | IPC-HFW2849TL-S-PRO |
| Product Description | 8MP WizColor Fixed-focal Bullet WizSense Network Camera |
| Datasheet Release Date | 2026-09-25 |
| Datasheet Document | IPC-HFW2849TL-S-PRO_S0_datasheet_20260925 |
