By Dahua

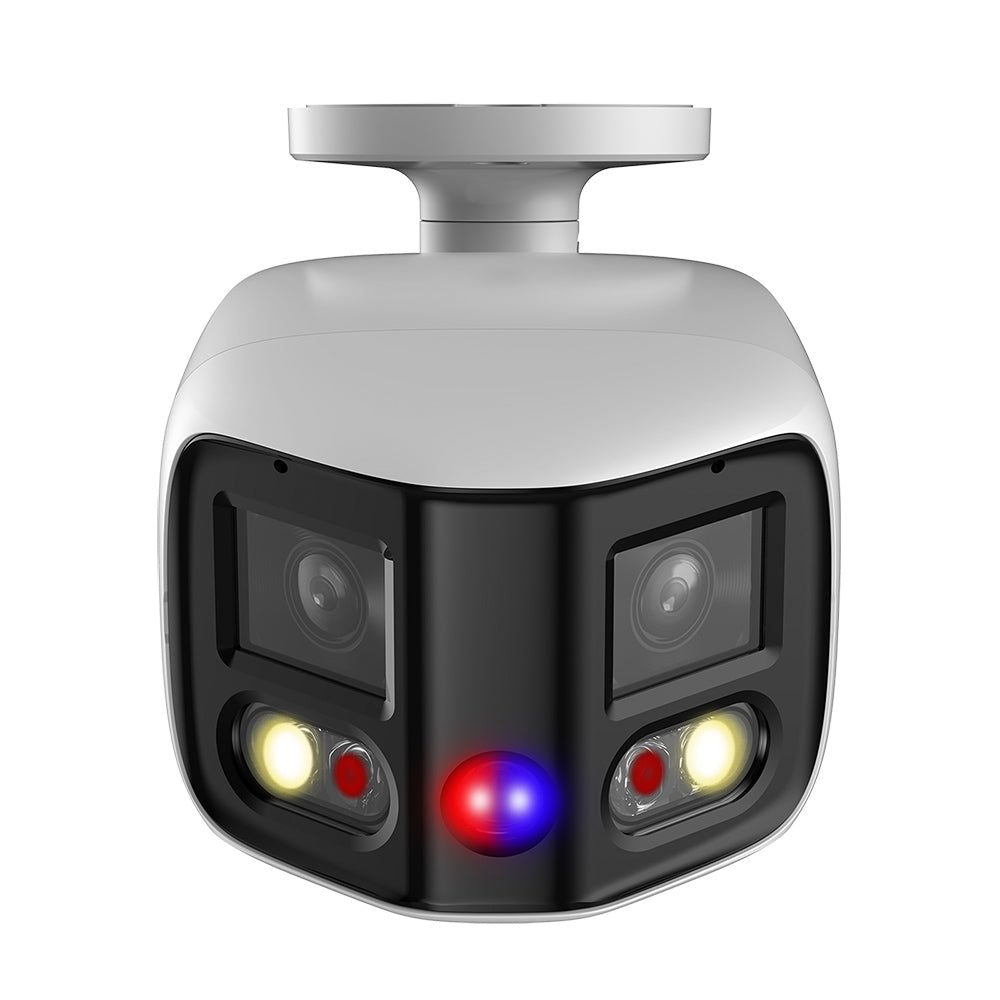

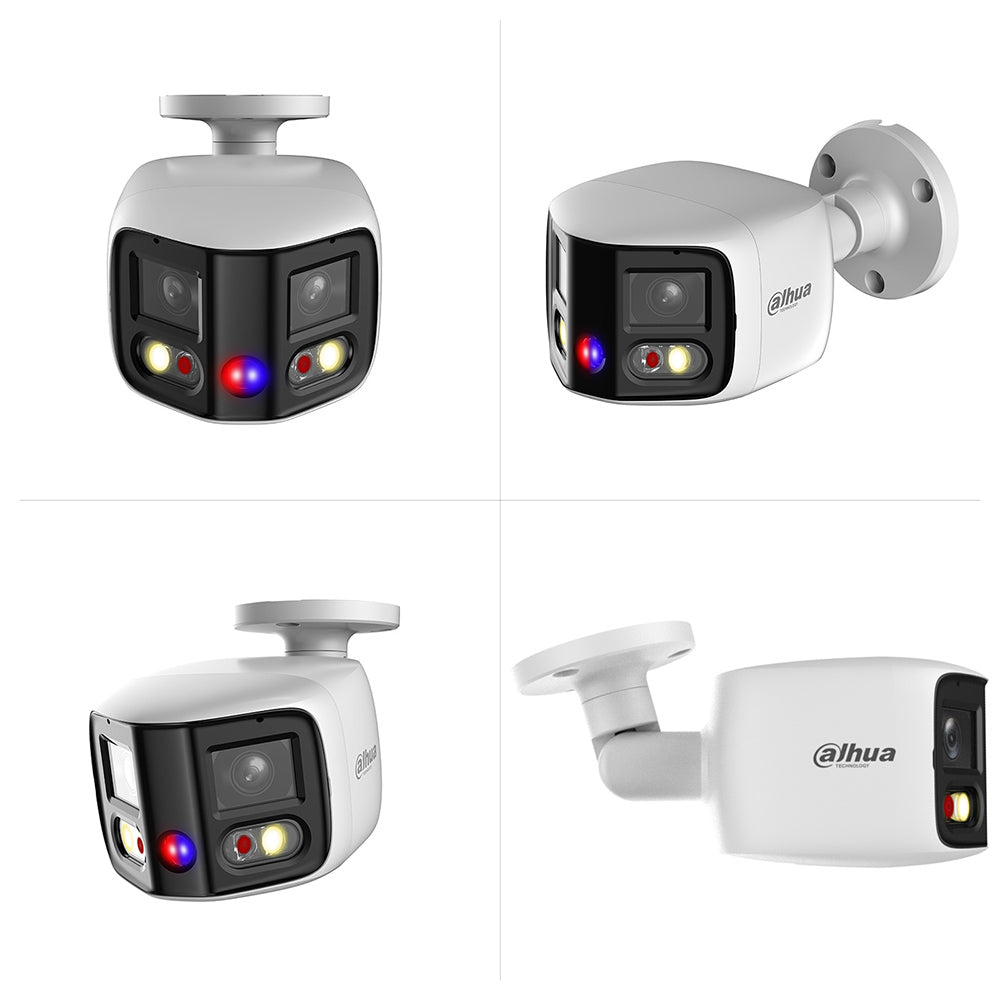

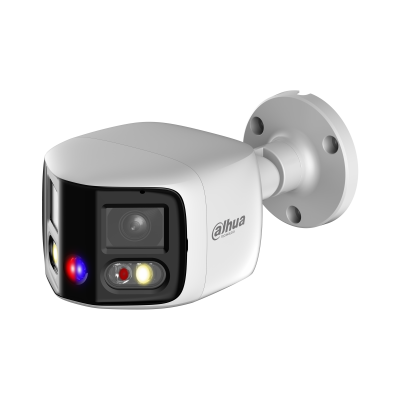

Dahua DH-IPC-PFW3849S-A180-AS-PV 180 Degree 8MP TiOC Duo Splicing WizSense Bullet Camera

20 in stock
SKU: DH-IPC-PFW3849S-A180-AS-PV
Write Review
$350.00
？Help me pick a ip camera
Warehouse

Get a Quote

Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 8MP Ultra HD resolution (4096 × 1860) — 4× more detail than 1080p, covering wide areas with a single camera.
  • 180° splicing image by pixel-level fusion — eliminates blind spots and reduces camera count on large perimeters.
  • TiOC active deterrence: red & blue warning lights plus alarm sounds triggered by AI detection of humans or vehicles.
  • Smart Dual Light with 3 illumination modes — auto-switches between IR and white light for full-color night details.
  • Built-in dual mic and speaker for secure two-way talk — hear and respond in real time without extra hardware.
  • 120dB True WDR handles strong backlight — clear images even with bright sun or headlights in the frame.
  • IP67 weatherproof rating — survives rain, dust, and extreme temperatures from –40°C to +60°C.
Datasheet Link
User Manual
Quick Start Guide
View details

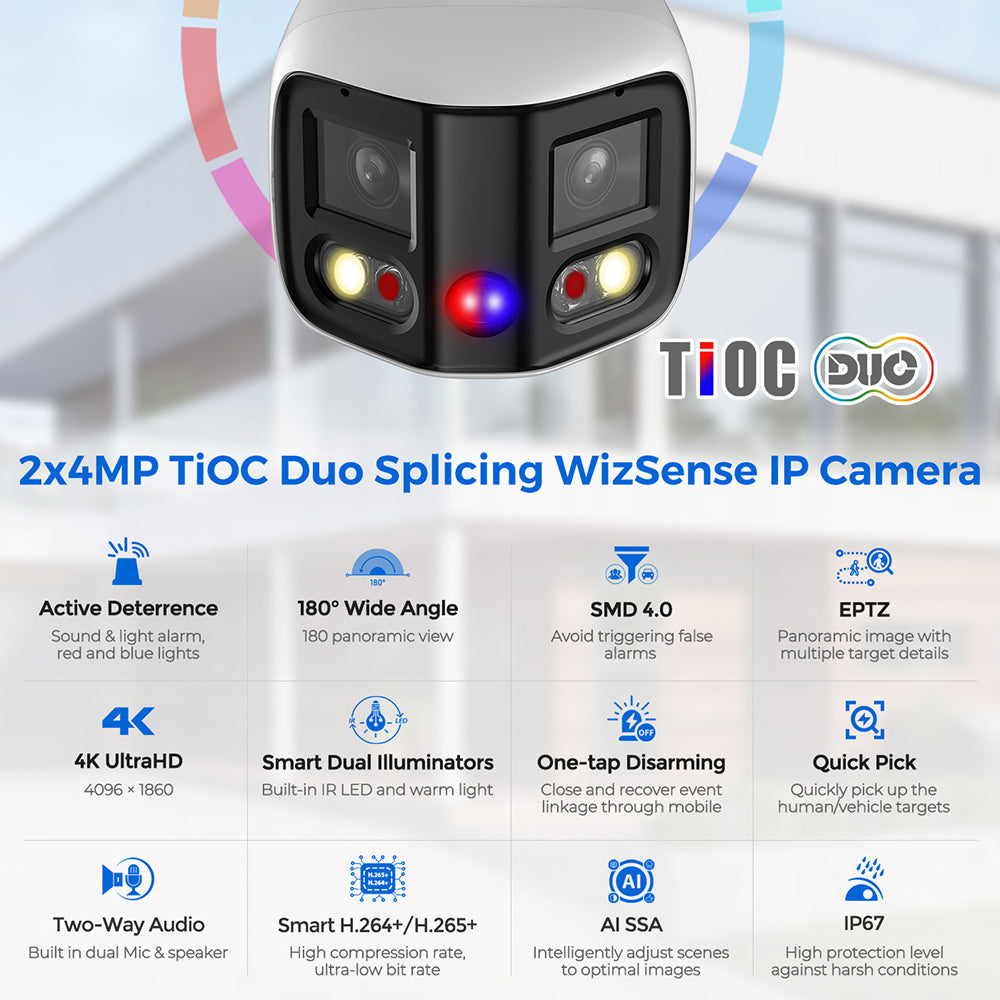

Dahua 180° TiOC Duo Splicing Camera with Active Deterrence

DH-IPC-PFW3849S-A180-AS-PV details_h2_image1
DH-IPC-PFW3849S-A180-AS-PV 1_1

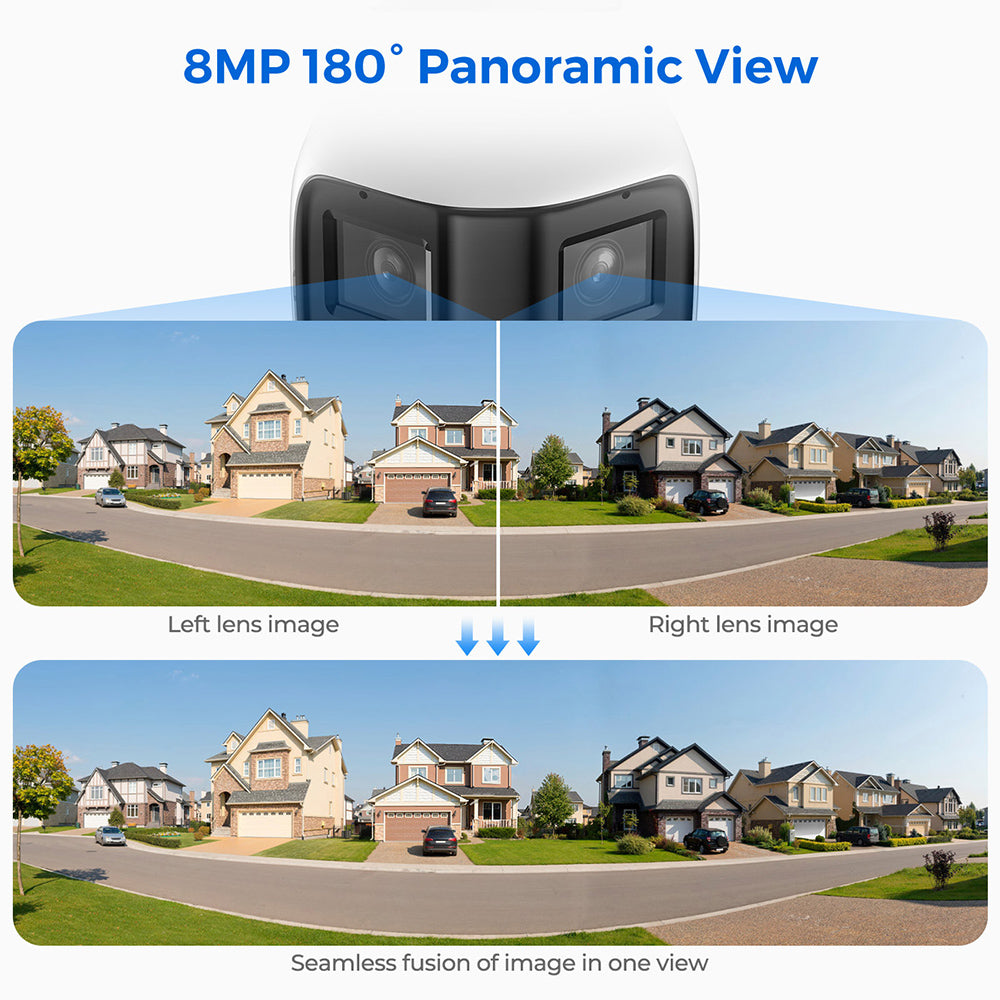

180° Wide View with Pixel-Level Fusion

This Dahua 180 degree camera uses dual 1/2.7" CMOS sensors and pixel-level splicing fusion to create a single, distortion-free panoramic image. You get 4096 × 1860 resolution — covering wide driveways, parking lots, or warehouse aisles with one camera instead of two. The 2.8 mm fixed lens delivers a 180° horizontal field of view, so nothing slips past the edges.

DH-IPC-PFW3849S-A180-AS-PV 2_2

Active Deterrence with TiOC Technology

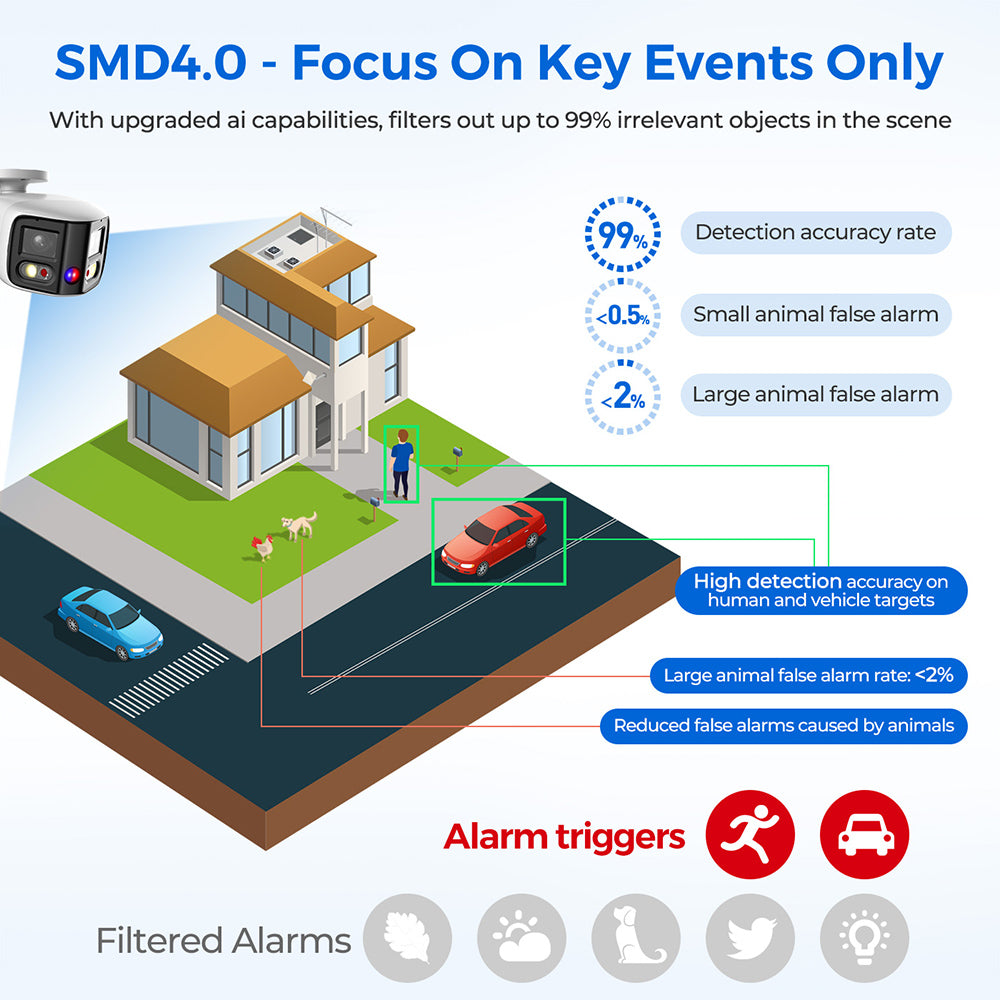

TiOC combines red and blue warning lights with a built-in alarm siren to actively scare off intruders. When the camera detects a person or vehicle (via SMD 4.0), it triggers the lights and sound automatically. You can also use the built-in dual mic and speaker for real-time two-way talk — warn someone off or communicate with a delivery driver without leaving your desk.

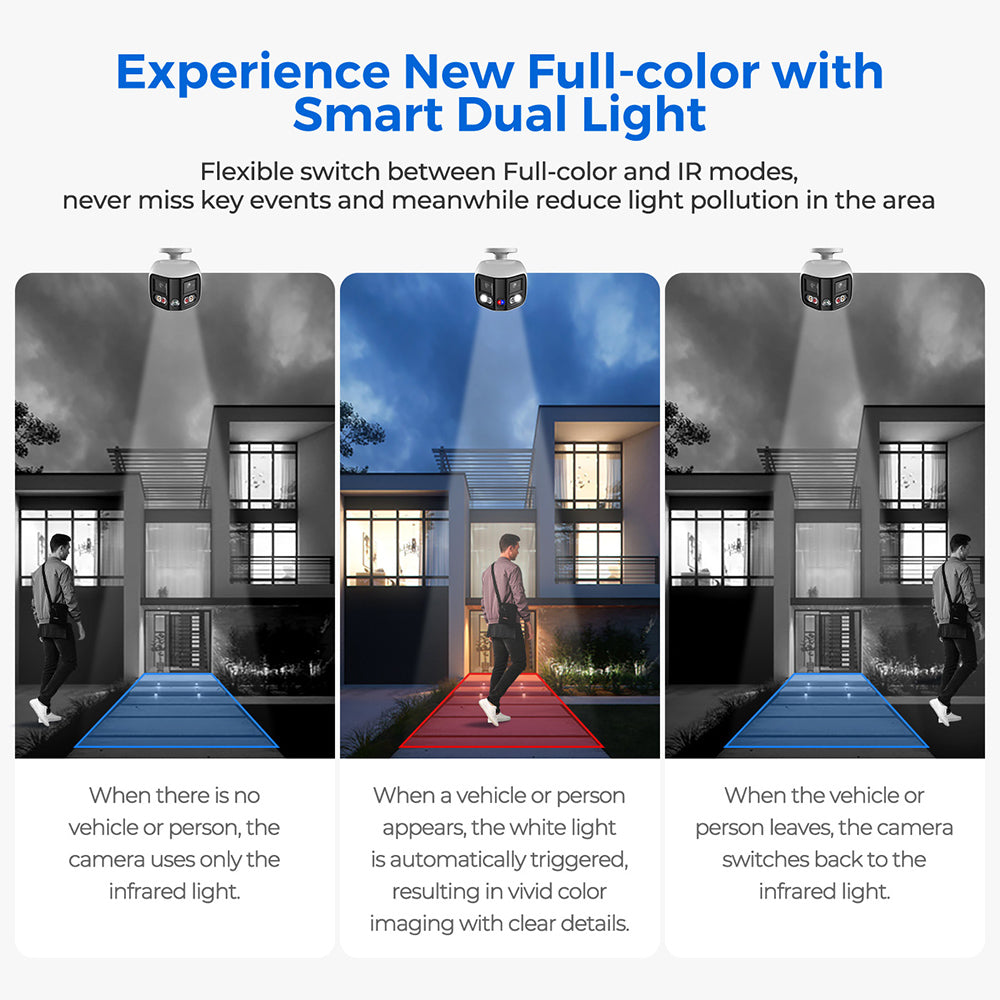

DH-IPC-PFW3849S-A180-AS-PV 3_3

Smart Dual Light for 24/7 Color Imaging

The Smart Dual Light system switches between IR and white LED illumination based on the scene. In low light, it uses IR for discreet monitoring. When motion is detected, it activates white light to capture full-color details — useful for identifying suspects or vehicle colors. Three illumination modes let you customize the behavior for your site.

DH-IPC-PFW3849S-A180-AS-PV 4_4

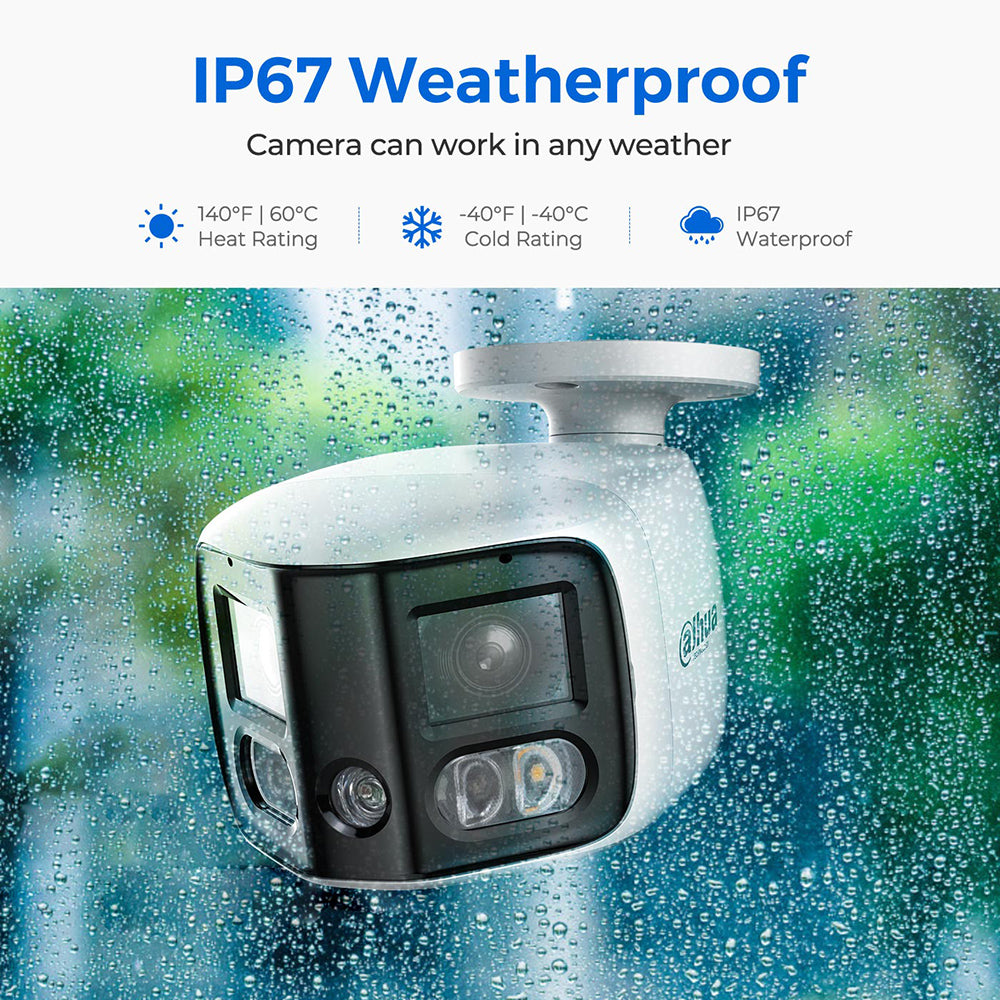

Built Tough for Outdoor Installation

Rated IP67, this bullet camera handles rain, dust, and temperature swings from –40°C to +60°C. The metal housing protects against impact and corrosion. Power it via 12V DC or PoE (802.3af) — one cable for data and power simplifies installation. A 512GB microSD slot supports weeks of local recording without an NVR.

Complementary products

Quick buy
Dahua DHI-NVR4216-16P-4KS3 16 Channel AI PoE NVR with Face Detection
$460.84
Quick buy
Dahua DHI-NVR4108HS-8P-4KS3 8 Channel AI SMD Plus 4K PoE NVR
$0.00
Quick buy
Dahua DH-IPC-HDW3849H-AS-PV-PRO 8MP Strobe Light Warning Active Deterrence Eyeball Camera
$340.00
Quick buy
Dahua DH-IPC-HDW2841TM-S Infrared Illuminator Light 8MP WizSense Eyeball Camera
$160.97
Quick buy
Dahua DH-SDT4E425-8P-GB-APV1 4MP 25x Auto Tracking Outdoor PTZ Camera
$836.79

Specification

Camera

Image Sensor Dual 1/2.7" CMOS
Max. Resolution 4096 (H) × 1860 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 25 m (82.02 ft) (IR LED)
Up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–77°
Rotation: 0°–360°

Lens

Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Field of View Horizontal: 180°; Vertical: 86°
Max. Aperture F1.4
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)

DORI

2.8 mm Lens 2.8 mm
Detect 50.6 m (166.01 ft)
Observe 20.2 m
(66.27 ft)
Recognize 10.1 m
(33.14 ft)
Identify 5.1 m
(16.73 ft)

Intelligence

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection
SMD SMD 4.0
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
EPTZ Enlarge and track the targets of intelligent alarms

Video

Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265; AI H.264
\*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 4096 × 1860@(1–20 fps )
Sub stream: 1200 × 530@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
\*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 6 kbps –16384 kbps
H.265: 6 kbps –16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Privacy Masking 4 areas
Defog Yes

Audio

Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Max power consumption: 2 W; max sound level at 10 cm: 110 dB
\\* Test results from laboratory
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Security Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 8 and later
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS; Android

Certification

Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 3.4 W (12 VDC); 3.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)

Environment

Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67

Structure

Casing Metal
Product Dimensions 183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)
Net Weight 695 g (1.53 lb)
Gross Weight 870 g (1.92 lb)

FAQ

Does this camera really cover a full 180 degrees?

Yes. The dual sensors and pixel-level splicing fusion create a single 180° horizontal field of view. You get a seamless panoramic image without distortion.
Can I use this camera with a Dahua NVR?

Yes. It works with Dahua NVRs and supports ONVIF for third-party compatibility. Use the DMSS app for remote viewing on your phone.
How does the active deterrence work?

When the camera detects a person or vehicle, it activates red and blue warning lights and plays an alarm sound. You can also trigger two-way talk through the built-in mic and speaker.
What is the night vision range?

The IR illuminators reach up to 25 meters. The Smart Dual Light also provides white light for full-color night imaging when motion is detected.
