By Dahua

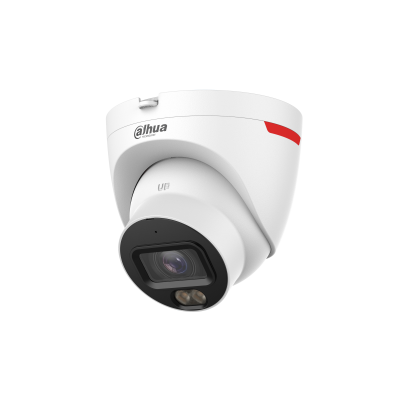

Dahua DH-IPC-HDW2849T-S-PRO 8MP WizColor SMD Plus Eyeball Camera
SKU:
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 8MP WizColor Imaging: A 1/1.8-inch sensor, F1.0 aperture and AI-ISP support detailed color video in low-light scenes.
- Two Viewing Options: Select a 2.8 mm lens for wider coverage or 3.6 mm for more concentrated framing.
- Human and Vehicle Filtering: Tripwire, intrusion and SMD Plus help prioritize relevant targets over general scene movement.
- Super AI Coding: AI-assisted encoding improves bandwidth and storage efficiency while retaining useful video detail.
- Local Audio and Recording: A built-in microphone and MicroSD support up to 256 GB enable audio capture and edge storage.
- Compact Outdoor Design: The adjustable eyeball housing supports IP67 protection and 12 VDC or IEEE 802.3af PoE power.
Dahua DH-IPC-HDW2849T-S-PRO 8MP WizColor SMD Plus Eyeball Camera
Details
Low-Profile Monitoring with 8MP WizColor Imaging
The Dahua DH-IPC-HDW2849T-S-PRO is an 8 MP WizColor fixed-focal eyeball network camera suited to shops, offices, entrances and building perimeters where a compact camera profile is preferred. Its 1/1.8-inch CMOS sensor, F1.0 aperture and AI-ISP work together to retain color and target detail under low illumination.
The camera records 3840 × 2160 video at up to 20 fps. For applications that place greater priority on smoother movement, it supports 2688 × 1520 at up to 25 or 30 fps. Super AI Coding combines object detection, scene recognition and ROI-based processing to improve encoding efficiency for bandwidth- and storage-conscious systems.
Select the Appropriate Coverage Angle
- 2.8 mm lens: Provides a 110° horizontal field of view and warm-light illumination up to 20 metres.
- 3.6 mm lens: Provides a 93° horizontal field of view and warm-light illumination up to 30 metres.
- Flexible adjustment: Supports 360° pan, 78° tilt and 360° rotation during installation.
Filter Relevant Events at the Camera
Tripwire and intrusion rules classify human and vehicle targets, while SMD Plus helps reduce alarms caused by unrelated movement. The camera also supports refined event searches when used with a compatible Smart NVR. A built-in microphone adds audio capture, and a MicroSD card of up to 256 GB can provide local recording without replacing the benefits of centralized NVR storage.
Specification
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0004 lux@F1.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 20 m (65.62 ft) (Warm light); 3.6 mm: Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Warm light) |
| Angle Adjustment | Pan: 0° – 360°; Tilt: 0°– 78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 110°; V: 59°; D: 131°; 3.6 mm: H: 93°; V: 49°; D: 110° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 2.8 m (9.19 ft); 3.6 mm: 4 m (13.12 ft) |
| DORI Distance | 2.8 mm: Detect 84.0 m (275.59 ft), Observe 33.6 m (110.24 ft), Recognize 16.8 m (55.12 ft), Identify 8.4 m (27.56 ft); 3.6 mm: Detect 102.0 m (334.65 ft), Observe 40.8 m (133.86 ft), Recognize 20.4 m (66.93 ft), Identify 10.2 m (33.46 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) (Includes smart codec technology, Smart H.265+ and Smart H.264+) |
| Video Frame Rate | Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); Third stream: 352 × 288@1 fps/352 × 240@1 fps |
| Streaming Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.4 W (12 VDC); 3 W (PoE); Max.: 5.6 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
| General Parameter | |
| Model | IPC-HDW2849T-S-PRO |
| Product Name | 8MP WizColor Fixed-focal Eyeball WizSense Network Camera |
| Datasheet Document | IPC-HDW2849T-S-PRO_S0_datasheet_20260925 (Release: 2026-09-25) |
| A&E Document | IPC-HDW2849T-S-PRO_A&E_20260922103612 (Release: 2025-02-20) |
