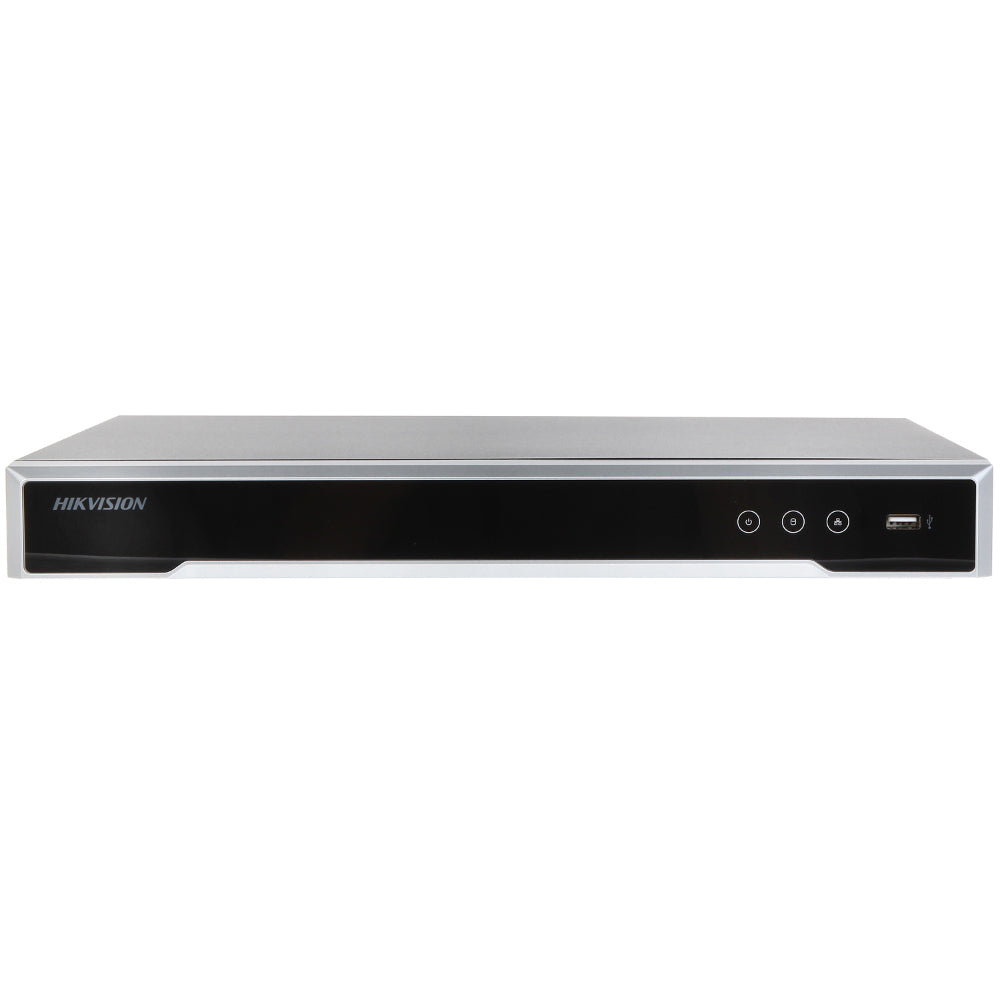

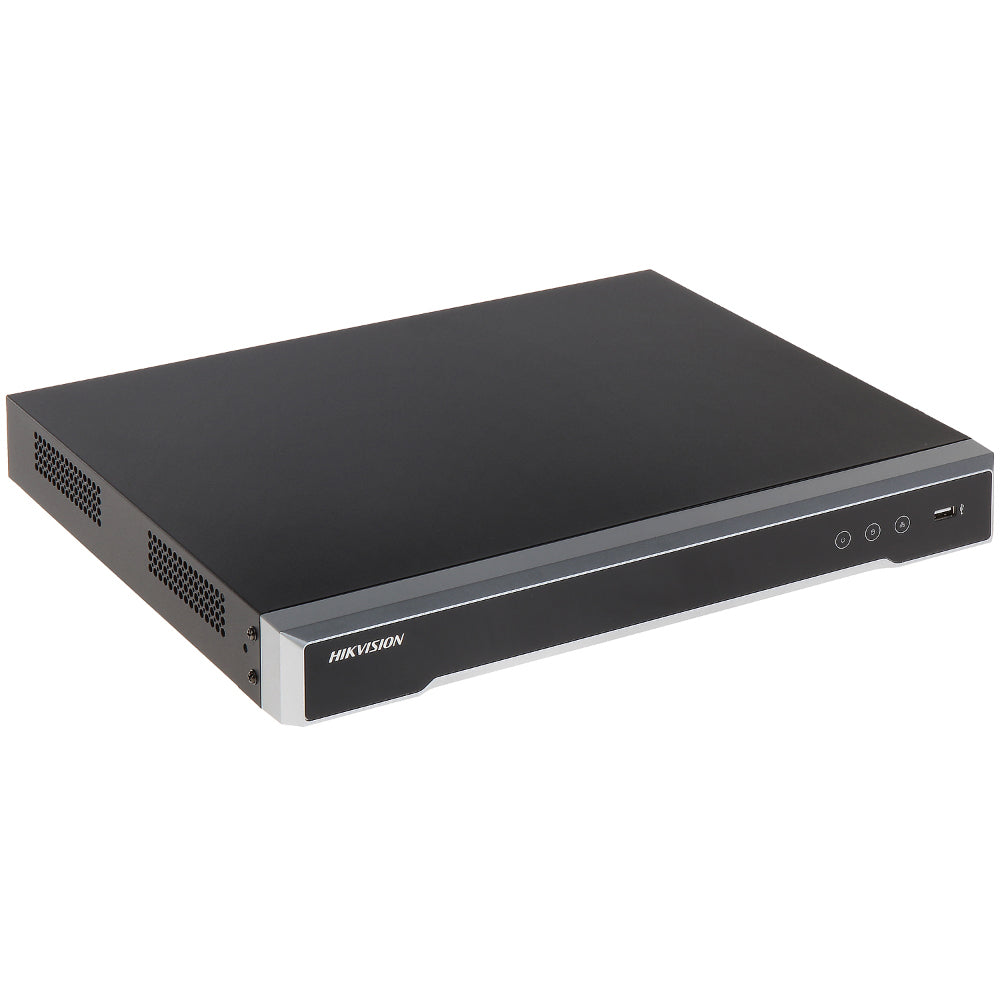

Hikvision DS-7616NI-K2 16 Channel 4K 2 HDD 1U NVR
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
(HDD not included)
- 16-channel NVR — connect up to 16 IP cameras at once
- Records in ultra-high 12MP resolution for crisp detail
- 2 HDD bays support up to 32TB total storage
- Smart H.265+ compression saves up to 75% storage vs H.264
- Free remote viewing via Hik-Connect app from anywhere
- Works with all ONVIF-compliant IP cameras
Details
16 Channels, One Powerful NVR
This 16-channel NVR lets you connect up to 16 IP cameras simultaneously. Record in ultra-high 12MP resolution to capture every detail. With 2 HDD bays supporting up to 32TB total storage, you have plenty of room for extended recording.
Save Storage with Smart H.265+
Smart H.265+ compression cuts storage needs by up to 75% compared to H.264. That means longer recording times without buying extra hard drives. You get the same high-quality video while using less space.
Easy Setup, Anywhere Access
Plug in your cameras and you are ready to go. The NVR supports ONVIF-compliant IP cameras, so you can mix and match brands. Use the free Hik-Connect app to view live or recorded footage from your phone or tablet, no matter where you are.
Built for Reliable Operation

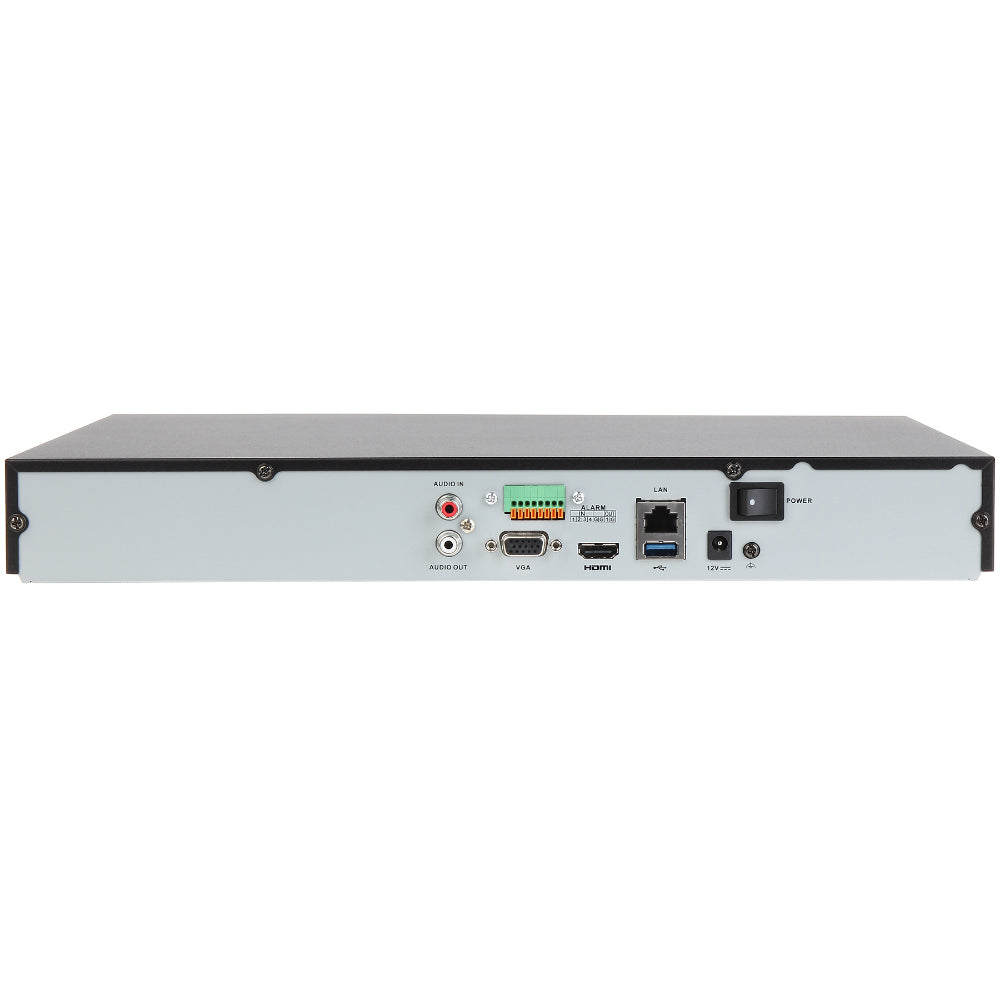

Designed for 24/7 use, this NVR operates in temperatures from -10°C to 55°C. It includes 1 HDMI 4K output and 1 VGA output for flexible monitor connection. With 4 alarm inputs and 1 alarm output, you can integrate sensors and alerts easily.
Specification
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio | Input1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | Smooth Playback (HC) ON : 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/9-ch@1080p (30 fps) Smooth Playback (HC) OFF : 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/10-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote Connection | 128-ch |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power | Supply12 VDC, 3.33A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension | (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| ≤ | 1 kg (without HDD, 2.2 lb.) |
| Certification | |
| FCCPart | 15 Subpart B, ANSI C63.4-2014 |
| CEEN | 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. |
