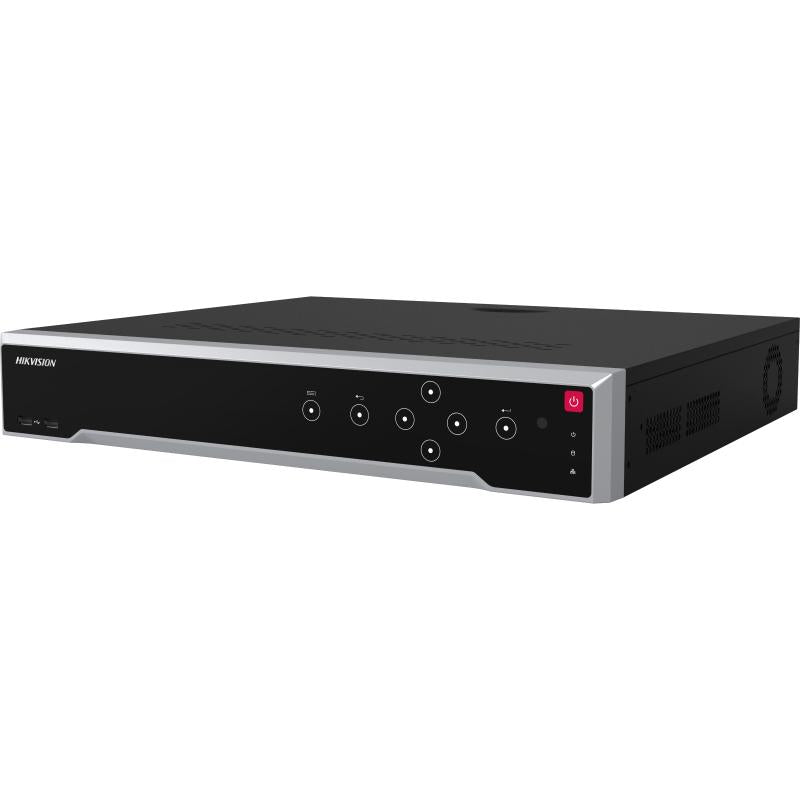

Hikvision DS-7716NI-M4/16P 16 Channel 8K 1.5U PoE NVR
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
(HDD not included)
- 16-channel NVR – connect up to 16 IP cameras at once, no extra switch needed
- Built-in 16-port PoE switch powers cameras directly – saves on cabling and labor
- Records in ultra-high 12MP resolution – sharp details for identification
- 4 HDD bays support up to 64TB total storage – keep months of footage
- Smart H.265+ compression cuts storage use by up to 75% vs H.264
- Free remote viewing via Hik-Connect app – check your site from anywhere
- Works with all ONVIF-compliant IP cameras – flexible camera choices
Details
One Box, 16 Cameras, Zero Extra Switches
This Hikvision NVR packs a 16-port PoE switch right into the unit. You connect up to 16 IP cameras directly to the back panel, and the NVR handles both data and power over a single cable. No separate switch, no messy wiring, no extra cost. For installers, this cuts labor time and simplifies the whole setup.
Record in 8K Clarity, Store More with H.265+
The DS-7716NI-M4/16P records in ultra-high 12MP resolution, so you capture fine details like license plates and faces. With Smart H.265+ compression, you save up to 75% storage compared to H.264. That means you can keep more footage on the same hard drives – up to 64TB across 4 bays – without sacrificing quality.
Built for Real-World Installations
This NVR supports 16-channel playback and offers flexible recording modes – continuous, motion, alarm, or schedule. It has 1 HDMI 8K output and a second HDMI 4K output for dual-monitor setups. With 16 alarm inputs and 9 alarm outputs, you can integrate sensors and triggers easily. It also supports two-way audio via RCA.
Reliable Hardware, Easy Remote Access
The unit runs on 100-240 VAC power and operates in temperatures from -10°C to 55°C, so it handles most indoor environments. Use the free Hik-Connect app to view live feeds and playback from your phone or tablet, anywhere. The NVR is ONVIF-compliant, meaning it works with a wide range of IP cameras, not just Hikvision models.
Specification
| Video and Audio | |
| IP Video Input | 16-ch Up to 32 MP resolution \*: The NVR supports up to 8-ch 32/24/16 MP IP video inputs. |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI | 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI | 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz \*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF \*: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps); |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | N/A |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl | 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. \*: The Ctrl 12V power is controlled by alarm output 9. |
| DC | 12V12 VDC, 1 A power output |
| General | |
| Power | Supply100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension | (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| ≤ | 5 kg (without HDD, 11 lb.) |
| Certification | |
| FCCPart | 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Cyber Security | |
| EN | 303645Support |
| Secure Boot | Support |
| Secure Component Verification SVCSupport | |
| Password Protection | Support |
| IP & MAC Address Filtering | Support |
| HTTPS Encryption | Support |
| Live View & Playback Stream EncryptionSupport | : AES128 |
| IEEE | 802.1X(EAP-TLS) Network Access ControlSupport |
| Signed Firmware | Support |
| Others | Digest authentication: Support User access log : Support Centralized certificate management : Support Brute force delay protection : Support \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. |
