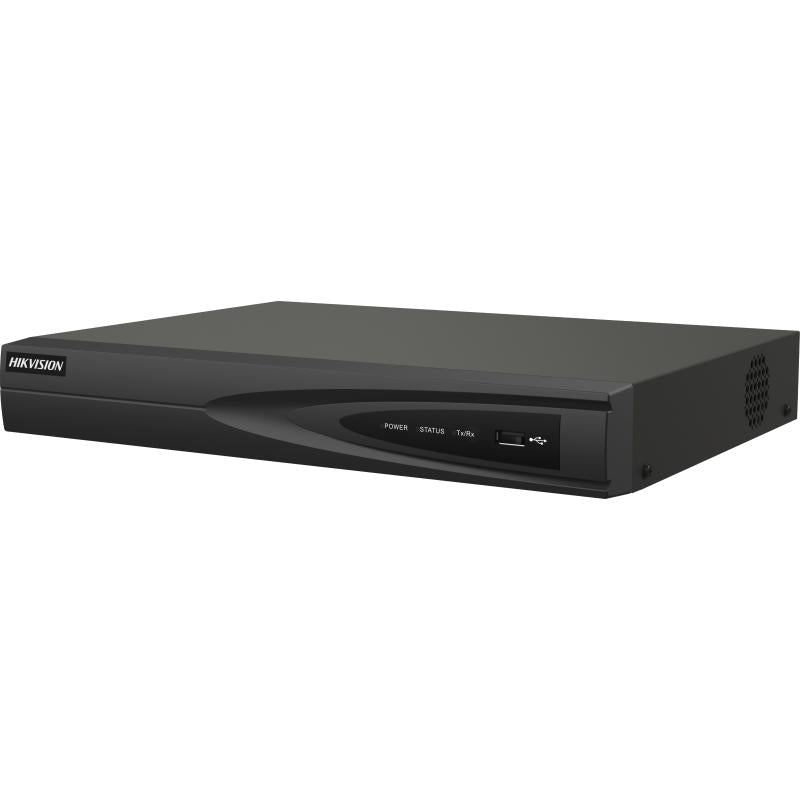

Hikvision DS-7604NI-Q1/4P 4K 4-Channel NVR with AI Detection
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
(HDD not included)
- 4-channel NVR — connect up to 4 IP cameras simultaneously
- Records in crystal-clear 4K Ultra HD (8MP) resolution
- Built-in 4-port PoE switch — no extra switch or power adapters needed
- 1 HDD bay supports up to 8TB storage for extended recording time
- AI smart motion detection filters out false alarms — alerts only for people and vehicles
- Free remote viewing via Hik-Connect app — check your property from anywhere
- Smart H.265+ compression saves up to 75% storage vs H.264
Details
4 Channels, One Compact NVR
This Hikvision NVR handles up to 4 IP cameras at once, making it ideal for small businesses, retail shops, or homes. With a built-in 4-port PoE switch, you can power cameras directly from the NVR — no separate switch or power injectors needed. Just plug in the cameras and start recording.
4K Recording with Smart H.265+
Record in crisp 4K Ultra HD (8MP) to capture sharp details like license plates and faces. Smart H.265+ compression cuts storage usage by up to 75% compared to H.264, so you can store more footage on the 8TB HDD bay without sacrificing quality.
AI Motion Detection That Actually Works
Standard motion detection triggers false alarms from leaves, rain, or passing animals. This NVR uses AI to analyze video and alert you only when a person or vehicle enters the scene. You get fewer notifications and more meaningful ones — perfect for busy business owners.
Easy Setup and Remote Access
Plug in your cameras, add a hard drive, and you're ready to go. The NVR supports ONVIF-compliant cameras, so you can mix and match brands. Use the free Hik-Connect app to view live feeds or playback from your phone or tablet — anywhere, anytime.
Specification
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 1-ch;4-ch |
| Video and Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output, |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output, |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Recording | |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
| Synchronous playback | 4-ch |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Alarm In/Out | N/A (4/1 is optional) |
| General | |
| Power | Supply48 VDC, 1.35 A |
| Consumption | ≤ 10 W (without HDD, and PoE off) |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10% to 90% |
| Dimension | (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| ≤ | 1 kg (without HDD, 2.2 lb.) |
| Certification | |
| FCCPart | 15 Subpart B, ANSI C63.4-2014 |
| CEEN | 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. |
