By Hikvision

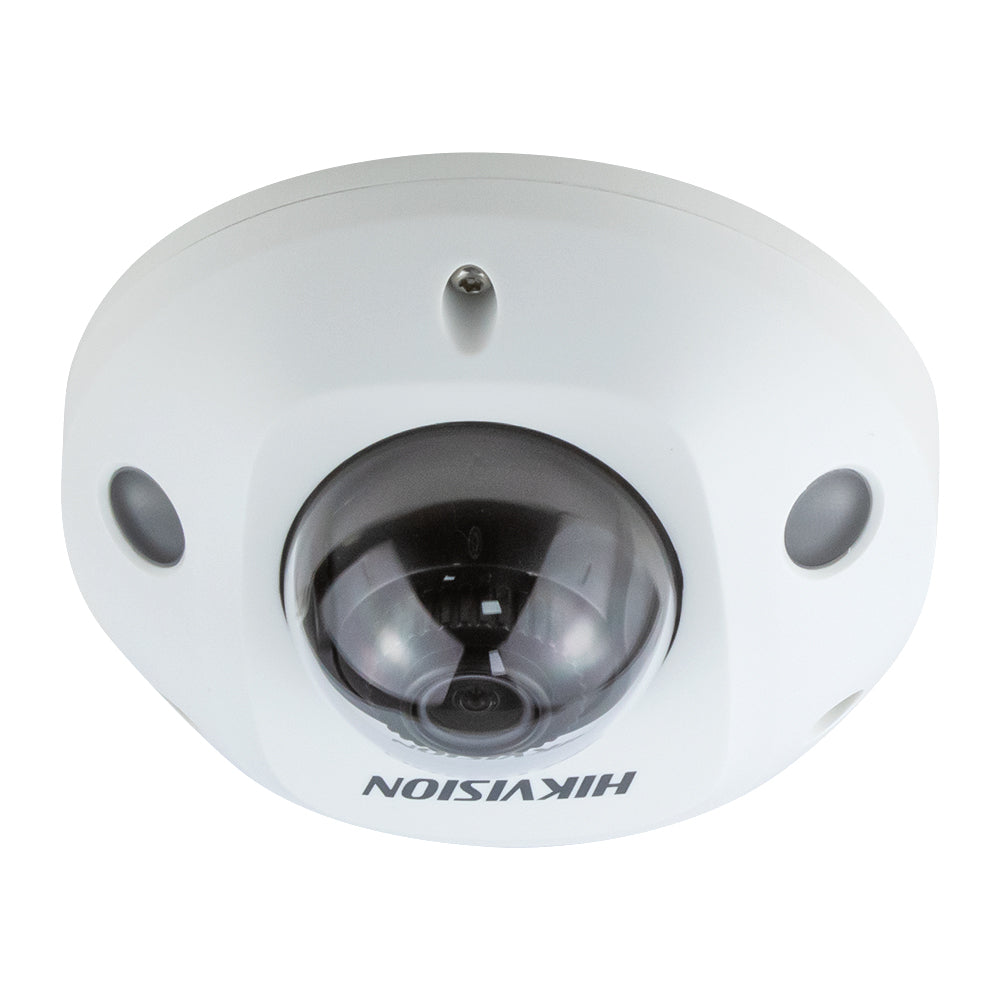

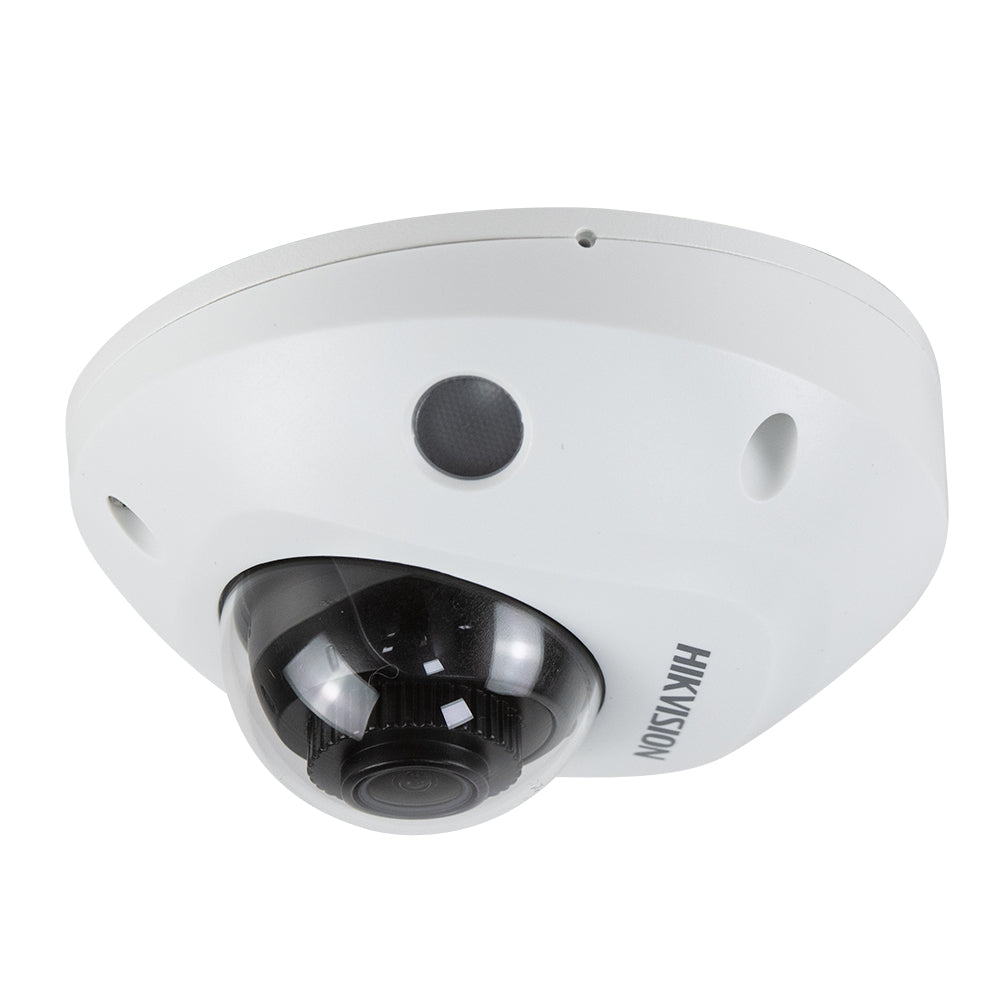

Hikvision DS-2CD2543G2-IS 4MP AcuSense Dome Camera with 120dB WDR

SKU: DS-2CD2543G2-IS
Price shown is for reference only. Contact us for the final price.
$246.75

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 4MP Super HD resolution (2688 × 1520) delivers crisp, detailed footage day and night
  • AcuSense AI technology filters false alarms — alerts only on people and vehicles
  • 120dB True WDR captures clear images even against strong backlight
  • 30m IR night vision for reliable after-dark monitoring
  • IP67 weatherproof housing with IK8 vandal resistance for outdoor installation
  • Audio I/O and alarm in/out for speakers, mics, and external sensors
  • Supports up to 512GB microSD card for weeks of local recording
Datasheet Link
View details

Details

High-Definition 4 MP Video in an Ultra-Compact Mini Dome

The Hikvision DS-2CD2543G2-IS / DS-2CD2543G2-IWS is a 4 MP AcuSense Fixed Mini Dome Network Camera designed for space-conscious, high-discretion surveillance across retail counters, corporate offices, hotel corridors, and building entry points. Powered by a 1/3" progressive scan CMOS sensor, it delivers clear 2.5K QHD video (2688 × 1520 @ 25/30 fps) with low-light color sensitivity down to 0.005 Lux. Available in 2 mm (128° FOV), 2.8 mm (104.3° FOV), and 4 mm (83.7° FOV) fixed lenses, its 3-axis manual adjustment (-30° to 30° pan, 0° to 75° tilt, 0° to 360° rotate) allows precise positioning in any ceiling or wall mounting orientation.

Intelligent AcuSense Analytics and Onboard Audio

Equipped with embedded deep-learning processors, this mini dome streamlines security monitoring while minimizing false-alarm fatigue:

  • Target Classification: Intelligently distinguishes human and vehicle targets during line crossing and intrusion events, ignoring foliage, rain, and moving shadows.
  • Integrated Audio & Alarm I/O: Built-in microphone with background noise filtering captures crisp ambient sound, complemented by 1 audio line-in, 1 audio line-out, and 1 alarm input/output terminal.
  • 30-Meter Smart IR: Integrated 850 nm infrared LEDs provide up to 30 meters of clear black-and-white night vision without overexposing foreground subjects.
  • 120 dB True WDR: Maintains exposure balance in bright backlighting, window reflections, and mixed indoor/outdoor lighting.

Durable Weatherproofing and Versatile Power Options

Engineered for dependable indoor and outdoor deployment, the camera features an IP67 weather-resistant and IK08 vandal-proof enclosure rated for operation from -30 °C to 60 °C. It supports local recording up to 512 GB via an onboard microSD card slot and operates efficiently via standard PoE (802.3af, max 6.5 W to 7 W) or 12 VDC, with the -IWS variant adding 2.4 GHz Wi-Fi connectivity up to 300 Mbps.

Specification

Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2 mm, horizontal FOV 128°, vertical FOV 75°, diagonal FOV 147° 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° 4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field 2 mm: 0.6 m to ∞ 2.8 mm: 1.4 m to ∞ 4 mm: 1.6 m to ∞
DORI
DORI 2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m 4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
\*Third stream is supported under certain settings. Video Compression
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
\*Third stream is supported under certain settings. Video Bit Rate
32 Kbps to 8 Mbps H.264 Type
Baseline Profile/Main Profile/High Profile H.265 Type
Main Profile Bit Rate Control
CBR/VBR Scalable Video Coding (SVC)
H.264 and H.265 encoding Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central \*Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Wi-Fi
Encryption Mode -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Frequency Range -W: 2.4 GHz to 2.4835 GHz
Channel Bandwidth -W: 20/40 MHz
Modulation -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Transfer Rate -W: 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: up to 300 Mbps
Wireless Range -W: Up to 80 m (The performance varies based on actual environment)
Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone Yes
Audio -IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes
Smart Event
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
General
Power
-IS: 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
Dimension Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")
Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 380 g (0.8 lb.)
With Package Weight Approx. 615 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Environment
CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013) IK8 (IEC 62262:2002)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

FAQ

What are the differences between the 2 mm, 2.8 mm, and 4 mm lens options?

The 2 mm lens provides an ultra-wide 128° horizontal field of view for broad room overviews and small elevator cabins; the 2.8 mm lens offers a 104.3° field of view, ideal for standard retail shops and reception lobbies; the 4 mm lens provides an 83.7° field of view with tighter focal coverage and longer identification range up to 34 meters, well-suited for corridors and checkout points.
How does AcuSense target classification work?

AcuSense utilizes deep-learning algorithms to differentiate humans and vehicles from other moving objects like trees, pets, insects, or changing light. When configured for line crossing or intrusion detection, the camera generates alerts only when a person or vehicle breaches the designated zone, eliminating up to 90% of nuisance alarms.
Does this camera support audio recording and external alarms?

Yes. The camera comes standard with a built-in microphone featuring environmental noise filtering for live audio capture. The -IS and -IWS models also provide external terminal blocks for 1 audio line-in, 1 audio line-out, and 1 alarm input / 1 alarm output (max. 12 VDC, 20 mA) to connect external sirens or sensors.
What is the difference between the -IS and -IWS models?

Both models share the identical 4 MP AcuSense optics, built-in microphone, audio/alarm terminals, and IP67/IK08 housing. The -IWS model adds built-in 2.4 GHz Wi-Fi (802.11b/g/n, up to 300 Mbps) with a wireless transmission range of up to 80 meters in open environments, allowing wireless network deployment where pulling Ethernet cables is difficult.
