By Hikvision

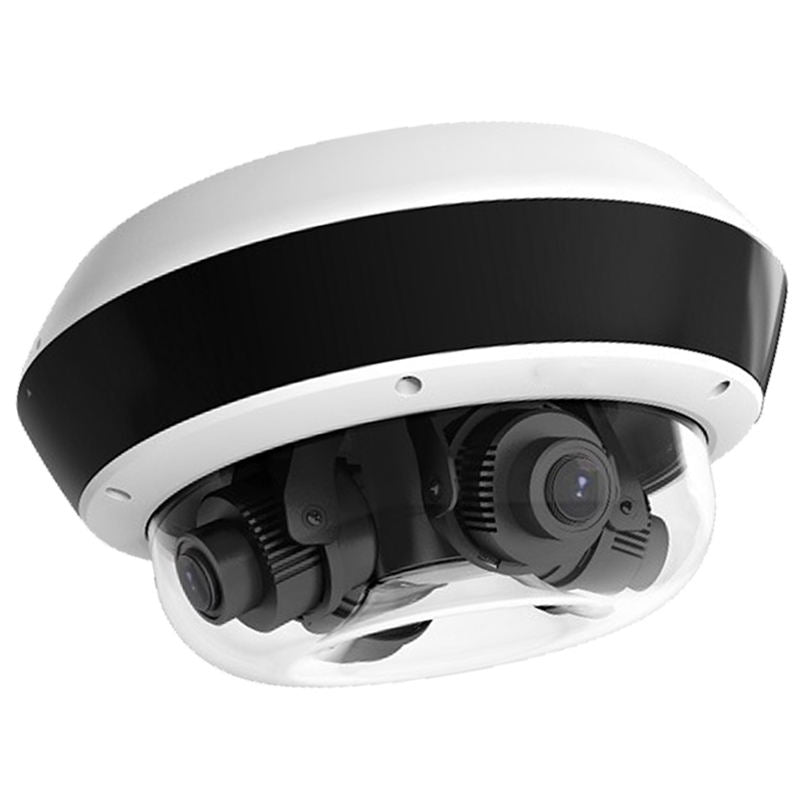

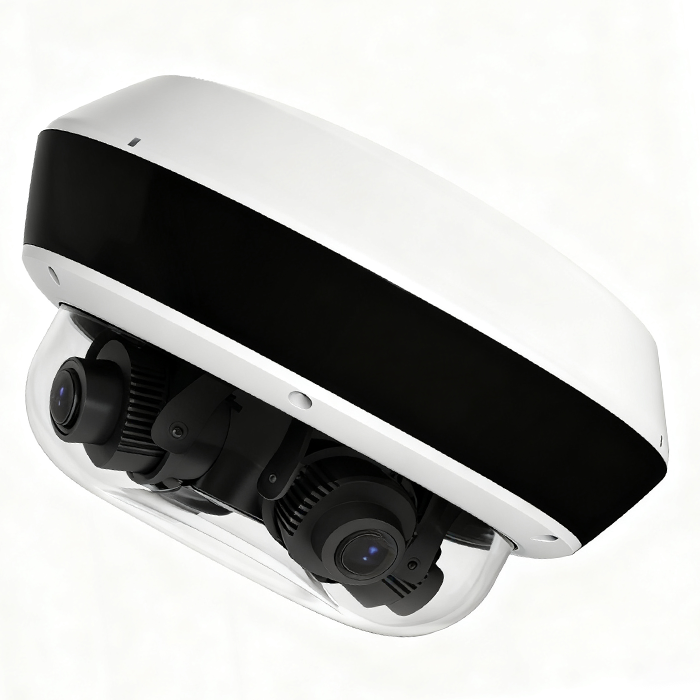

Hikvision DS-2CD6D54FWD-IZHS 5MP Varifocal PoE Security Camera with 4 Lenses

SKU: DS-2CD6D54FWD-IZHS
Price shown is for reference only. Contact us for the final price.
$2,618.00

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • Four 2.8–12mm varifocal lenses — adjust zoom and focus remotely, no ladder needed
  • 5MP Ultra HD resolution delivers 2.5× more detail than 1080p
  • 120dB True WDR captures clear images in strong backlight conditions
  • 30m IR night vision for reliable after-dark monitoring
  • IP67 weatherproof and IK10 vandal-resistant aluminum housing
  • AI face detection and smart motion detection for people and vehicles
  • External audio I/O — connect speakers and mics for two-way communication
Datasheet Link
View details

Details

Complete 360-Degree Multi-Angle Surveillance with 20 MP Resolution

The Hikvision DS-2CD6D54FWD-IZSNFC is a heavy-duty Quad-Directional Varifocal PanoVu Network Camera engineered to replace multiple fixed cameras at complex intersections, large plazas, and building corners. Housing four independent 1/2.7" 5 MP progressive scan CMOS sensors, it delivers up to 20 MP combined resolution (2560 × 1920 @ 25 fps per sensor). Each sensor is mounted on an internal track with 3-axis adjustment (±180° slide, 0° to 135° tilt, 0° to 355° rotate), allowing customized multi-angle coverage without blind spots.

Motorized Optical Zoom and Long-Range Fiber Transmission

Each of the four camera modules features an independent 2.8 mm to 12 mm motorized varifocal lens (horizontal FOV 30° to 101°), enabling operators to dial in the exact field of view required for each direction. Integrated smart IR illumination covers 10 to 30 meters at night across all channels.

  • Direct Fiber Connectivity: Equipped with an integrated 1000M FC single-mode fiber optical port for long-range data transmission up to 20 km, eliminating the need for external media converters.
  • Smart Video Analytics: Supports face detection and behavior analytics including line crossing, intrusion, region entrance/exit, and unattended baggage detection.
  • 120 dB True WDR & EIS: Electronic Image Stabilization and true 120 dB Wide Dynamic Range maintain balanced contrast in challenging outdoor lighting.

Heavy-Duty Ingress Protection and Power Flexibility

Constructed with an aluminum alloy enclosure, the camera achieves IP67 weather resistance and IK10 vandal protection. Equipped with an internal heater, it operates in extreme climates from -40 °C to 60 °C. It supports versatile power input via Hi-PoE (42.5 to 57 VDC, 34 W max), 12 VDC, or 24 VAC, alongside 2 alarm inputs, 2 alarm outputs, audio I/O, and onboard storage up to 128 GB.

Specification

Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 2560 x 1920
Min. Illumination Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on
Shutter Time 1 s - 1/100,000 s
Day & Night IR Cut Filter
Angle Adjustment Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Lens
Focal Length & FOV 2.8mm to 12mm, Horizontal field of view: 30° to 101°,Vertical field of view: 22.4° to 73°,Diagonal field of view: 37° to 137°
Lens Mount Φ14
Aperture F1.6
Illuminator
Supplement Light Type IR
Supplement Light Range 10 m to 30 m
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720),60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480),60Hz: 24fps (704 × 480, 640 × 480),
Third Stream 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) Support
Region of Interest (ROI) Support 4 fixed region for each stream
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host Up to 32 users,3 levels: Administrator, Operator and User
Network Storage Micro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200
Web Browser IE8+, Chrome31-44, Firefox 30.0 - 51
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR, EIS
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
Ethernet Interface 1 RJ45 10 M/100 M/1000 M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC)
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo
Alarm 2 inputs, 2 outputs (up to 24 VD, 1A or 110 VAC, 500mA )
Reset Key Yes
Fiber OpticalFC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/ 1.25G, (Rx)1550 nm/1.25 G
Smart Event
General
Power
Material Aluminum alloy, engineering plastics
Dimension Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
Package Dimension 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
4.7 kg (10.3 lb.)
With Package Weight 7.7 kg (16.8 lb.)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). -H: -40 °C to 60 °C (-40 °F to 140 °F),Humidity 95% or less (non-condensing)
General Function One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter

FAQ

How does a quad-directional PanoVu camera differ from a panoramic fisheye camera?

Unlike a single fisheye camera that distorts edges and shares a single sensor across 360 degrees, this camera uses four separate 5 MP motorized varifocal sensors. Each sensor can be aimed, tilted, and zoomed independently along its circular track, delivering high pixel density and distortion-free 5 MP footage in four distinct directions simultaneously.
What are the network cabling options for long-distance perimeter installations?

The camera provides both a standard Gigabit RJ45 Ethernet port and a built-in 1000M FC single-mode single-fiber optical interface. For perimeter fences, highways, or large campus installations, you can connect fiber optic cabling directly to the camera for transmission distances up to 20 kilometers without external transceivers.
Can smart video analytics (VCA) run on all four camera channels at once?

Deep video analytics can be enabled on any single channel independently, or simultaneously across paired channels (Camera 01 & Camera 03, or Camera 02 & Camera 04), while basic motion detection and continuous recording operate across all four channels concurrently.
How much local storage does this camera support?

It has a microSD card slot that supports cards up to 128GB. That gives you weeks of local recording without a separate NVR.
