By Hikvision

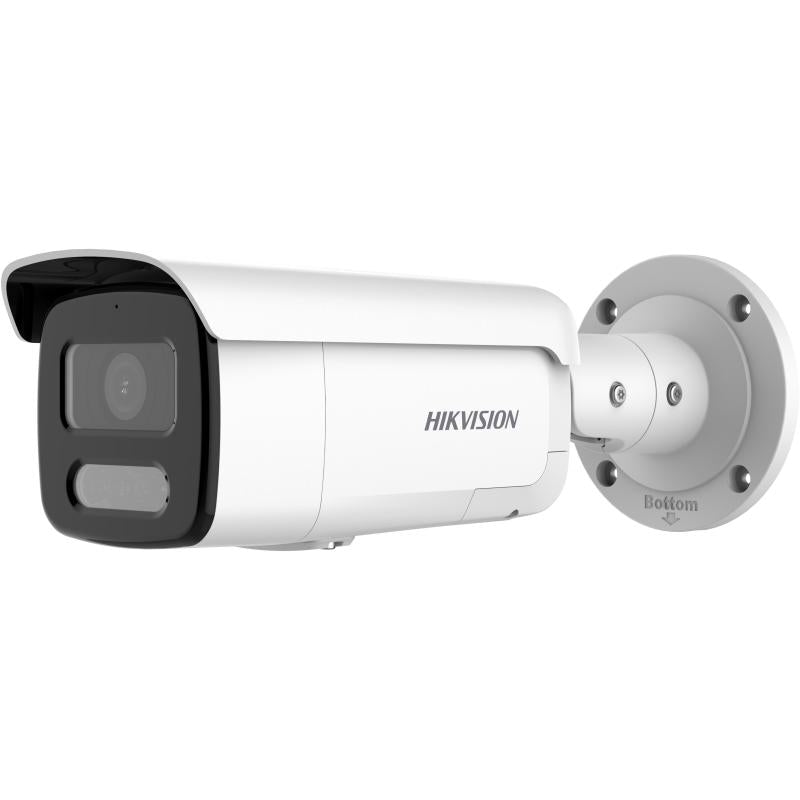

Hikvision DS-2CD2T87G2-LSU/SL 8MP ColorVu AcuSense Bullet Camera with Active Deterrence

SKU: DS-2CD2T87G2-LSU_SL
Price shown is for reference only. Contact us for the final price.
$340.25

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 24/7 full-color night vision with F1.0 super aperture — see clothing and vehicle colors in near darkness
  • Large 1/1.2" progressive scan CMOS sensor delivers superior low-light performance
  • AcuSense human and vehicle classification cuts false alarms from leaves, rain, and animals
  • Active deterrence with strobe light and audible warning — scares off intruders before they act
  • 130dB True WDR keeps faces and plates clear against strong backlight
  • Two-way audio lets you listen and talk through the Hik-Connect app
  • IP67 weatherproof metal housing survives rain, dust, and extreme temperatures
Datasheet Link
View details

Details

24/7 Full-Color 4K Ultra HD Surveillance

The Hikvision DS-2CD2T87G2-LSU/SL is an 8 MP ColorVu Fixed Bullet Network Camera engineered for uncompromising perimeter security. Powered by an expansive 1/1.2" progressive scan CMOS sensor and an ultra-large F1.0 super-aperture lens, it collects significantly more ambient light to deliver vivid, full-color 4K video (3840 × 2160 @ 24/25 fps) around the clock down to 0.0005 Lux. When zero ambient light is present, built-in smart supplemental warm white light illuminates targets up to 60 meters without reverting to monochrome infrared.

AcuSense Video Analytics and Active On-Site Deterrence

Equipped with onboard deep-learning algorithms, the camera delivers proactive perimeter defense by accurately classifying humans and vehicles while filtering out non-critical motion triggers:

  • Intelligent Perimeter Protection: Supports line crossing, intrusion, region entrance, and region exiting detection tailored strictly to human and vehicle targets.
  • Active Strobe & Audio Alarm: Flashes a bright white strobe light and sounds a customizable voice warning or siren through the integrated 2 W speaker (97 dB at 10 cm) to stop intrusions in real time.
  • Two-Way Audio Communication: Features a built-in microphone and speaker for crisp live two-way talk, alongside dedicated audio line-in and line-out terminal blocks.
  • 130 dB True WDR: Balances high-contrast outdoor lighting and harsh glares to retain critical shadow details.

Heavy-Duty All-Metal Housing and Flexible Deployment

Constructed with a heavy-duty all-metal front cover, body, and integrated 3-axis mounting bracket (pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°), the camera is IP67 weather-resistant for extreme outdoor environments from -30 °C to 60 °C. It supports standard PoE (802.3af, max 12.5 W) or 12 VDC power, local storage up to 512 GB via microSD, and 1 alarm input/output interface.

Specification

Camera
Image Sensor 1/1.2" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day & Night 24/7 color imaging
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Type Fixed focal lens, 2.8, 4, 6 mm optional
Iris Type Fixed
Aperture F1.0
Lens Mount M mount
Depth of Field 2.8 mm: 4.5 m to ∞ 4 mm: 7 m to ∞ 6 mm: 13 m to ∞
DORI
DORI 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type White Light
Supplement Light Range 60 m
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 regions of privacy mask
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
Reset Key Yes
Built-in Microphone Yes
Built-in Speaker 2 W, 10 cm: 97 dB
Audio
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Deep Learning Function
Face Capture Yes
General
Power
Material Front cover: metal, body: metal, bracket: metal
Dimension 289.9 mm × 93.5 mm × 91.2 mm (11.4" × 3.7" × 3.6")
Package Dimension 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
Approx. 1255 g (2.6 lb.)
With Package Weight Approx. 1769 g (3.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Environment
ProtectionIP 67 (IEC 60529-2013) \*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

FAQ

How does ColorVu technology provide full-color video in total darkness?

Unlike standard infrared cameras that switch to black-and-white video at night, ColorVu combines an oversized 1/1.2" sensor with an F1.0 super-aperture lens to capture maximum available light. In pitch darkness (0 Lux), built-in warm white LEDs illuminate the scene up to 60 meters, preserving true color evidence for vehicle and clothing identification.
How do the active strobe light and audio alarm trigger?

When the embedded AcuSense analytics detect a human or vehicle violating a configured perimeter zone (such as line crossing or intrusion), the camera instantly activates its flashing white strobe light and broadcasts a siren or pre-recorded voice warning through its built-in 97 dB speaker.
Which focal length option should I select for my installation?

The camera is available in three fixed focal lengths: 2.8 mm provides an ultra-wide 102° horizontal field of view for broad yard and parking lot overviews; 4 mm offers a balanced 88° view for driveways and building perimeters; and 6 mm delivers a focused 54° view with enhanced long-range identification up to 16 meters.
Can this camera be powered using a standard PoE switch?

Yes. The camera is fully compliant with standard IEEE 802.3af PoE (Class 3), requiring a maximum of only 12.5 W even with the 60-meter white light, audio speaker, and strobe active. It can also be powered by a standard 12 VDC (± 25%) power supply.
