By Hikvision

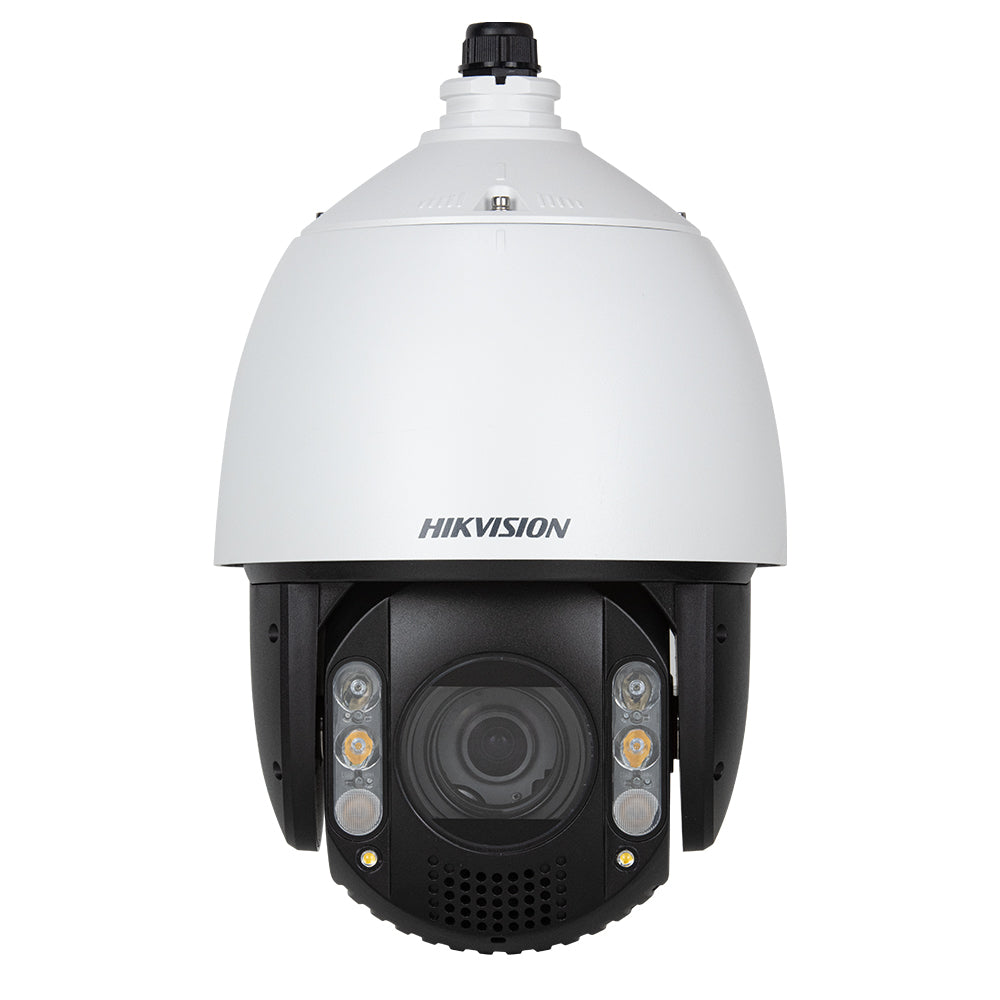

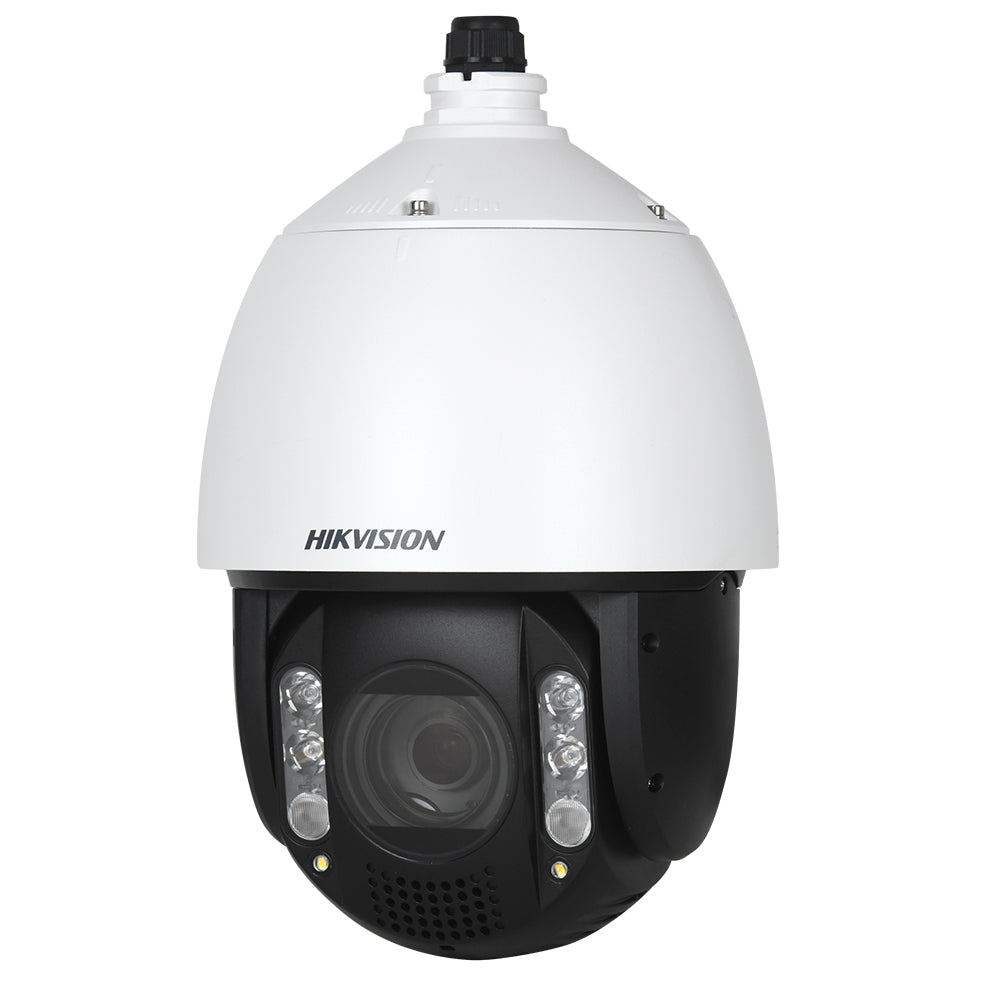

Hikvision DS-2DE7A812MCG-EB 8MP 12X ColorVu PTZ Camera with Auto Tracking
SKU: DS-2DE7A812MCG-EB
Price shown is for reference only. Contact us for the final price.
Regular price
$1,829.25
100% Official Brand / Serial Number Verifiable / 3-Year Warranty
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- 8MP Ultra HD with 1/1.8" sensor — captures sharp details even in low light
- 12X optical zoom (6.7-80.4mm) — zero in on license plates or faces from distance
- 360° endless pan, 90° tilt, and 240°/s preset speed — full coverage with zero blind spots
- Smart auto-tracking follows moving targets automatically — no manual control needed
- 150m IR night vision — see clearly in total darkness
- Built-in microphone for real-time audio monitoring — no extra hardware needed
- IP67 weatherproof and IK10 vandal-proof — built for harsh outdoor conditions
Hikvision DS-2DE7A812MCG-EB 8MP 12X ColorVu PTZ Camera with Auto Tracking
Details
24/7 Full-Color 4K Surveillance with 12× Optical Zoom
The Hikvision DS-2DE7A812MCG-EB is a 7-inch 8 MP 12× ColorVu Network Speed Dome engineered for high-clarity perimeter surveillance. Powered by a 1/1.8" progressive scan CMOS sensor and an ultra-large F1.2 aperture, it delivers crisp 4K UHD video (3840 × 2160 @ 24/25 fps) with vivid color reproduction even in low-light environments down to 0.0005 Lux. The 6.7 mm to 80.4 mm motorized zoom lens provides 360° endless pan and -15° to 90° auto-flip tilt, allowing operators to inspect distant areas without losing clarity.
Smart Hybrid Illumination and Active Deterrence
To balance discreet night monitoring with active deterrence, the camera combines long-range infrared and warm white light illumination:
- Smart Hybrid Light: Provides covert surveillance with up to 150-meter IR, automatically activating the 100-meter white light when human or vehicle intrusions occur to record full-color evidence.
- AcuSense Perimeter Defense: Deep-learning algorithms distinguish humans and vehicles across line crossing and intrusion zones to minimize false alarms.
- Active Voice & Strobe Warning: Features an integrated white flashing light and a built-in speaker (effective up to 30 meters) to broadcast customizable voice prompts and audible sirens.
- Smart Auto-Tracking & Face Capture: Automatically tracks moving targets across the scene while concurrently capturing up to 5 human faces.
Industrial Weatherproofing and Flexible Connectivity

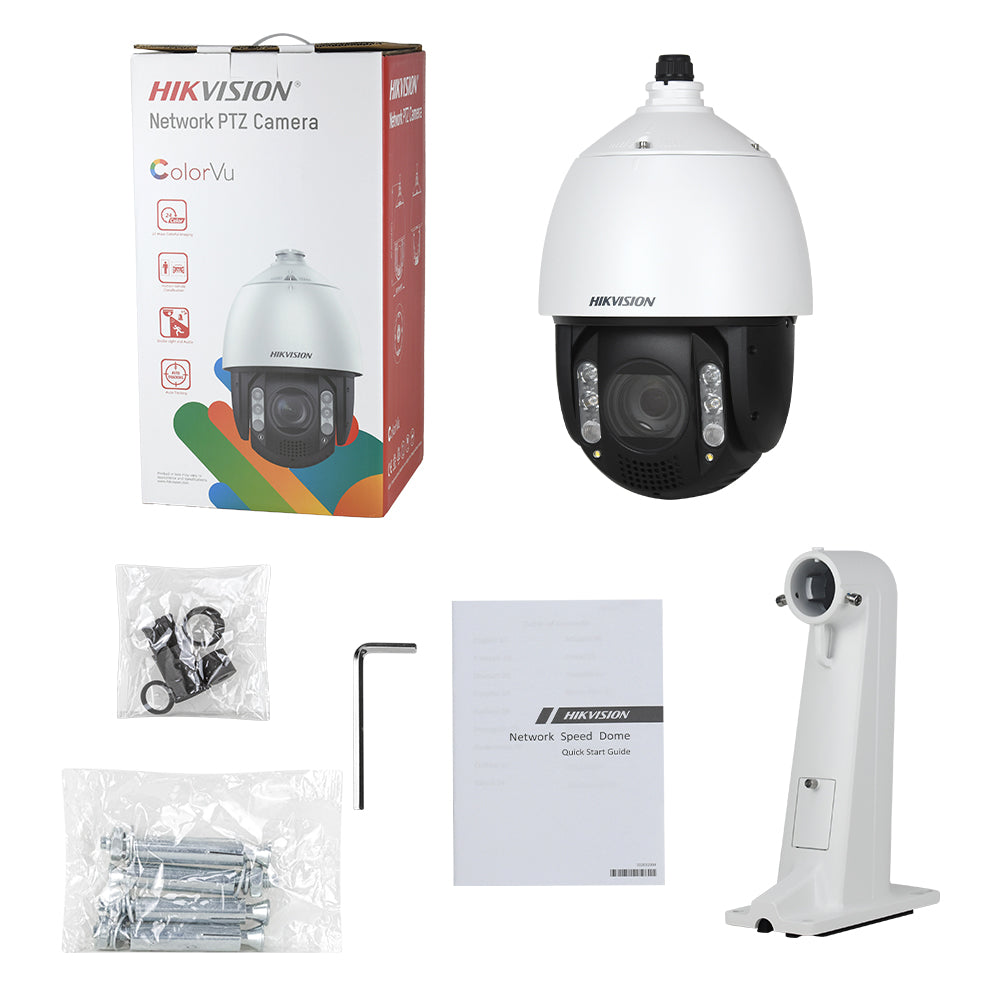

Constructed with an ADC12 aluminum housing, the speed dome boasts IP67 ingress protection, IK10 vandal resistance, and an operating temperature range of -30 °C to 65 °C with internal demisting. It supports versatile power input via 24 VAC (42 W max) or Hi-PoE, comes standard with a DS-1602ZJ wall mount bracket, and features expanded local storage up to 512 GB via microSD, 2 alarm inputs, 1 alarm output, and bidirectional audio.
Specification
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light |
| Shutter Speed | 1/1 s to 1/30000 s |
| Day & Night | IR cut filter |
| Zoom | 12 × optical, 64 × digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 6.7 mm to 80.4 mm |
| FOV | Horizontal field of view: 53° to 8.1° (wide-tele), Vertical field of view: 31.3° to 4.6° (wide-tele), Diagonal field of view:59.6° to 9.3° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.2 |
| Zoom SpeedApprox. | 5.8 s |
| Illuminator | |
| Supplement Light Type | Hybrid (IR and White Light) |
| Supplement Light Range | White light: up to 100 m IR: up to 150 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power | -off MemoryYes |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM |
| Audio Bit Rate | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16kHz, 32kHz, 48kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,SSL/TLS,WebSocket,WebSockets,SRTP |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | \> 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to | 512 GB |
| Built-in Speaker | 1 built-in speaker with effective distance reaching max. 30 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 inputs, 1 output |
| Reset | Yes |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| General | |
| Power | |
| Dimension | Ø 220 mm × 357.3 mm (Ø8.66" × 14.07") |
| Approx. | 5.5 kg (12.13 lb.) |
| Material | ADC12 |
| Operating Condition- | 30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist | Yes |
