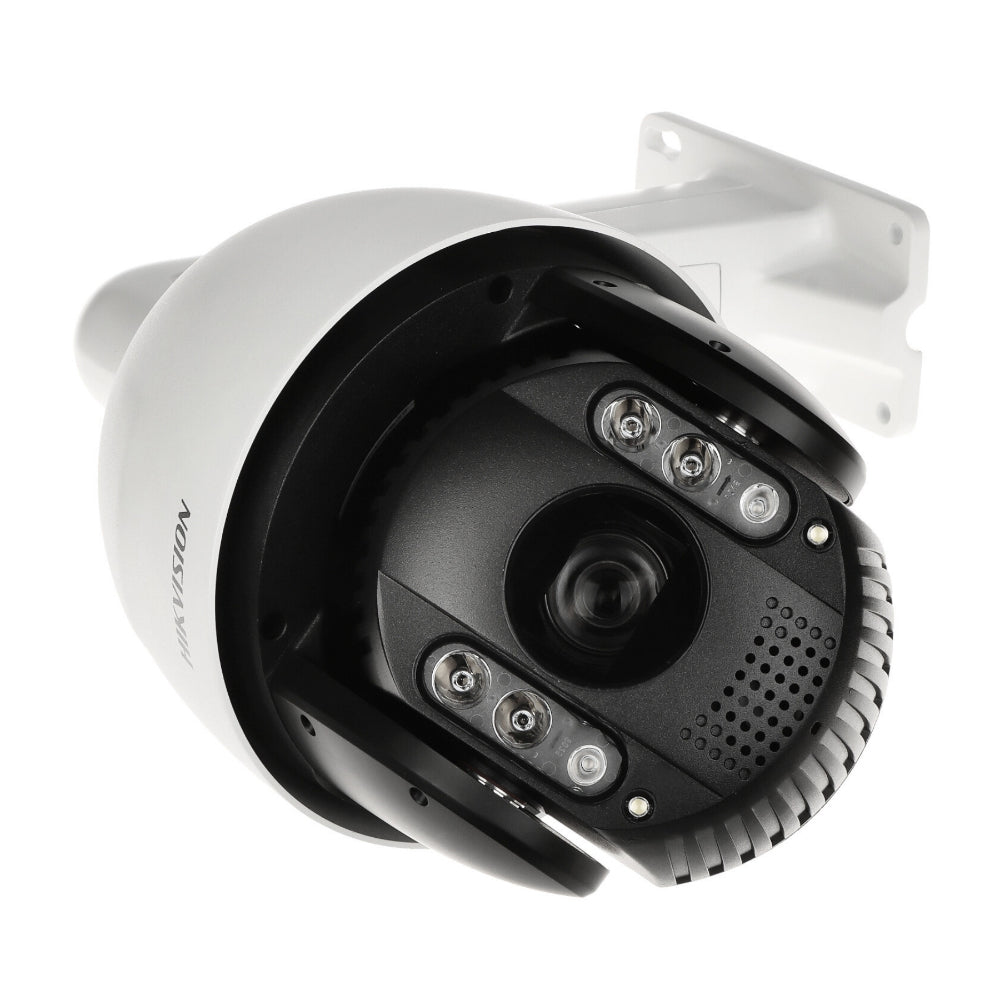

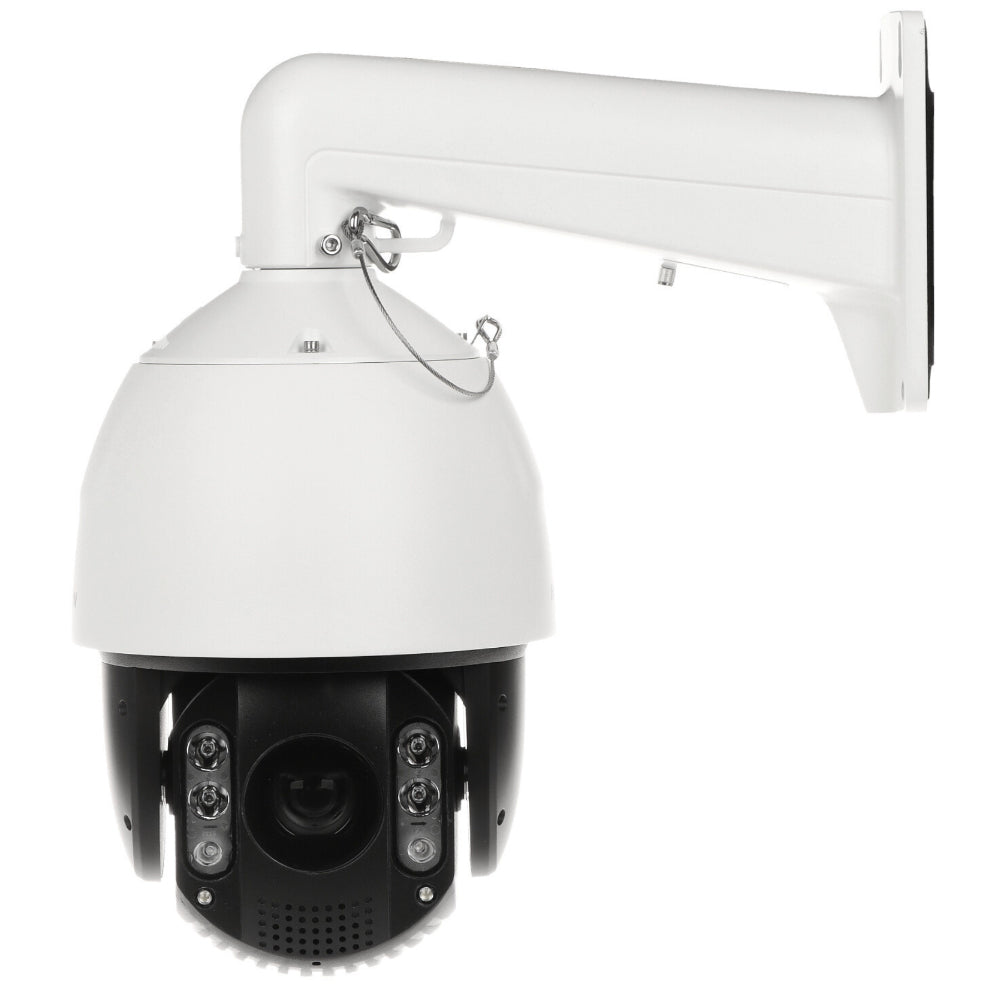

Hikvision DS-2DE7A825IW-AEB 8MP 25X DarkFighter Auto-Tracking Speed Dome Camera

SKU: DS-2DE7A825IW-AEB
Price shown is for reference only. Contact us for the final price.
$835.00

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 8MP 4K Ultra HD resolution with 1/1.8" sensor for exceptional low-light performance
  • 25x optical zoom captures license plates and faces up to 300ft away
  • 360° endless pan, 90° tilt, and 240°/s preset speed for full-area coverage
  • Smart Auto-Tracking 3.0 locks onto and follows moving targets automatically
  • 200m IR night vision delivers clear images in complete darkness
  • Built-in microphone for real-time audio monitoring without extra hardware
  • IP66 weatherproof and IK10 vandal-resistant housing for outdoor installation
Datasheet Link
View details

Details

High-Precision 4K PTZ Surveillance with 25× Optical Zoom

The Hikvision DS-2DE7A825IW-AEB(T5) is an 8 MP 25× IR Network Speed Dome designed for high-resolution wide-area monitoring. Powered by a 1/1.8" progressive scan CMOS sensor and a 5.9 mm to 147.5 mm motorized zoom lens, this camera delivers 4K detail (3840 × 2160 @ 24/25 fps) with 360° endless pan and -15° to 90° auto-flipping tilt. Hikvision DarkFighter technology ensures superior low-light color performance down to 0.005 Lux, complemented by adaptive smart IR illumination extending up to 200 meters at night.

AcuSense Analytics and Active Deterrence

Equipped with onboard deep-learning processing, the speed dome enhances perimeter security by accurately classifying humans and vehicles while ignoring false triggers like foliage or animals.

  • Smart Auto-Tracking: Automatically follows detected human or vehicle targets across the surveillance area.
  • Simultaneous Face Capture: Detects, tracks, and selects the optimal snapshot for up to 5 faces concurrently.
  • Active Siren and Light: Features a built-in flashing white warning light and an integrated speaker (effective up to 30 meters) to broadcast customizable voice prompts or sirens upon intrusion.

Heavy-Duty Outdoor Reliability and Interfaces

Housed in an ADC12 aluminum enclosure with IP66 weatherproofing, IK10 vandal resistance, and an internal demist heater, the camera operates reliably from -30 °C to 65 °C. It supports versatile installation via 24 VAC or Hi-PoE (42 W max) and includes a standard DS-1602ZJ wall mount bracket in the box. Comprehensive connectivity includes 2 alarm inputs, 1 alarm output, audio in/out, and an onboard microSD slot supporting up to 256 GB.

Specification

Camera
Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Slow Shutter Yes
DORI
Lens
Focal Length 5.9 mm to 147.5 mm
FOV Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)
Focus Auto,semi-auto,manual
Aperture Max. F1.5
Zoom SpeedApprox. 4.8 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 200 m
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power -off MemoryYes
Video
Main Stream 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR \> 52 dB
Defog Digital defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Speaker 1 built-in speaker with effective distance reaching max. 30 meters
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 2 inputs, 1 output
Reset Yes
Deep Learning Function
Face Capture Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection
General
Power
Dimension Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Approx. 5 kg (11.03 lb.)
Material ADC12
Operating Condition- 30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes

FAQ

Can this camera track targets automatically across large open areas?

Yes. The camera features built-in smart auto-tracking that automatically rotates, tilts, and zooms to follow moving human and vehicle targets once triggered by perimeter events or manual operator selection, maintaining focal clarity throughout the tracking path.
How does the built-in active deterrence system function?

When AcuSense algorithms detect a human or vehicle violating a configured rule (such as line crossing or perimeter intrusion), the camera can automatically activate a flashing white strobe light and broadcast audible warning prompts through its integrated speaker, which reaches up to 30 meters.
What power source is required to operate this speed dome?

The camera requires either a 24 VAC power supply (± 25%) or a Hi-PoE network connection. Maximum power consumption is 42 W when the 200-meter IR illuminators and internal heater are active. A dedicated Hi-PoE midspan injector or high-wattage PoE switch is required.
What mounting bracket is included in the package?

The camera comes standard with a Hikvision DS-1602ZJ wall mount bracket included in the box. If your installation requires ceiling pendant, pole, or corner mounting, compatible optional brackets such as the DS-1661ZJ, DS-1604ZJ-Pole, or DS-1604ZJ-Corner are available separately.
