By Hikvision

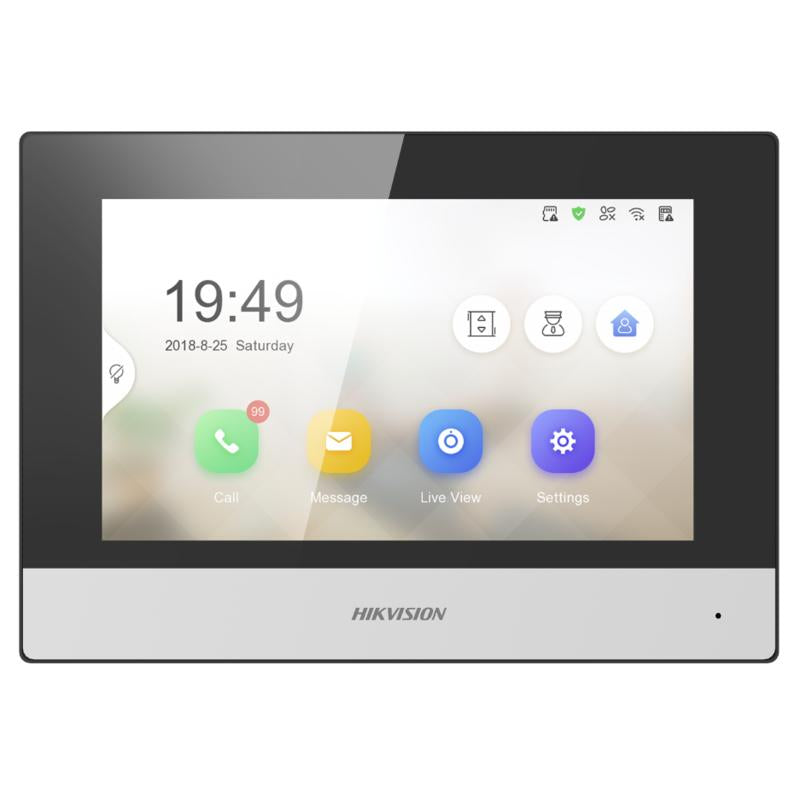

Hikvision DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station

100% Official Brand / Serial Number Verifiable / 3-Year Warranty

Bulk Quote
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
  • 7-Inch Capacitive Touchscreen
  • Standard PoE & 2.4 GHz Wi-Fi
  • Hik-Connect Mobile Integration
  • IP Video Intercom & CCTV Live View
  • PC-Free Quick Setup
  • Local Storage & 8-Zone Alarm I/O
Datasheet Link
View details

Details

Intuitive 7-Inch Touchscreen Control with Mobile Access

The DS-KH6320-WTE1 is an IP-based indoor video intercom station featuring a colorful 7-inch capacitive TFT touchscreen with 1024 × 600 resolution. Designed for modern residences and commercial offices, it enables seamless two-way audio and video communication with outdoor door stations. Integrated with the Hik-Connect mobile app, users can receive visitor calls, monitor live camera feeds, and unlock doors remotely from anywhere.

Comprehensive Security Integration and PC-Free Setup

Serving as a centralized indoor management hub, the station connects with up to 17 door stations, 16 indoor extensions, and 16 network cameras for real-time monitoring of entryways and perimeter areas. The device features an intuitive on-screen wizard that allows installers to configure the entire video intercom network directly on the touchscreen without requiring a PC or specialized software.

Flexible Connectivity, Audio Processing, and Local Storage

  • Dual Network Options: Connects via standard PoE (IEEE 802.3af) through an RJ-45 cable or wirelessly via 2.4 GHz Wi-Fi (802.11b/g/n) with 12 VDC power.
  • Crystal-Clear Two-Way Audio: Built-in omnidirectional microphone and high-output loudspeaker with hardware noise suppression and echo cancellation.
  • Local Snapshot Storage: On-board TF card slot supports microSD cards up to 128 GB to store visitor snapshots and alarm event logs.
  • Alarm & Access Relays: Equipped with 8 alarm inputs for physical security sensors and 2 relay outputs for elevator control or auxiliary automation.

Specification

FAQ

Can I receive calls and unlock the door from my smartphone when away from home?

Yes. The DS-KH6320-WTE1 supports the Hik-Connect app, allowing you to answer visitor calls, view live video from connected door stations, and unlock doors remotely over cellular or Wi-Fi networks.
How is the indoor station powered, and does it support Power over Ethernet (PoE)?

The station supports standard PoE (IEEE 802.3af) using a single Ethernet cable, as well as a 12 VDC power input (power consumption ≤ 5 W). Power supplies and PoE switches are sold separately.
Can this indoor station display live video feeds from my IP security cameras?

Yes. The station can link with up to 16 network IP cameras and 17 door stations, allowing you to view real-time video of common areas and perimeter gates directly on the 7-inch screen.
Is a computer required to set up and configure the video intercom system?

No. The DS-KH6320-WTE1 features a built-in setup wizard that allows you to configure the entire video intercom network, add extensions, and pair door stations directly on the touchscreen.
