By Dahua
Dahua DH-PFA130-E Junction Box
SKU: PFA130-E
Regular price
$23.00
Ships Same or Next Day
Over $99 Free Shipping
30-Day Returns
- Material: Aluminum
- Load: 3.0kg(6.61lb)
- Weight: 0.35kg(0.77lb)
- Size: Φ124mmx41mm(Φ4.88"x1.61")
- Color: White

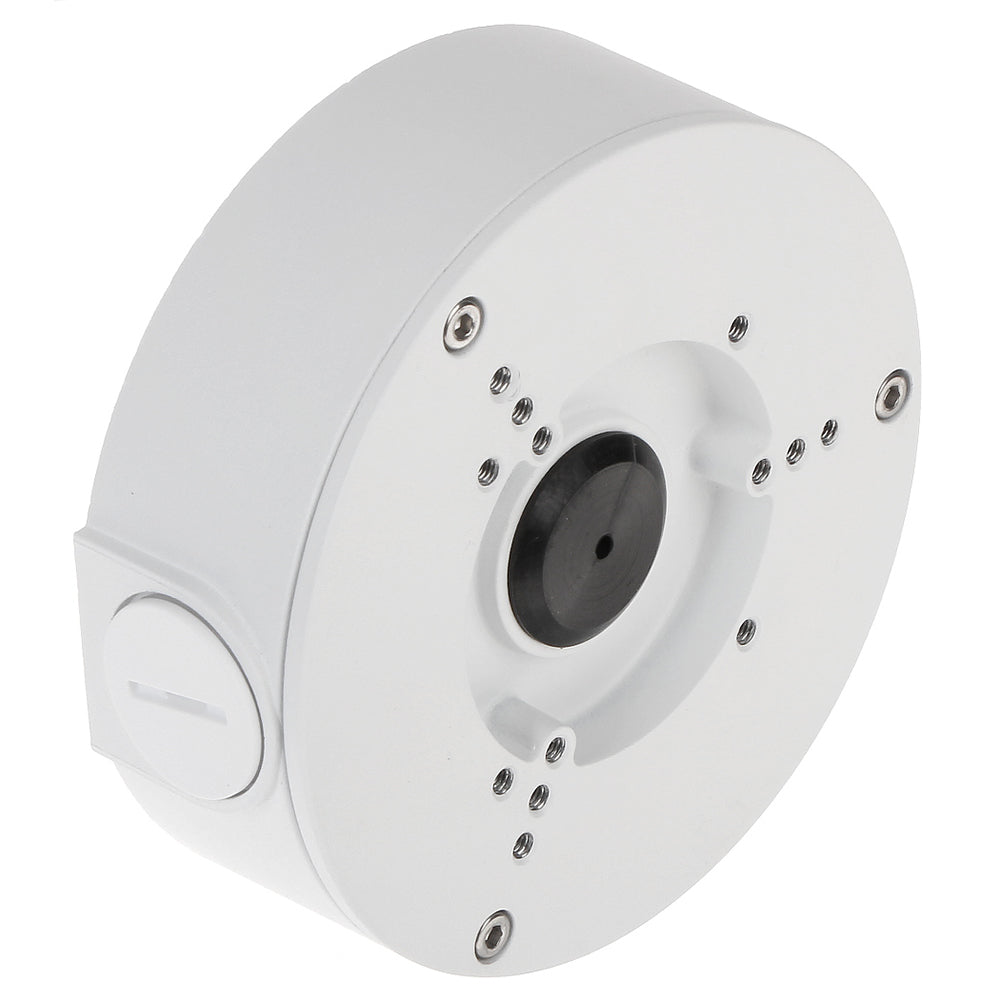

Dahua DH-PFA130-E Junction Box
Specification
Structure
| Casing Material | Aluminum alloy |

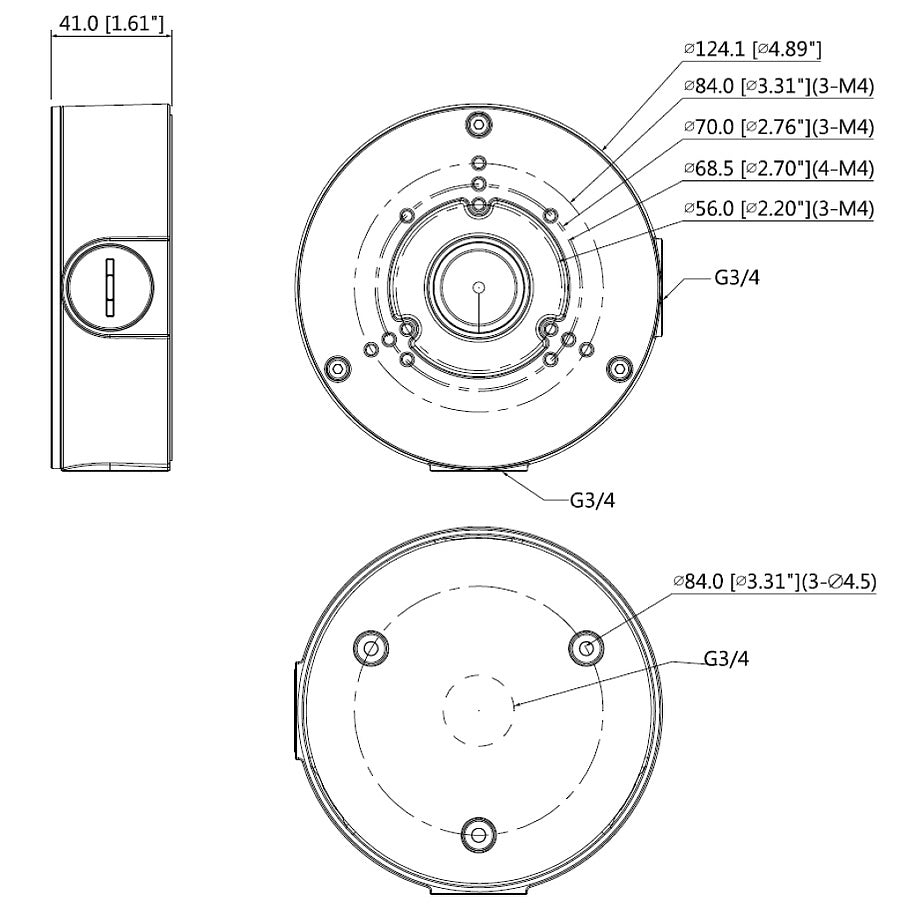

| Product Dimensions | Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61") |
| Appearance Color | White |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.40 kg (0.88 lb) |
| Load Bearing | 3.0 kg (6.61 lb) |

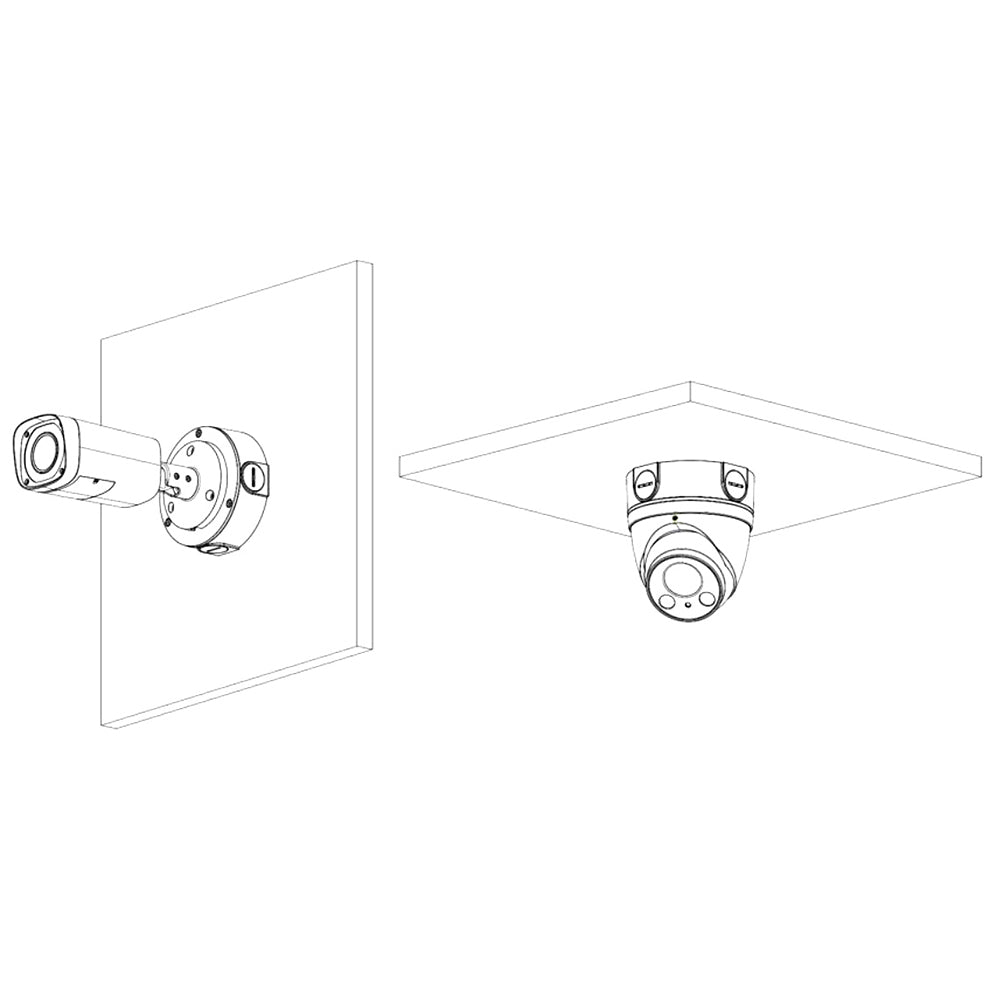

| Installation | Junction mount |
| Screw Thread Type | G3/4 |
| Applicable Model | Please see "Camera Accessories Selection" |
| Packaging Dimensions | 146 mm × 65 mm × 147 mm (5.75" × 2.56" × 5.79") (L × W × H) |
Environment
| Protection | IP66 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
| Anti-corrosion Level | Basic Protection |
